CUSHCRAFT HV-4E - Included Parts and Assemblies; Kits and Assemblies; HV-4 E Antenna List by Individual Parts

Cushcraft HV4E Vertical Antenna
Version 0 6  2024 Cushcraft

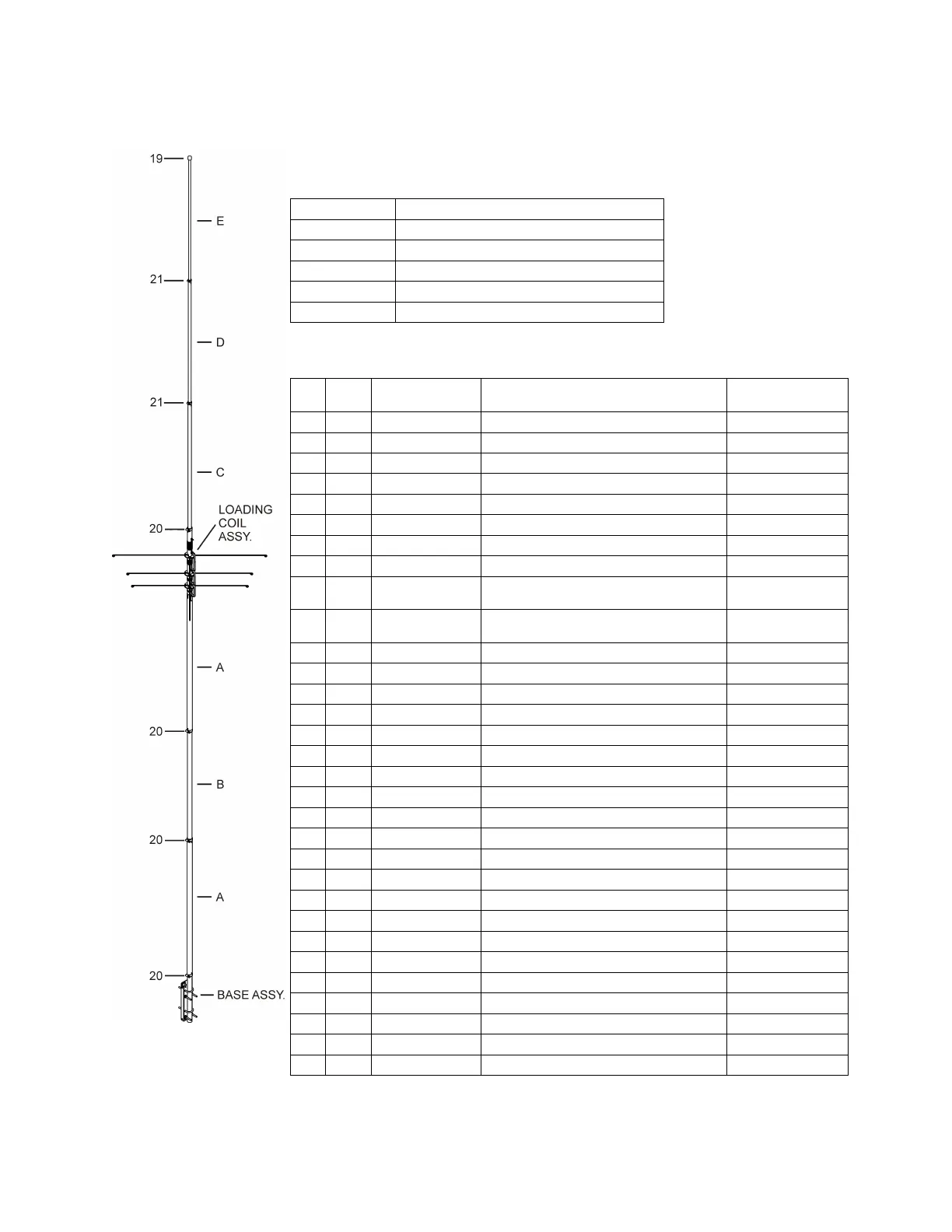

INCLUDED PARTS, KITS, AND ASSEMBLIES
Kits and Assemblies
HV-4E Main Package Masts
50-HV4E-LC Loading Coil Assembly
17-HV4E-LC Loading Coil Hardware Kit
17-HV4E-SP Loading Coil Spoke Kit
17-HV4E-MT Mounting Hardware Kit
17-HV4E-MP Antenna Mounting Plate Assembly
HV-4E Antenna List by Individual Parts
ID QTY Item No. Description
In Kit or
Assembly
R1 4 810-HV4E-8 8" Bent Radial 17-HV4E-SP
R2 4 810-HV4E-10 10" Bent Radial 17-HV4E-SP
R3 4 810-HV4E-14 14" Bent Radial 17-HV4E-SP
1 1 10-HV4E-LC Coil Form 20" L x 1" OD drilled 50-HV4E-LC
2 1 737-1796-1 Jumper Bracket 1 50-HV4E-LC
3 1 737-1796-2 Jumper Bracket 2 50-HV4E-LC
4 1 737-1796-3 Jumper Bracket 3 50-HV4E-LC
5 24 656-0375S 6-32x0.375 SS Screw 17-HV4E-LC
6 35 705-0632S-K 6-32 SS KEP Nuts
17-HV4E-LC &
50-HV4E-LC
7 11 656-1500S 6-32x1.5 SS screw
17-HV4E-LC &
50-HV4E-LC
8 1 711-0627S #6 Internal Tooth SS Lock Washer 17-HV4E-LC
9 6 745-3109 4 Spoke Radial Clamp Bracket 50-HV4E-LC
10 1 735-HV4E-BA HV-4E Antenna Mounting Plate 17-HV4E-MP
11 1 811-HV4E Fiberglass Base Section 16" long Main Package
12 4 010401 U-Bolt 17-HV4E-MT
13 8 010104 Flat Washers 17-HV4E-MT
14 8 010084 Split Ring Lock Washers 17-HV4E-MT
15 8 010085 1/4-20 SS Nut 17-HV4E-MT
16 1 610-2001T Coax Connector 17-HV4E-MP
17 2 654-0500S 4-40x1/2 SS Screw 17-HV4E-MP
18 2 705-0440S-K 4-40 KEP NUT 17-HV4E-MP
19 1 050053 1/2 Plastic End Cap 17-HV4E-LC
20 5 30411 Hose Clamps 1.25 #12 17-HV4E-MT
21 2 30409 Hose Clamps 0.875 #6 17-HV4E-MT
A 2 810-HV4E-A Mast Section A 36" long Main Package
B 1 810-HV4E-B Mast Section B 36" long Main Package
C 1 810-HV4E-C Mast Section C 36" long Main Package
D 1 810-HV4E-D Mast Section D 36" long Main Package
E 1 810-HV4E-E Mast Section E 36" long Main Package
8 720-3067 #6 Solder Lug 50-HV4E-LC
24 ft 874-1611 16 AWG GP/MR-200 Magnet Wire 50-HV4E-LC
