Cushcraft HV4E Vertical Antenna
Version 0 9 2024 Cushcraft
Base Assembly

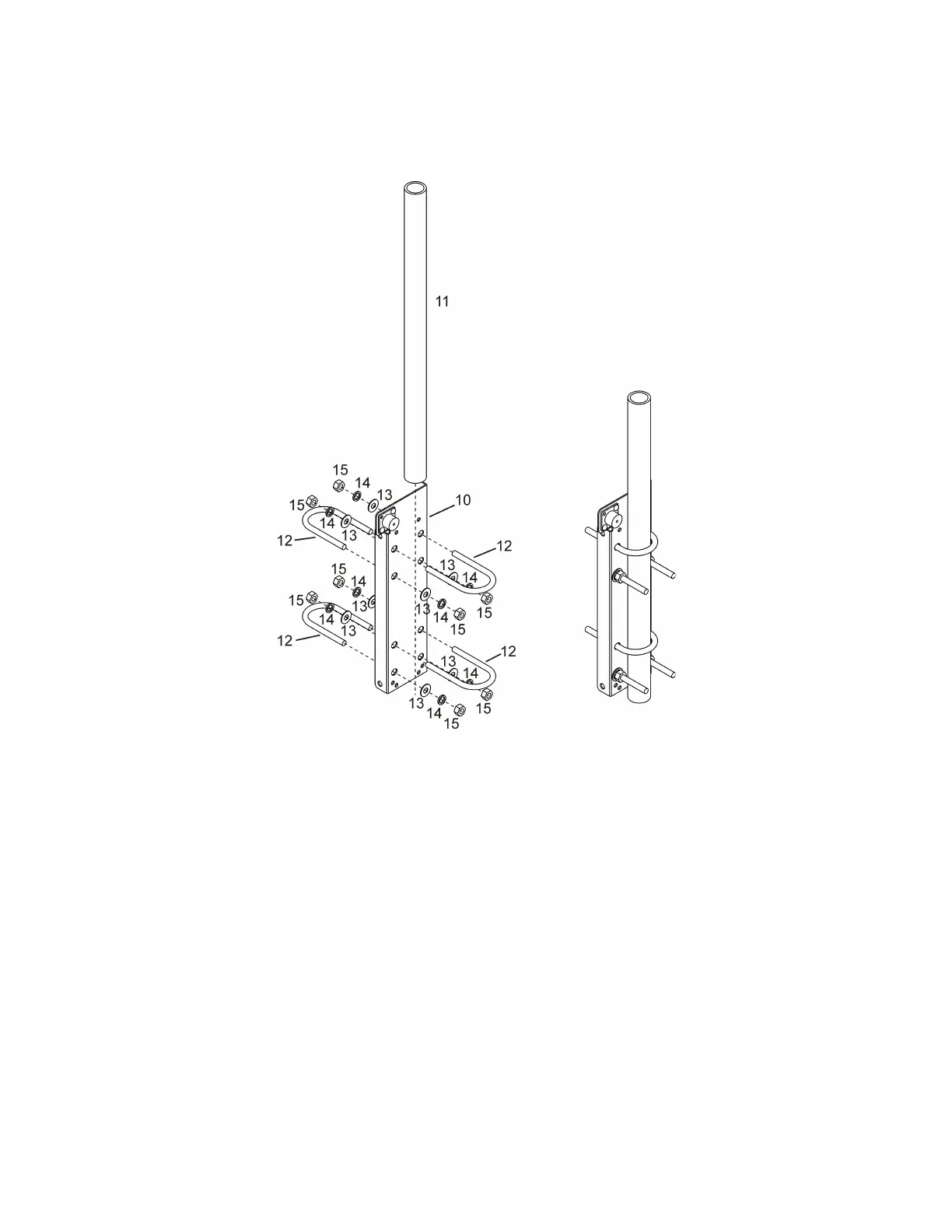

Assemble the base using the Base Plate (10), four U-Bolts (12), eight ¼” flat washers (13), eight ¼” lock
washers (14), and eight ¼-20 nuts. Loosely attach the U-Bolts then slide the fiberglass base insulator
(11) into the U-Bolts as shown in the picture and tighten up the U-Bolts holding the fiberglass base
insulator.
