BATTERIES AND CHARGING
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
wait a few seconds and observe ammeter on charger to
make sure it moves indicating that charger is charging.

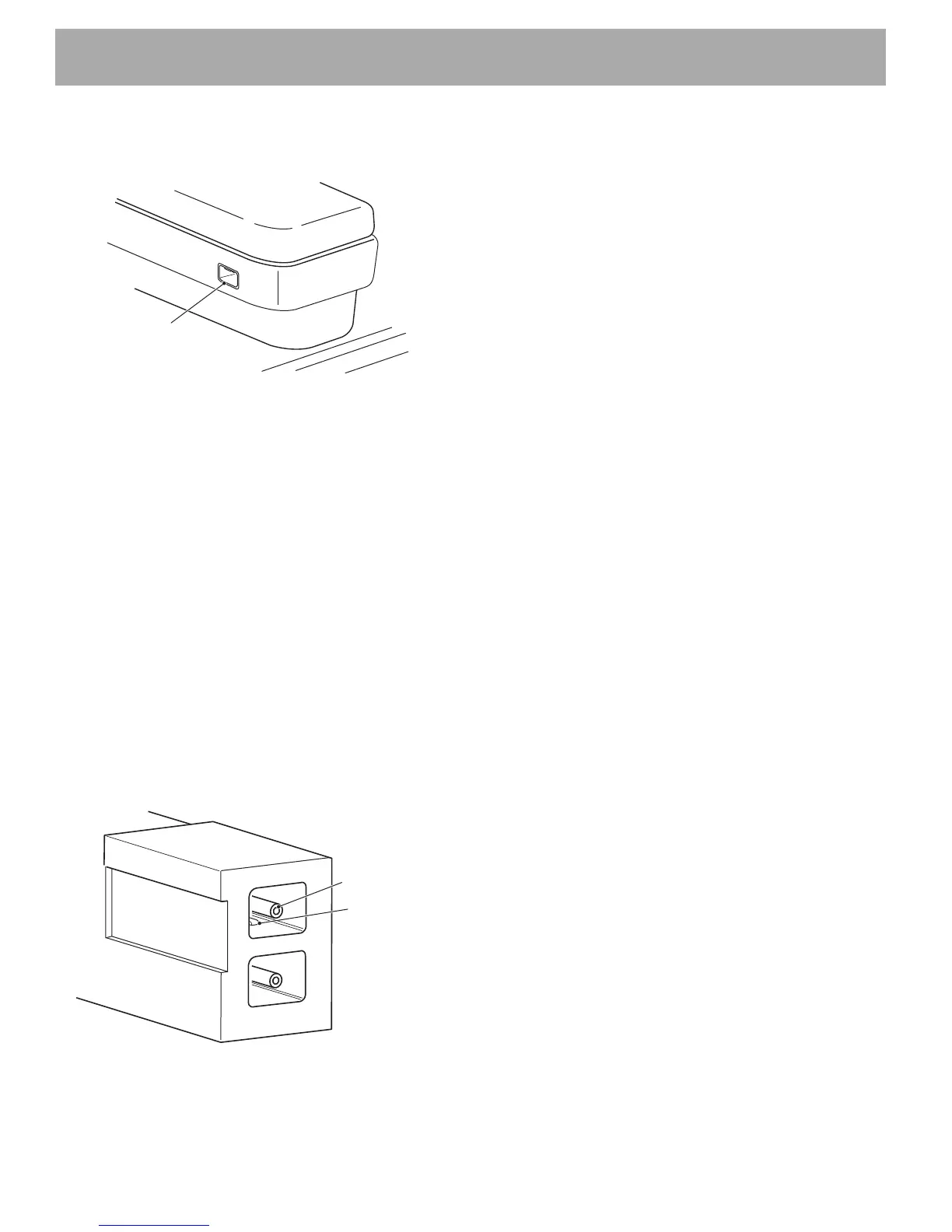

Fig. 10 Polarized Receptacle
The charger will automatically start a few seconds after
plug insertion. The charger will automatically stop when
batteries are fully charged and the DC plug can be
removed to permit use of the vehicle.
The charger may remain plugged into the AC outlet. To
charge the vehicle, refer to the instruction label on char-
ger.
Charger Maintenance
The charging (DC) cord is equipped with a polarized
connector which fits into a matching receptacle on the
vehicle (Ref. Fig. 11). The power (AC) cord is equipped
with an appropriate plug. If the charger is equipped with
a grounding plug, do not attempt to remove or bend the
ground plug. The only maintenance required for the
charger is the periodic cleaning of the DC connector
auxiliary contact.
Fig. 11 Charger Plug
.
Main Contact
Auxiliary Contact
