Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

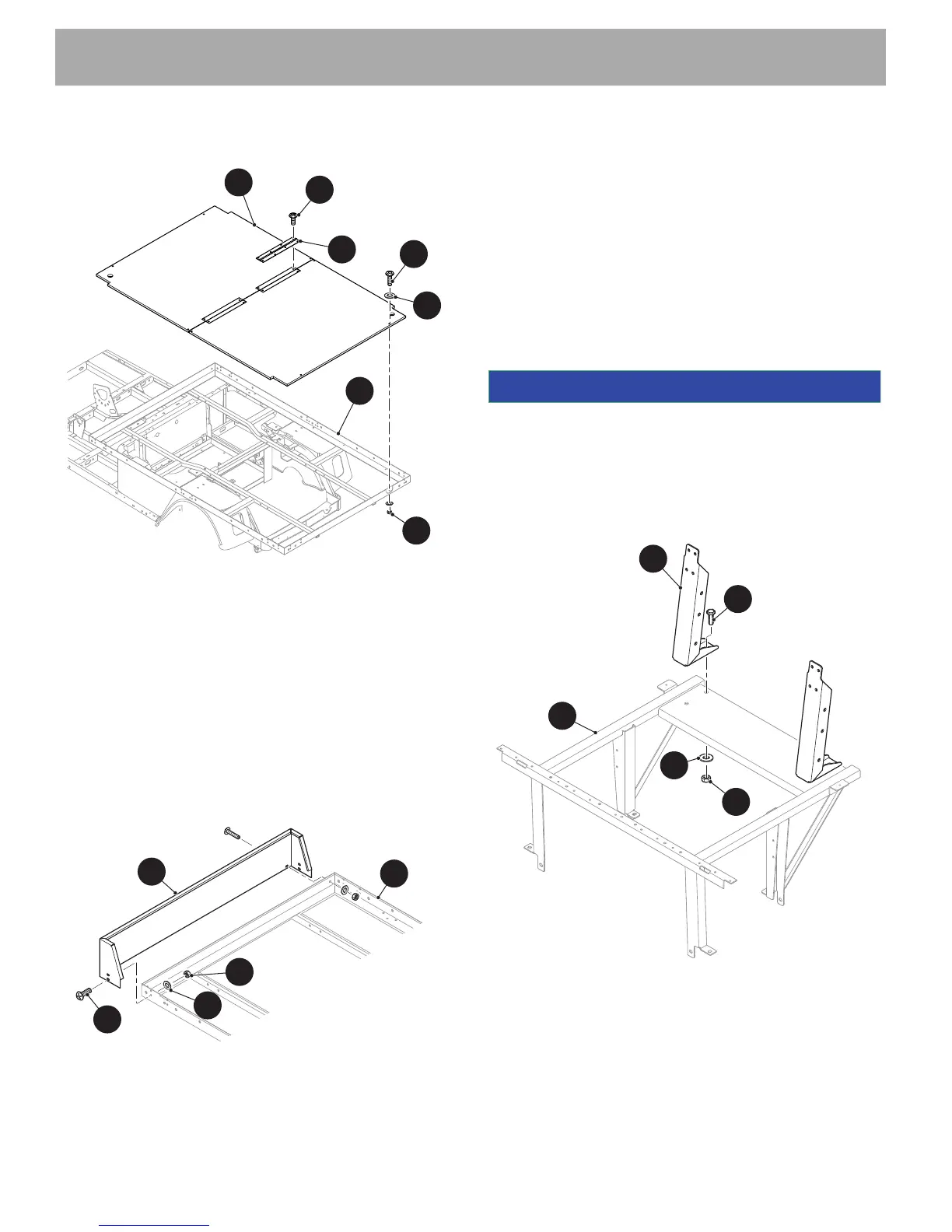

Fig. 10 Load Deck Removal
B
ulkhead Removal
Tool List Qty.
Torque Wrench, ft. lbs.................................................. 1
Ratchet, 3/8" Drive ...................................................... 1
Socket, 7/16" ............................................................... 1
Wrench, 7/16’ .............................................................. 1
Remove the four screws, washers and lock nuts (1, 2 & 3)
securing the bulkhead (4) to the load bed frame (5) (Ref.
Fig. 11).
Fig. 11 Bulkhead Removal
Reassembly is the reverse of disassembly.
Nuts (3) securing the bulkhead (4) to the bed frame (5)
are to be tightened to 8.5 - 9.0 ft. lbs. (11.5 - 12.2 Nm)
torque. It is recommended that new lock nuts be used.
Seat Back Removal
Tool List Qty.
Torque Wrench, ft. lbs ..................................................1
Ratchet ........................................................................1
Socket, 1/2"..................................................................1
Wrench, 1/2" ................................................................1
It is not necessary to remove the seat back from the seat back
support brackets
Remove the four bolts, washers and lock nuts (1, 2 & 3)
and remove seat back assembly (4) from the Seat frame
weldment (5) (Ref. Fig. 12).
Fig. 12 Seat Back Removal
Reassembly is the reverse of disassembly. Nuts (3) are to
be tightened to 21 - 25 ft. lbs. (28.5 - 34.0 Nm) torque. It is
recommended that new lock nuts be used.
