Page F-6
Repair and Service Manual
B
ELECTRONIC SPEED CONTROL
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
If the continuity test indicates that contacts are not
“welded” and the wiring to the solenoid coil is good, the
coil has failed and the solenoid must be replaced.

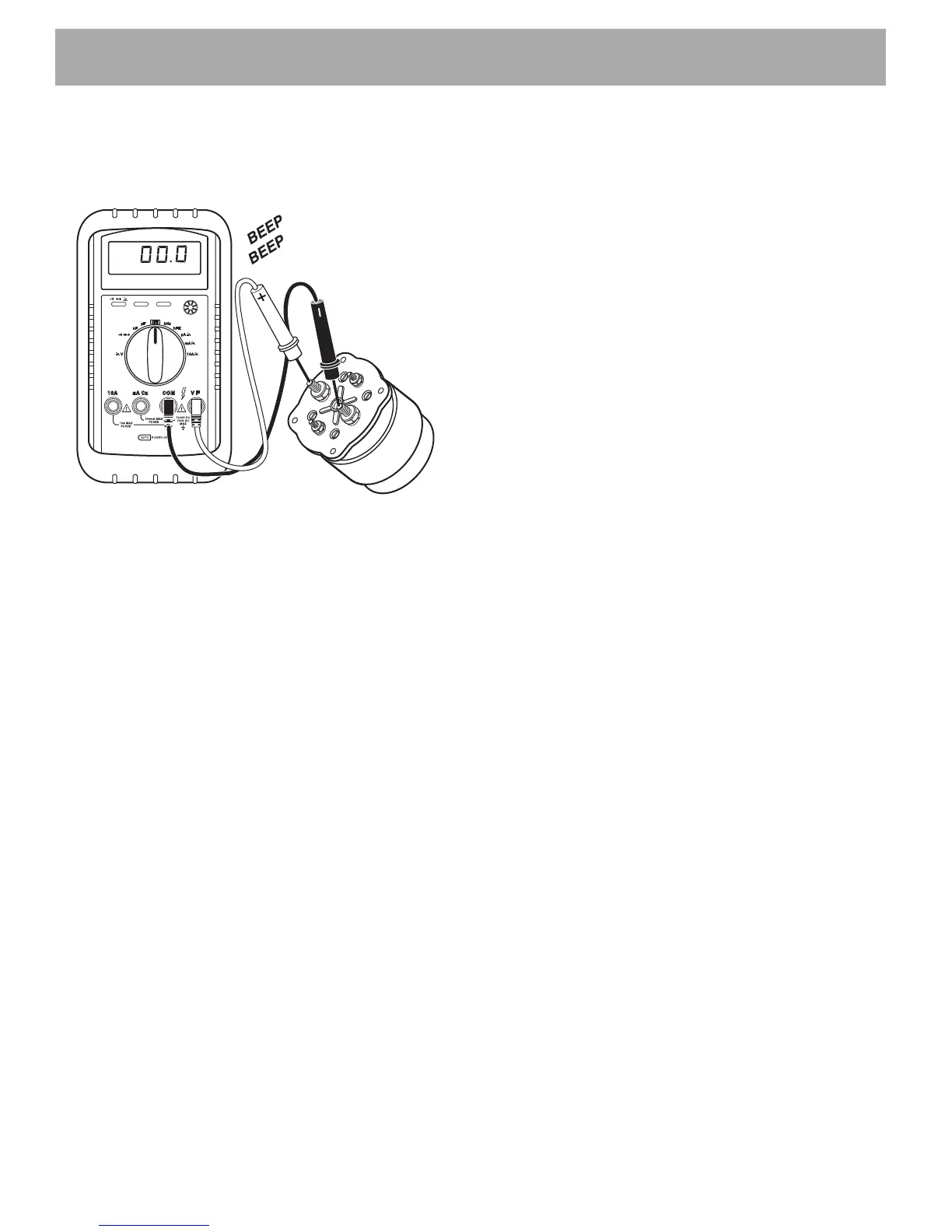

Fig. 7 Continuity Check of Solenoid
TROUBLESHOOTING DIAGRAMS
The following diagrams will assist in servicing the vehi-
cle. By utilizing the Fault Codes, considerable time will
be saved in determining the probable vehicle operating
malfunction. The vehicle power and control wiring dia-
gram is included for your convenience in tracing the
electrical wiring (Ref Fig. 10). The following 6 flow charts
will assist in diagnosing and correcting problems not
diagnosed through the Fault Codes.
