Cushman Shuttle 4 - Page 90

Page F-16
Repair and Service Manual
B
ELECTRONIC SPEED CONTROL
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

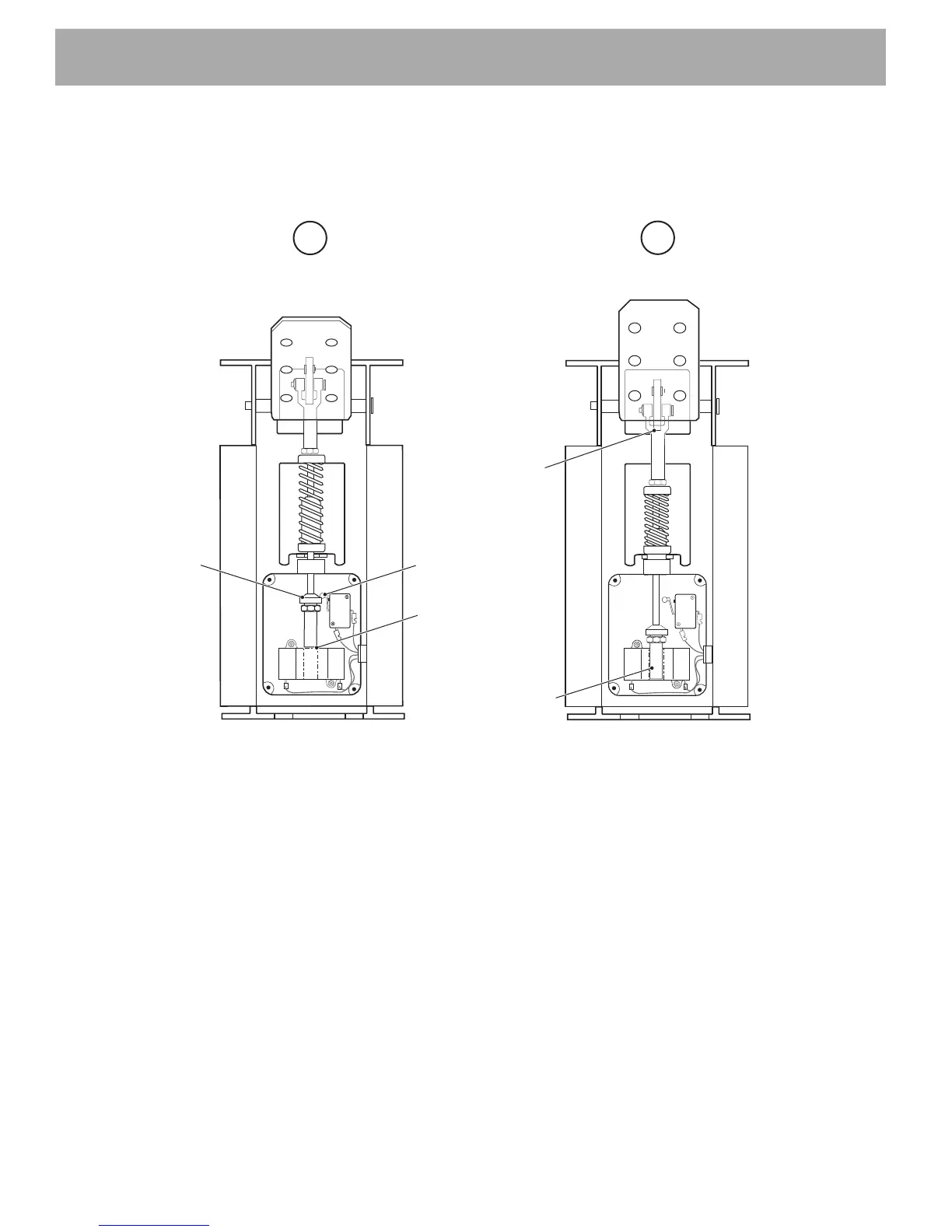

Fig. 17 ITS Adjustment (Sheet 2 of 2)
Micro switch
activated
Plunger enters 'ITS'
Plunger fully
activated
Pedal bracket
rests on rear
of pedal frame
opening
3
4
SOLENOID ACTIVATED
PEDAL ALL THE WAY DOWN
With pedal all the way down:
Plunger should be flush with
or extend beyond rear of 'ITS'
No Adjustment Here
1.0 ± 0.3 volts
2.7
± 0.5 volts
Cam
