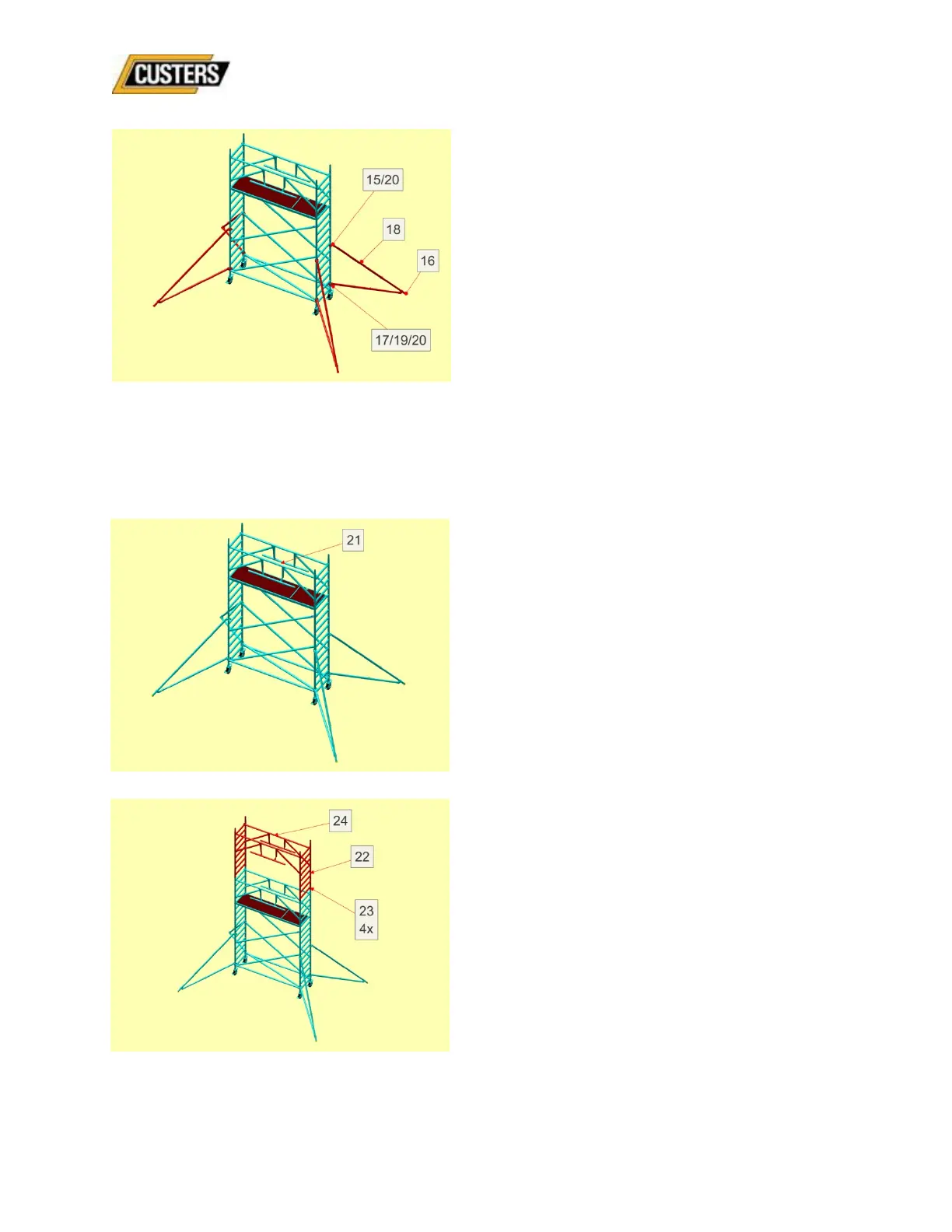

Fig.56
Now place the four (large or small)
outriggers:
15: Place the upper coupler under the 6
th
or
7
th
rung at the small leg, 9
th
or 10
th
rung at the large leg;
16: Put the foot on the ground with
observance of the designated basic
form (see 4.4);
17: Make sure that the lower coupler falls
between two rungs;
18: Rotate the leg in such a way that the
designated basic form (see 4.4) is
maintained;
19: Tighten the lower coupler by hand on
the upright and slide the coupler
upwards over the upright so that the
leg is slightly tensioned;
20: Slightly tighten both couplers;
Fig.57
21: Climb to the 3m. level through the
hatch;
Fig.58
22: Place both 8-rung frames;
23: Place locking pins between the
frames themselves;
24: Place two Safe Guard guardrail frames
on the upper rung and click the
diagonal ledgers in place on the 5
th
rung of the frame in question;
