4 INSTALLATION
4.1 “EASYLOCK” fastening
thickness from a minimum of 3 mm and a maximum of 8 mm and requires no tools.
Insert the device
inside the panel.
ATTENTION:
Prepare the hole in the panel correctly as
shown in the figure in order to avoid defor-
mation and torsion of the device which
could compromise its operation.

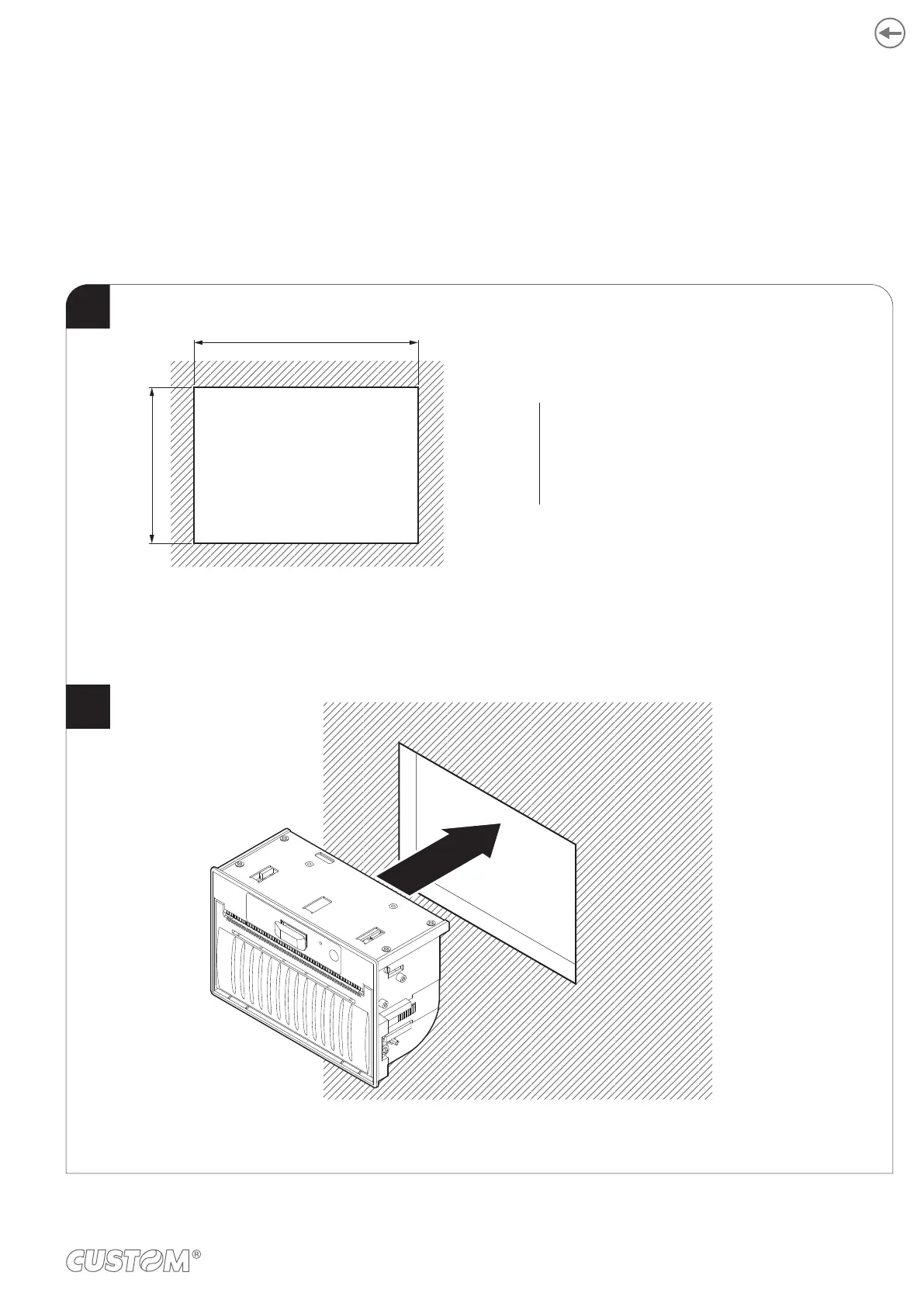

Make a panel cutting for the device housing
with the measurements shown in the figure.
145 -0.5
+0.5
94.3 -0.5
+0.5
1
2
21
