OPERA
TION
5.1

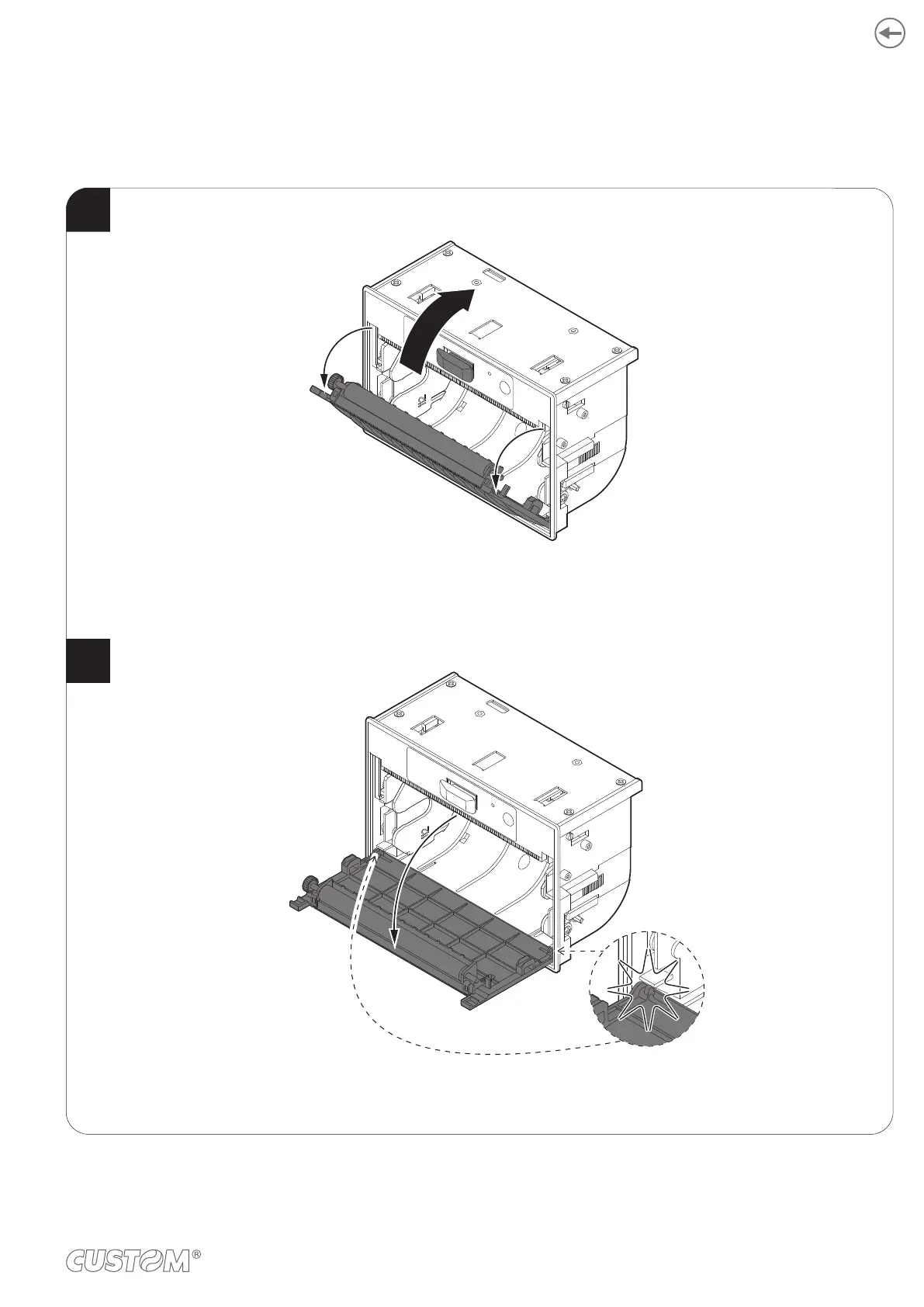

Opening device cover
Lift the release lever
to unlock the front cover
.
Completely open the front cover
to the maximum opening position.
1
2
39
38
40
Table of Contents
1 INTRODUCTION
9
2 IDENTIFICATION OF THE MODELS
11
3 DESCRIPTION
13
3.1 Unpacking the device
13
3.2 Device component: external views
14
3.3 Device component: internal view
16
3.4 Product label
17
3.5 Key functions
18
3.6 Status messages
19
4 INSTALLATION
21
4.1 “EASYLOCK” fastening
21
4.2 Connections
24
4.3 Pinout
26
4.4 Serial port setting (PLUS4 STD)
31
4.5 Parallel port setting (PLUS4 9-42 V)
33
4.6 Driver and SDK
37
5 OPERATION
39
5.1 Opening device cover
39
5.2 Adjusting paper width
40
5.3 Paper roll insertion
43
6 CONFIGURATION
45
6.1 Configuration by keys
45
6.2 Configuration by software
47
6.3 Printhead status
49
6.4 Printer status
50
6.5 Communication parameters
51
6.6 Operation parameters
53
6.7 Hexadecimal dump
55
7 MAINTENANCE
57
7.1 Planning of cleaning operations
57
7.2 Cleaning
58
7.3 Firmware upgrade
61
8 SPECIFICATIONS
63
8.1 Hardware specifications
63
8.2 Character specifications
66
8.3 Device dimensions
67
8.4 Dimensions of power supply and power supply cables (optional)
69
8.5 Character sets in CUSTOM/POS emulation
71
9 CONSUMABLES
73
10 ACCESSORIES
75
11 TECHNICAL SERVICE
77
