111313
14142525

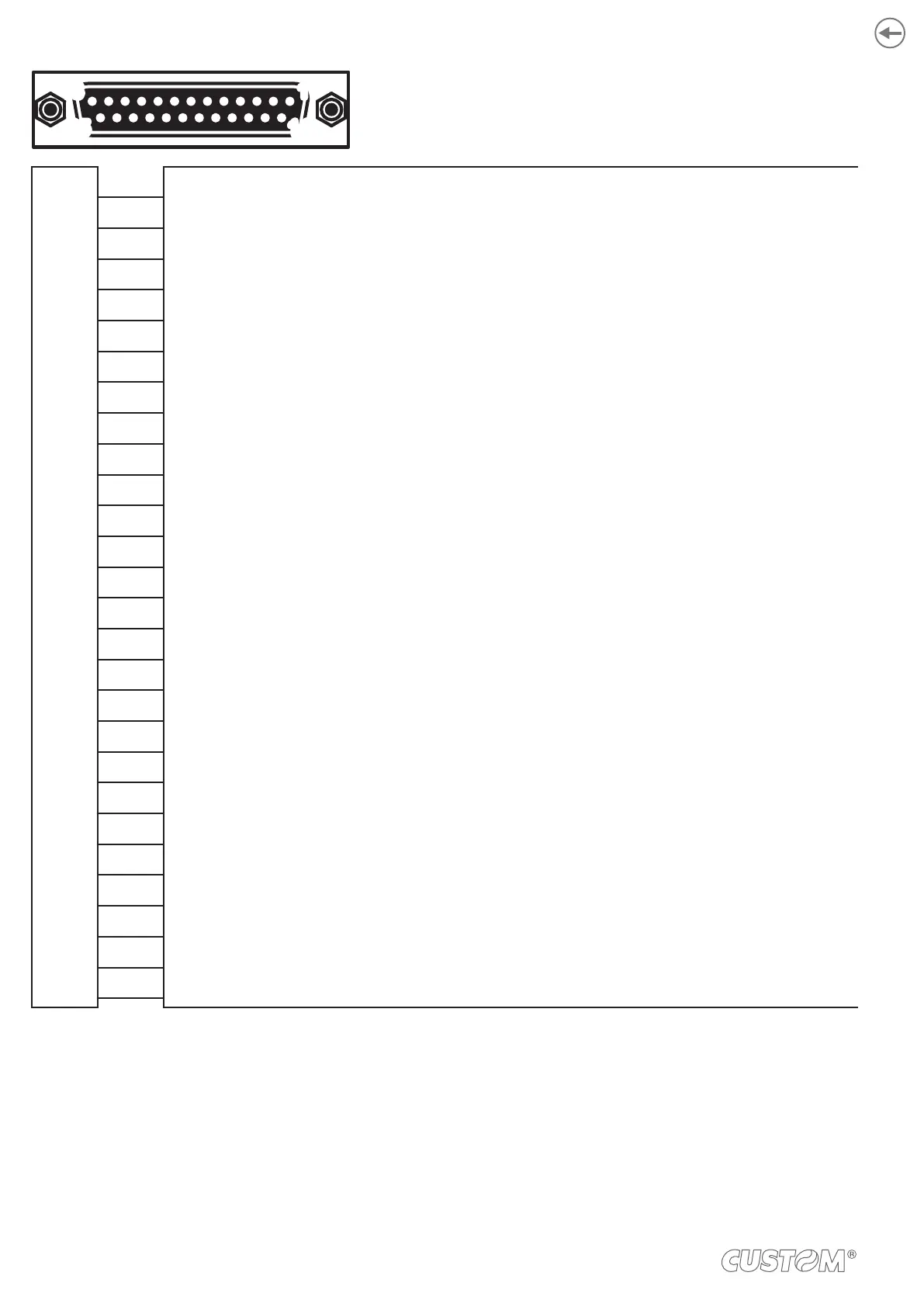

PARALLEL CENTRONICS/TTL INTERFACE
DB25 female connector
J7
1 STROBE (in)
2 AD0 (in)
3 AD1 (in)
4 AD2 (in)
5 AD3 (in)
6 AD4 (in)
7 AD5 (in)
8 AD6 (in)
9 AD7 (in)
10 ACK (out)
11 BUSY (out)
12 PAP-END (out)
13 SELECT (out)
14 n.c.
15 ERROR (out)
16 n.c.
17 GND
18 n.c.
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
SH1 GND
SH2 GND
30
