11.0 CABLE SPECIFCATIONS

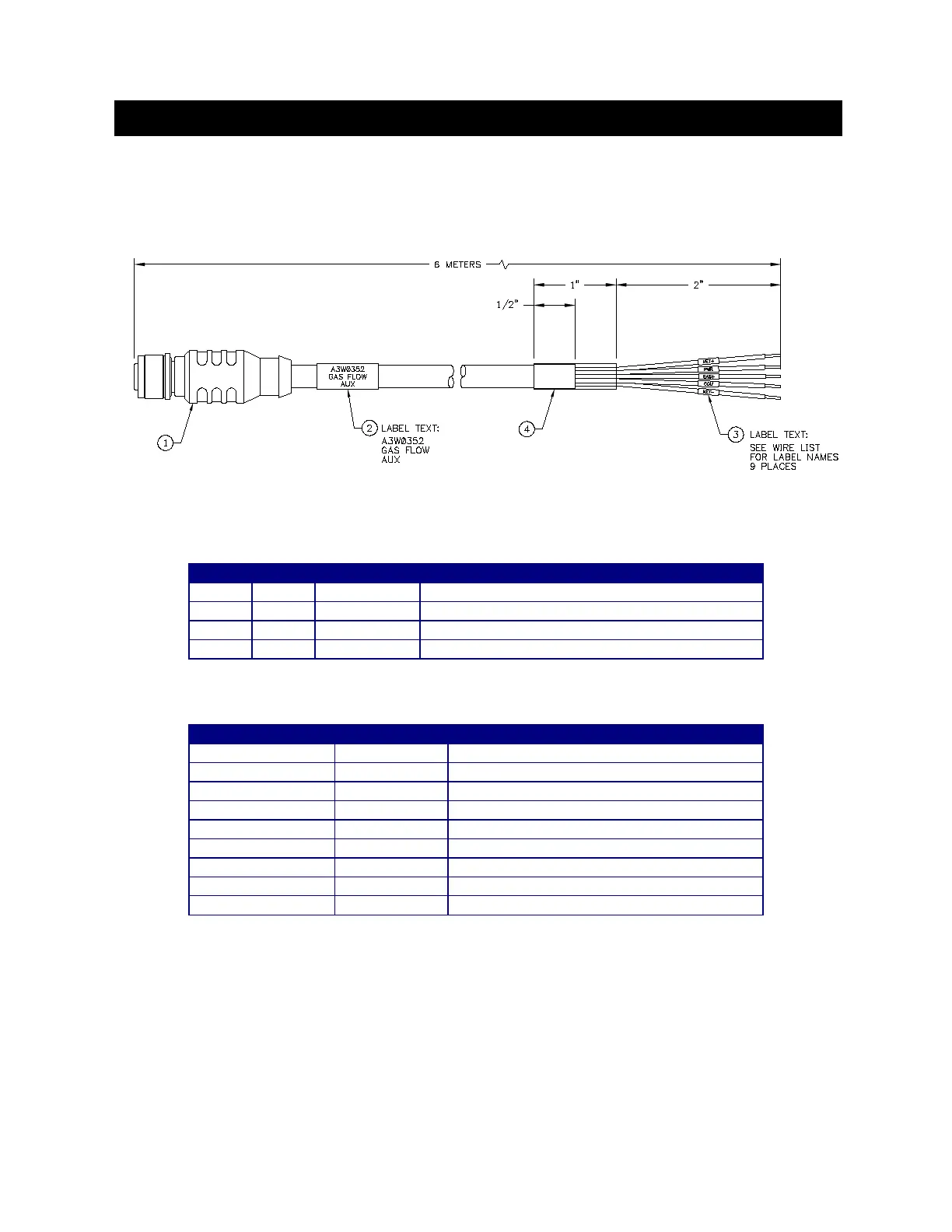

11.1 GFM Aux Cable P/N: A3W0352
ITEM
QTY
PART NO
DESCRIPTION
1
1
X3W5118
8 Conductor Shielded Cable
2
1
Cable Label Sleeve
3
9
Wire Label Sleeve
4
1
Heat Shrink Tubing
WIRE COLOR
FROM
DESCRIPTION
White
Pin 1
Net+
Brown
Pin 2
Power In (12 – 28 VDC)
Green
Pin 3
Relay CR-A
Yellow
Pin 4
Relay CR-B
Grey
Pin 5
Power Common
Pink
Pin 6
Sensor Vout common
Blue
Pin 7
Net-
Red
Pin 8
Sensor Vout+ (0 – 2.55 VDC)
Shield
Conn Ring
Earth
