CWT GFM A0A0161 - Adm III Gfm Sensor Cable P;N: A3 W0356

27

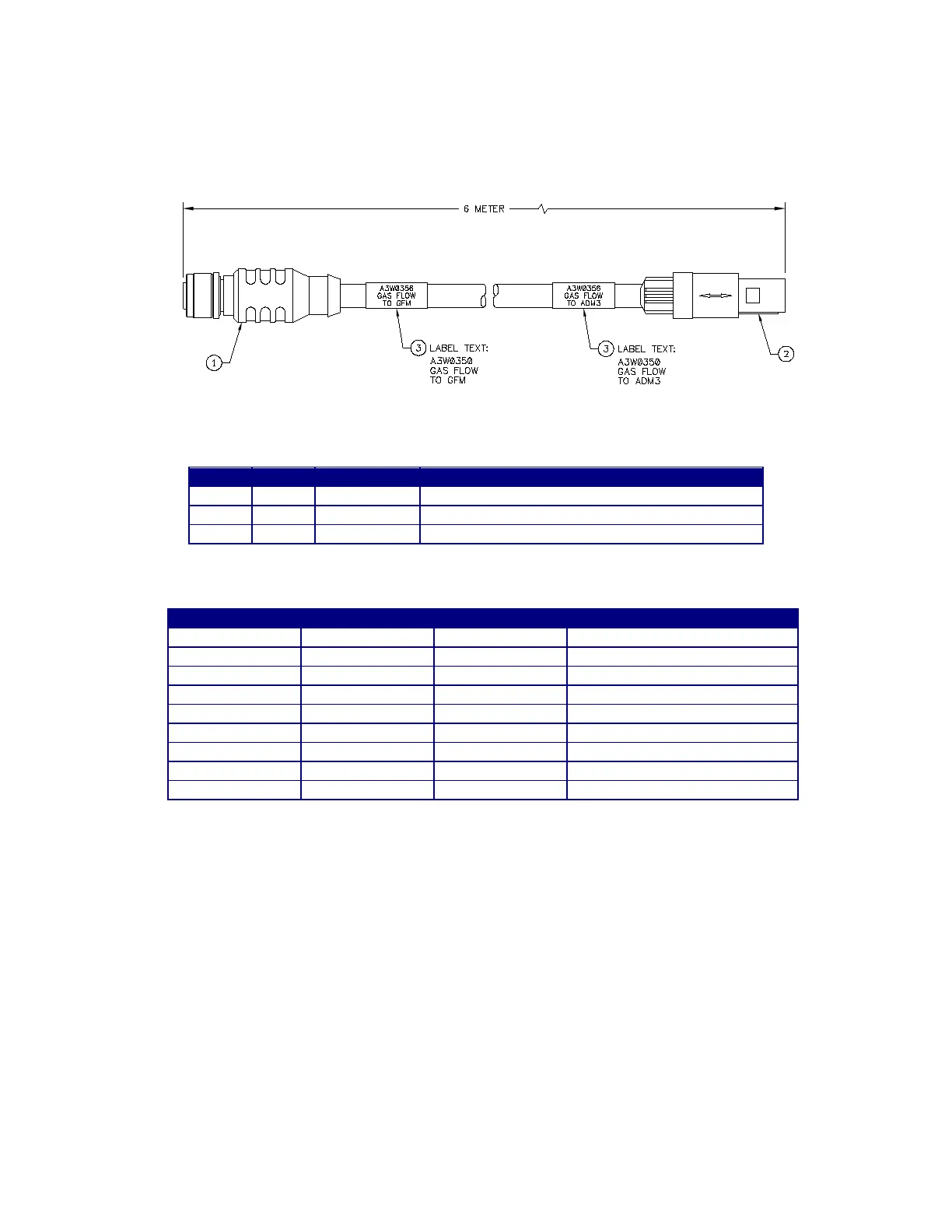

11.2 ADM III GFM Sensor Cable P/N: A3W0356
ITEM
QTY
PART NO
DESCRIPTION
1
1
X3W5118
8 Conductor Shielded Cable
2
1
X3P5459
Plug 5 Circuit Connector
3
2
Cable Label Sleeve
WIRE COLOR
FROM
TO
DESCRIPTION
White
Item 1 Pin 1
Not Connected
Net+
Brown
Item 1 Pin 2
Item 2 Pin 1
Power In (12 – 28 VDC)
Green
Item 1 Pin 3
Not Connected
Relay CR-A
Yellow
Item 1 Pin 4
Not Connected
Relay CR-B
Grey
Item 1 Pin 5
Item 2 Pin 4
Power Common
Pink
Item 1 Pin 6
Item 2 Pin 3
Sensor Vout common
Blue
Item 1 Pin 7
Not Connected
Net-
Red
Item 1 Pin 8
Item 2 Pin 2
Sensor Vout+ (0 – 2.55 VDC)
Shield
Conn Ring
Item 2 Pin 5
Earth
