CYBELEC CybTouch 8 - Tools Management; Punch Management

18/38
Sept.
2014
V3.1

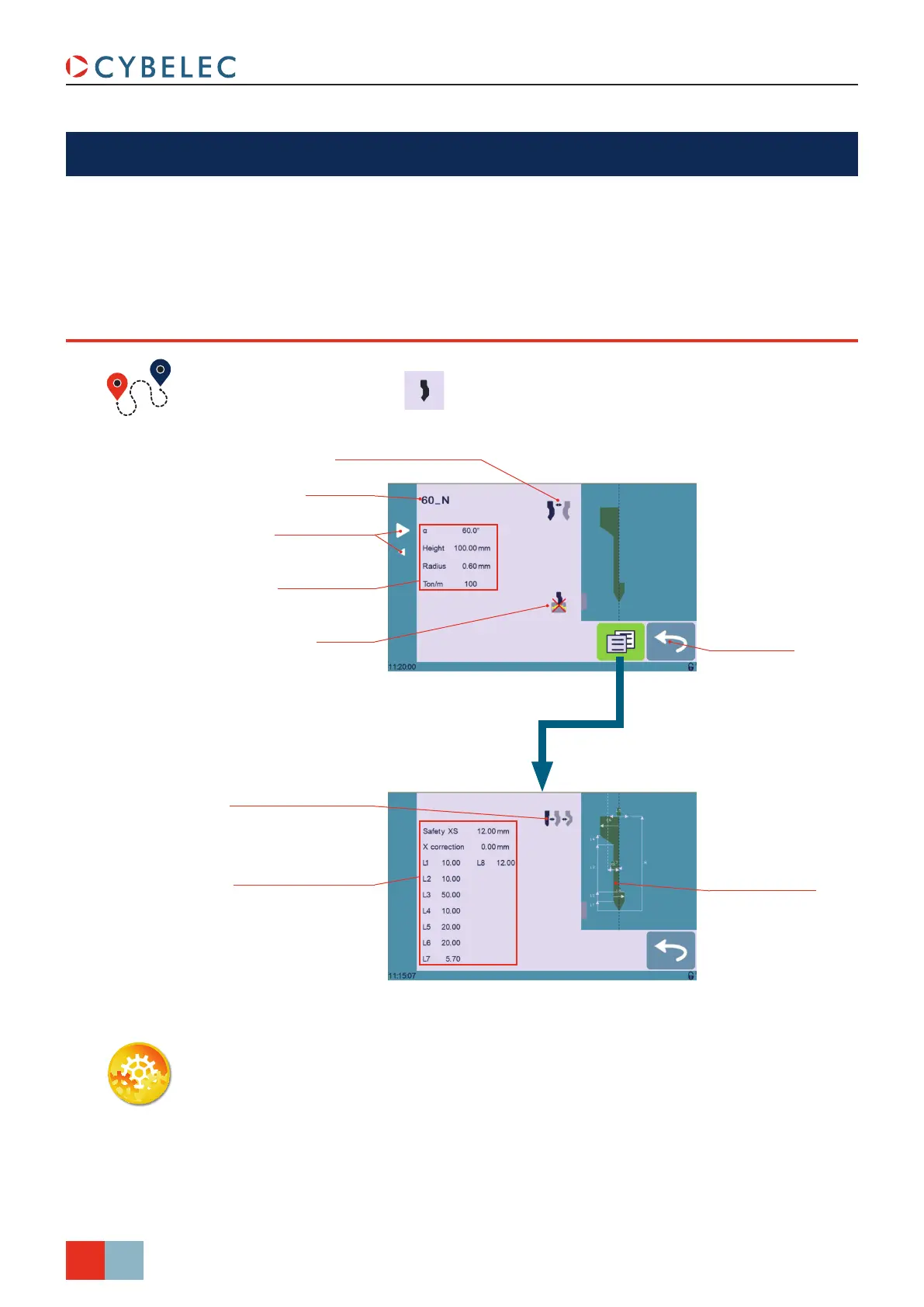

Punch mounting direction
Return to Bend
Numerical Page
Bottoming
Basic shapes of the punch
Basic punch data
Punch more specic data
Browsing through
existing punches
Punch name
Touch the punch to
display its default shape,
allowing an easier
identication of the
various dimensions
CybTouch 8 PS User Manual
toolS ManaGeMent
Tools management allows the creation and configuration on the CybTouch of the tools to
be used on the machine. These tools are then taken into account in bend calculations.
Once a punch and die are created and selected, you can select the bend angle you require
as well as the flange length (L). The CybTouch then calculates the positions for axes X and
Y for the bend.
puncheS
Bend Numerical Page →
Setting inStructionS:
To select a punch, simply browse through the existing punches in your library using the
arrows buttons, and then return to Bend Numerical Page.
