To L-Alpha Mode
To Manual Bend
Sequencing
Zoom button
Program number
Program number
Tools selection
Material and thickness
CybTouch 8 PS User Manual

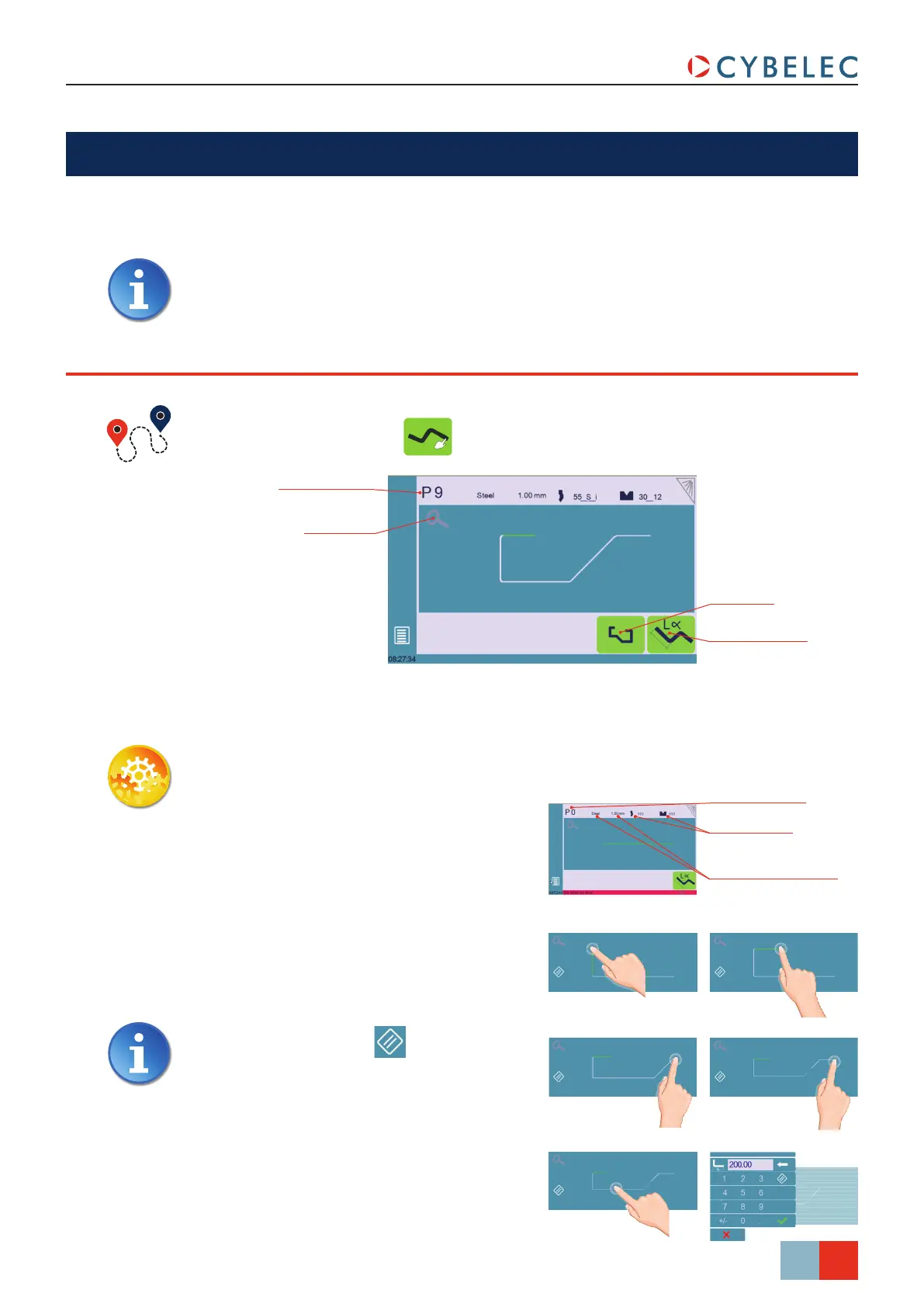

Touchprofile Mode (opTional)
CreatinG a Part ProGraM
There are three ways to create a program part: with the TouchProfile Mode (optional), with
the Numerical Mode (see page 26), and with the L-Alpha Mode (see page 27).
Bend Numerical Page →
In this mode, the operator can very intuitively draw a profile directly on the screen.
Setting inStructionS:
1. Touch the program number and select
New program in the list.
2. First select the material, its thickness
and the tools to be used for the part by
touching their respective icons.
3. Draw the profile by touching the
screen where you want to add a
segment.
Touching this icon allows erasing
the last segment added.
4. Touch on the middle of a segment to
modify its value.
In this chapter the machine is considered operational: machine parameters,
tools (see Tools Management, page 18), materials (see Materials, page 7),
etc. are already configured and programmed.
