Delete all bends

Delete last bend

CybTouch 8 PS User Manual

6. Should it prove difficult to select

a particular segment or angle, it

is possible to zoom on an area by

touching this button and then on

the desired zone.

One can also choose to enter the

length and angle values in the L-Alpha

Mode page by pressing this

button.

7. Once all the segments and angles are

adjusted, press this button

access the Manual Bend Sequencing

(see page 24).

Activate/deactivate zoom

Toggle zoom in/zoom out

Manual bend SequencinG

Once the shape of the part has been defined, the bending sequence for the part must be

determined.

Bend Numerical Page → →

Setting inStructionS:

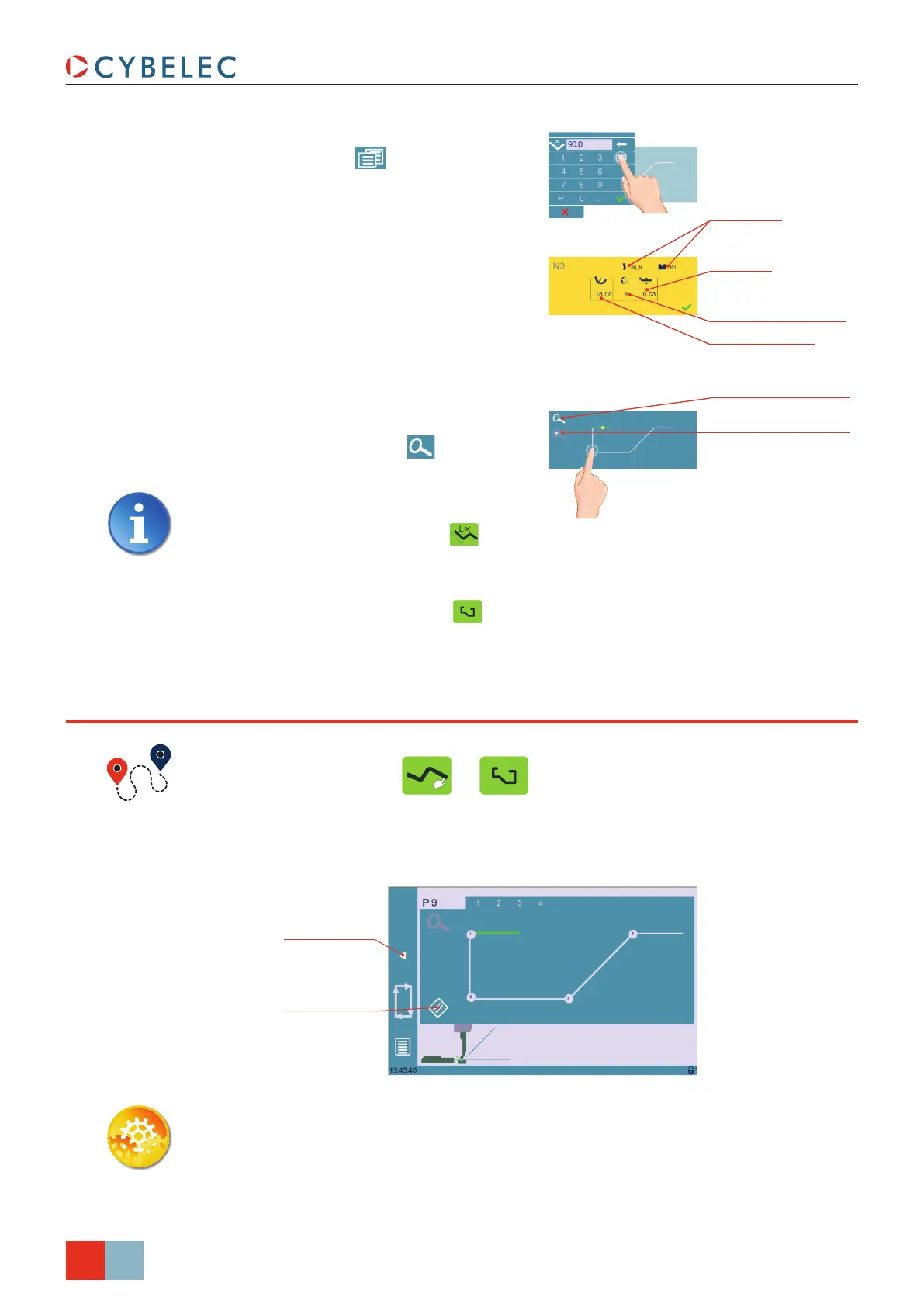

1. Simply touch the bend in the order that you want them performed. A small number is

displayed on the bend, indicating its position in the sequence.

5. Touch on an angle to modify its value.

Touching the

icon will open a

yellow pop-up, in which it possible to:

• Activate (and deactivate) a special

tool by touching its icon, and select

it from a list by pressing ???.

• Change the value of the radius (see

also Step bending, page 16) and

define how many steps the NC will

make to execute it.

Maximum distance to

ideal curve

Special tools

Number of steps to

execute the step bending

Large radius value
