HARDWARE INSTALLATION
These versatile Step-Down Transformers can be mounted in a rackmount
or vertical tower orientation. This versatility is especially important to
growing organizations with changing needs that value having the option
to position a Step-Down Transformer on a floor or in a rackmount system.
Please follow the instructions below for the respective mounting methods.
SAFETY PRECAUTIONS
CAUTION! To prevent the risk of fire or electric shock, only use the
supplied hardware to attach the mounting brackets.
RACKMOUNT INSTALLATION

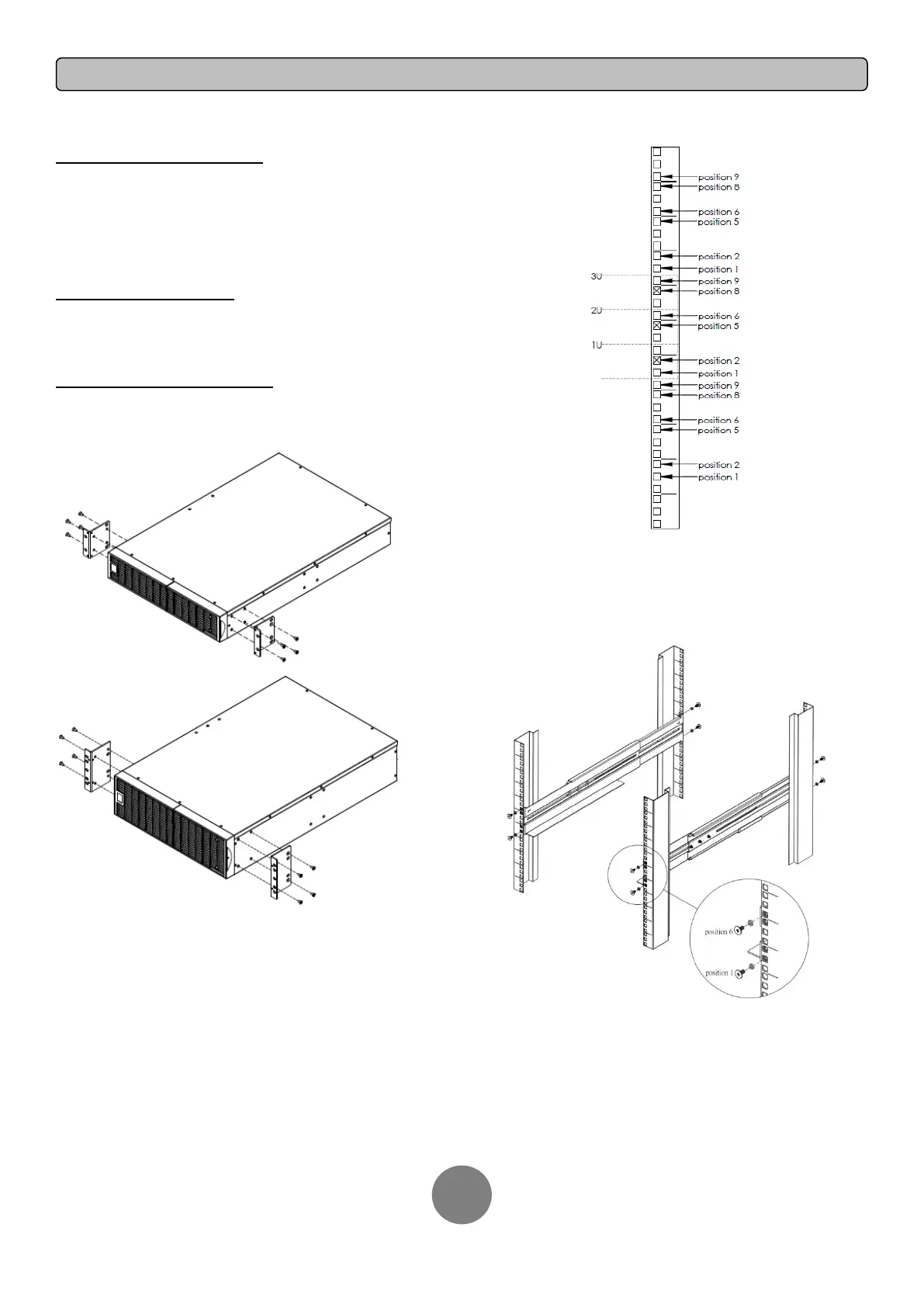

Step 1: Rackmount ears installation
Attach the two rackmount ears to the Step-Down Transformer using the
provided screws M5X8L*8pcs.
Step 2: Rackmount rail Installation
The rails adjust to mount in 48-cm (19-inch) panel racks from 52 to
91.5cm (20.5 to 36 inches) deep. Select the proper holes in the rack for
positioning the Step-Down Transformer in the rack. The 2U Step-Down
Transformer takes up position 1 through position 6. The 3U Step-Down
Transformer takes up position 1 through position 9.
Step 3: Adjust rackmount rails to fit your rack
Attach the rackmount rail to your rack with two M5X12L screws and two
plastic washers at the front of the rack. (Located in position 1 & position 6)
Do not tighten the screws. Adjust the rail size on the rail assembly of your
rack. Secure the rail to the rear of the rack with two M5X12L screws and
two plastic washers. Tighten all screws at the front and rear of the rail.
Place the Step-Down Transformer on a flat stable surface with the front of
the unit facing toward you. Secure the Step-Down Transformer to your
rack with four M5X12L screws at the front of the rack. The 2U Step-Down
Transformer takes up position 2 through position 5. The 3U Step-Down
Transformer takes up position 2 through position 8.
CAUTION! The Step-Down Transformer must be installed above the
power module.
To Next Page
