LCD MODULE REMOTE CONTROL and WALL-MOUNTING INSTRUCTIONS
16
REMOTE CONTROL
Step 1: Remove the Multifunction LCD Module
Unscrew the right panel of the Power module. Separate the right panel
from the UPS. Gently lift the LCD module out. Reinstall the right panel.

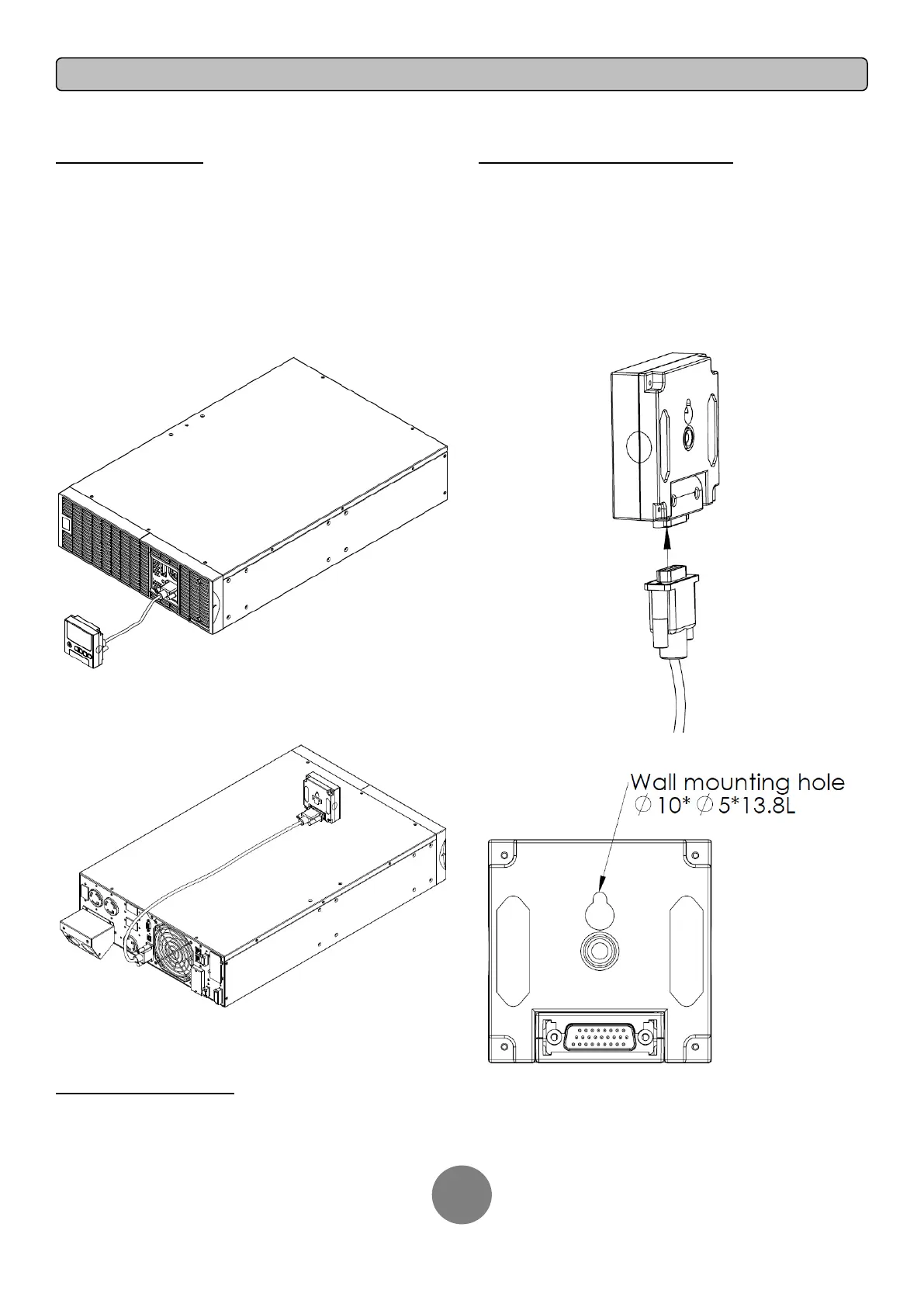

Step 2: Connect the DB26 Cable
Connect the DB26 cable from LCD module to the “Remote Control
Port” on the front panel or rear panel as shown in the following figure.
WALL-MOUNTING INSTRUCTIONS
Step 1: Remove the Multifunction LCD Module
Unscrew the right panel of the Power module. Separate the right panel
from the UPS. Gently lift the LCD module out. Reinstall the right panel.
Step 2: Rotate the DB26 Connector of LCD Module
Step 3: Connect the DB26 Cable
Connect the DB26 cable from LCD module to the “Remote Control
Port” on the front panel or rear panel as shown in the following figure.
Step 4: Mount LCD Module on the Wall
SAFETY PRECAUTIONS
CAUTION! It must be done by qualified personnel.
CAUTION! To avoid electric shock, turn off and unplug the unit before installing REMOTE CONTROL or WALL-MOUNTING INSTRUCTIONS.
