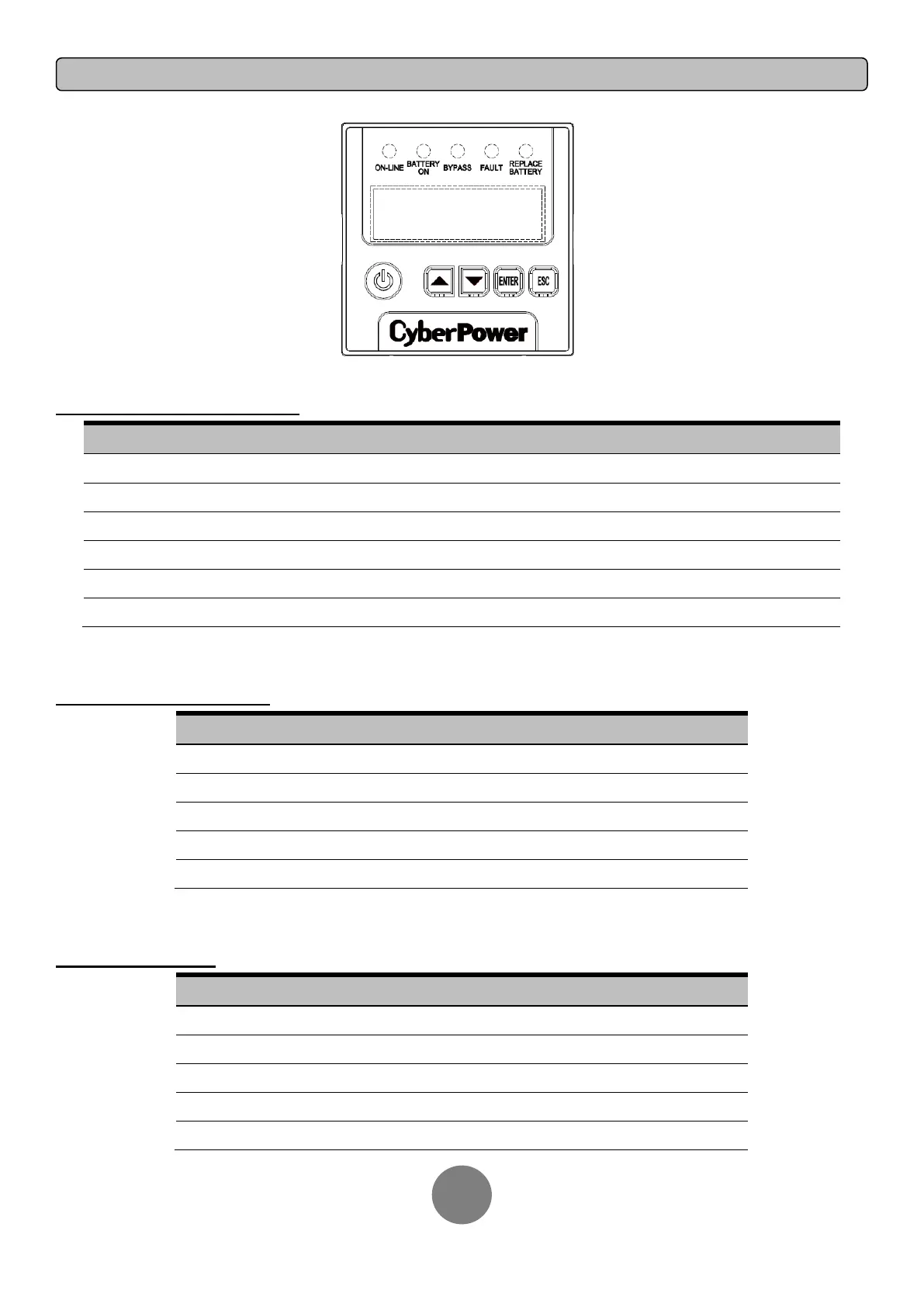

OPERATION INSTRUCTIONS FOR LCD MODULE
12
LED INDICATORS – UPS STATUS
LED Indicators
Color
UPS Status Description
ON/OFF
White
UPS power is on.
ON-LINE
Green
UPS is operating in Line Mode.
BATTERY ON
Yellow
UPS is operating in Battery Mode.
BYPASS
Yellow
UPS is operating in Bypass Mode, Manual Bypass or ECO (Economy) Mode.
FAULT
Red
UPS has an internal fault. See “Trouble Shooting” for additional information.
REPLACE BATTERY
Red
Battery will soon need to be replaced due to insufficient runtime.
LCD SCREEN – UPS STATUS
LCD Screen
UPS Status Description
Line Mode
UPS is operating in Line Mode.
Battery Mode
UPS is operating in Battery Mode.
Bypass Mode
UPS is operating in Bypass Mode.
Manual Bypass
UPS is operating in Manual Bypass.
ECO Mode
UPS is operating in ECO (Economy) Mode.
BUTTON OPERATION
Button
Operation Description
ON/OFF
Press this button to turn on or turn off UPS.
▲
Press this button to scroll up in the LCD menu.
▼
Press this button to scroll down in the LCD menu.
ENTER
Press this button to select an option.
ESC
Press this button to cancel or return to previous LCD menu.
