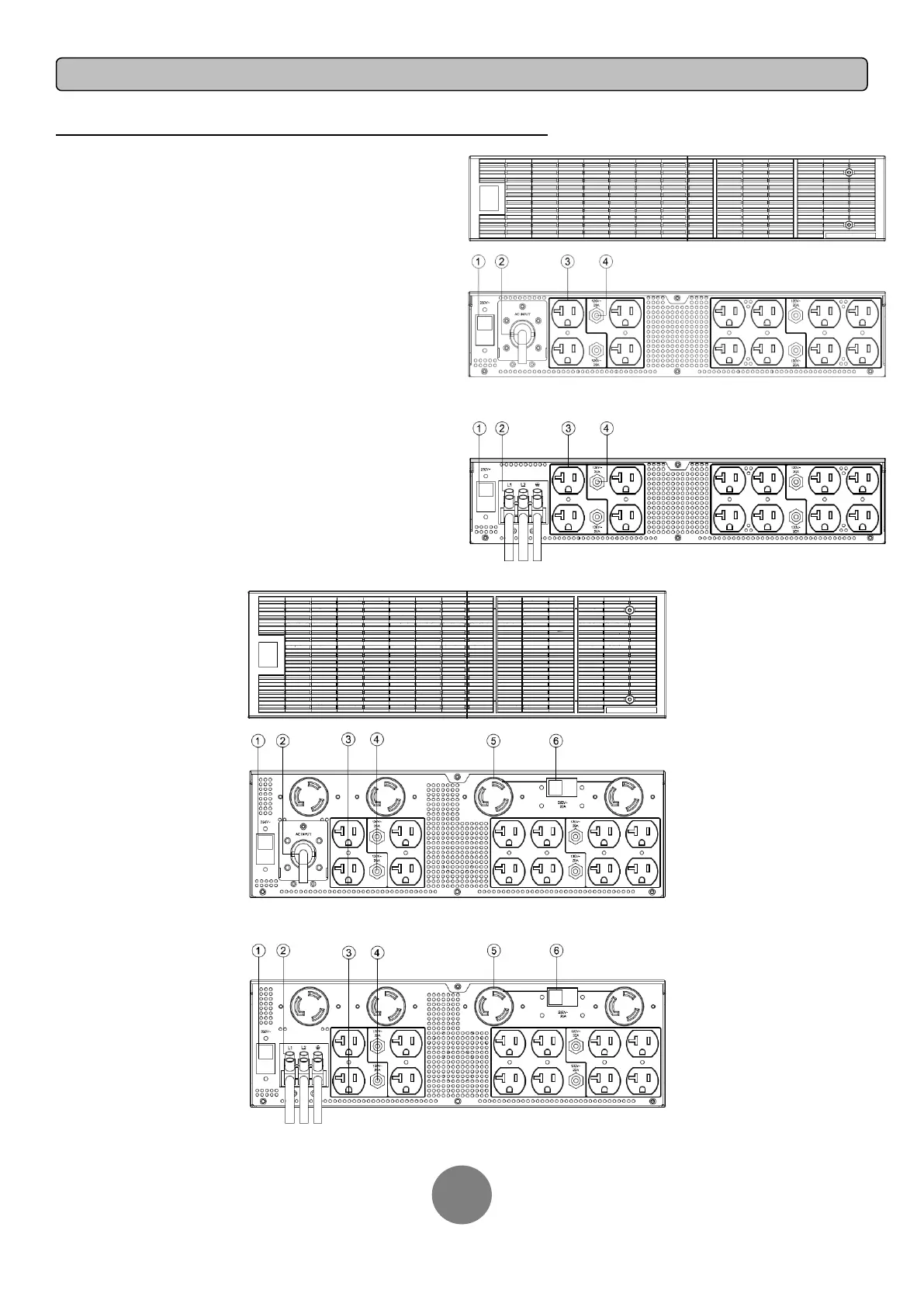

STEP-DOWN TRANSFORMER FRONT/REAR PANEL DESCRIPTION
1. Input Circuit Breaker
Provides input overload and fault protection.
2. Input Power Cord / Input Terminal Block
Connect to UPS outlet / output terminal block.
3. Battery Backup & Surge Protected Outlets (120Vac)
Provides battery backup and surge protection. They ensure power is
provided to connected equipment over a period of time during a
power failure.
4. Output Circuit Breaker (120Vac)
Provides output overload and fault protection.
5. Battery Backup & Surge Protected Outlets (208Vac)
Provides battery backup and surge protection. They ensure power is
provided to connected equipment over a period of time during a
power failure.
6. Output Circuit Breaker (208Vac)
Provides output overload and fault protection.
OL6KRT2UTF
OL6KRT2UTFHW
OL8K10KRT3UTF
OL8K10KRT3UTFHW
