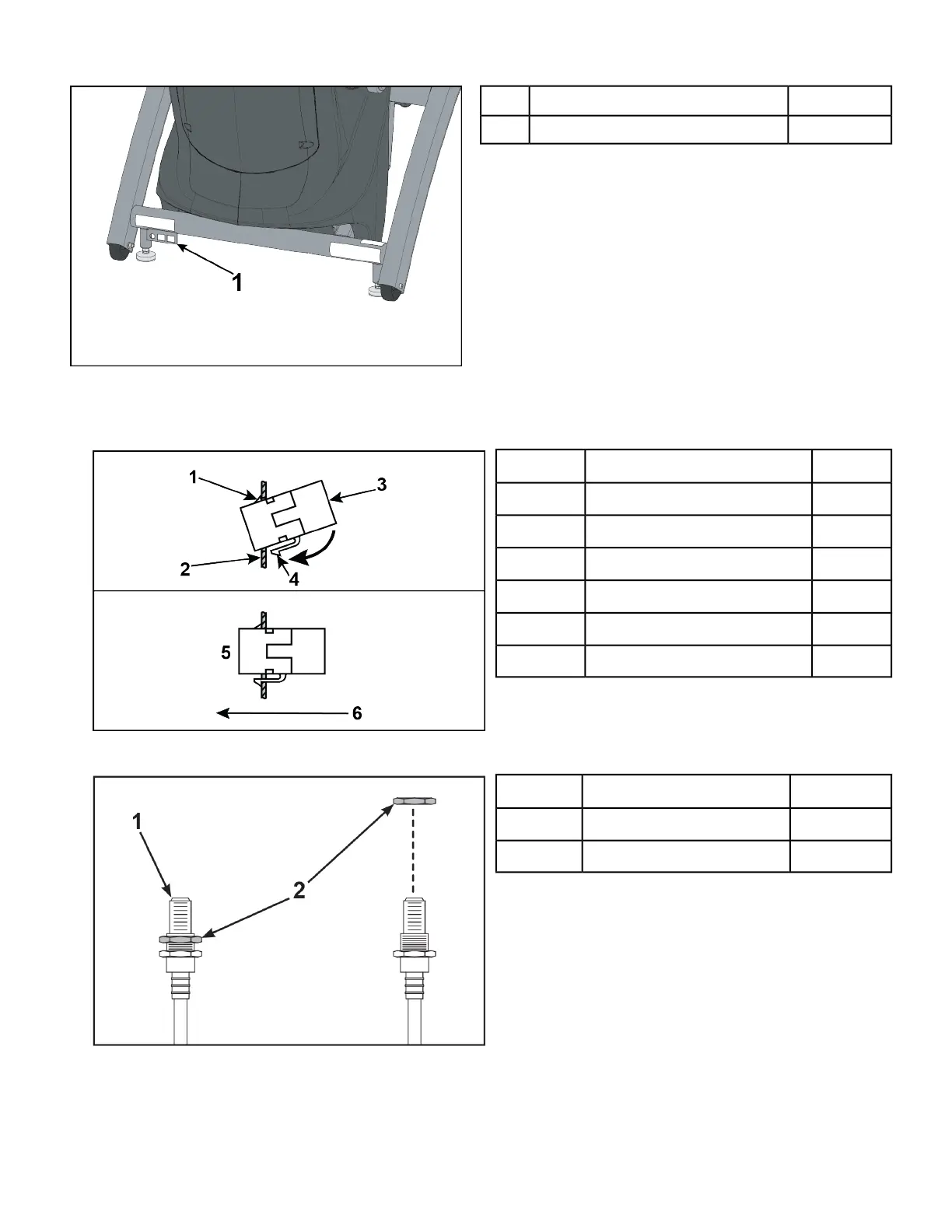

Qty.Description
1Mounting plate location1
1. Insert the optional couplers into the mounting plate by hooking the upper tab into the mounting plate
and snapping in the lower tab.
Qty.Description
1Upper tab1
1Mounting plate2
1Ethernet or HDMI coupler3
1Lower tab4
1Installed5
1Front of unit6
2. Remove the nut at the end of the coax cable.
Qty.Description
1Coax cable1
1Nut2
3. Insert the coax cable into the D-shaped hole in the mounting plate on the front of the unit.
4. Thread the nut removed in step 2 onto the coax cable.
Page 26 of 95
Cybex 771A/771AT, 772A/772AT Arc Trainer Part Number 5771-4 K
