40
Cybex Owner’s Manual

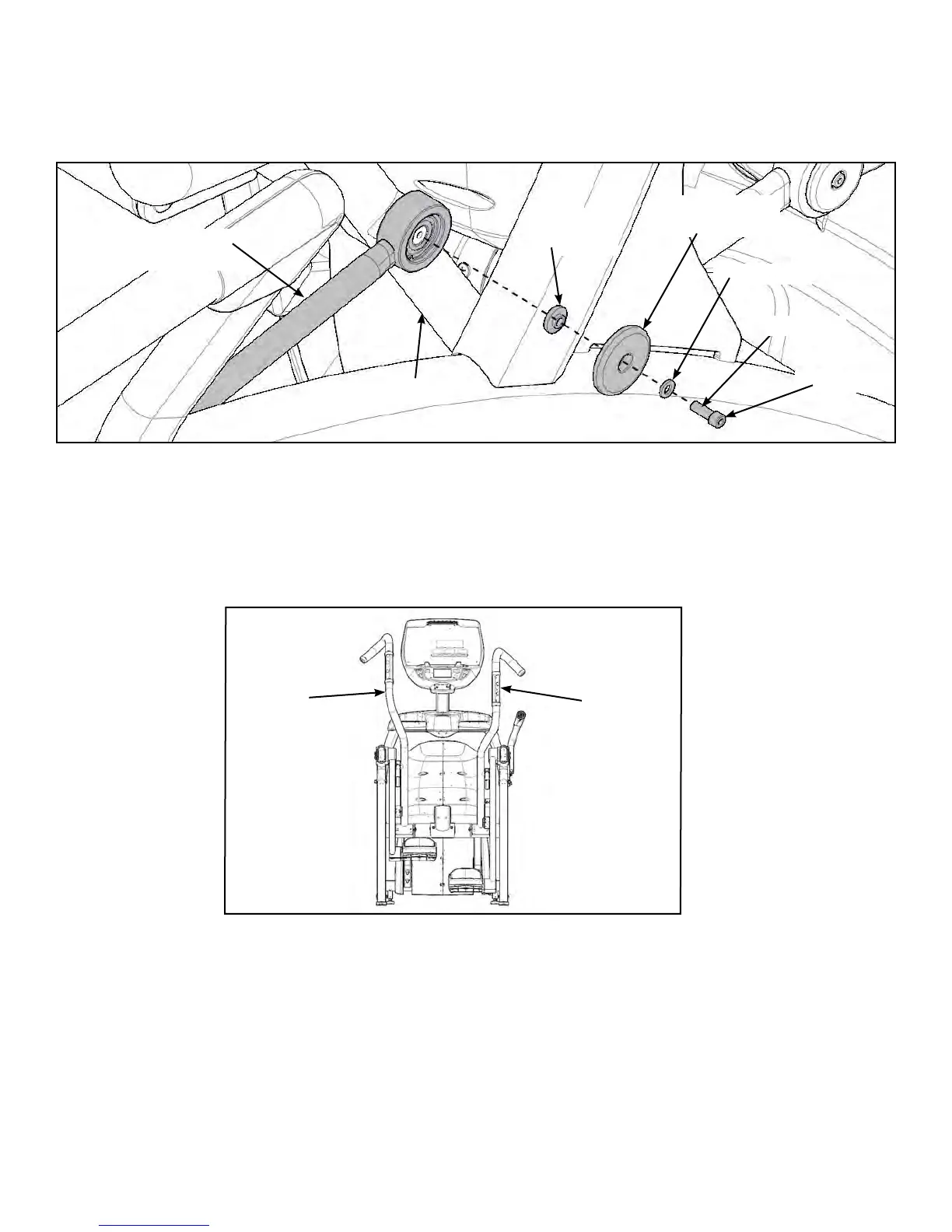

Install right linkage rod
1. Pivot right handle assembly up and slide right linkage rod onto right arm.
Right Linkage
Rod
Linkage Rod
Cap
Screw
Washer
Right Arm
Flange
Spacer
Loctite
2. Place a drop of Loctite onto the screw.
3. Install the screw, washer, linkage rod cap, and flange spacer using a 3/16” Allen wrench.
4. Tighten screw to a minimum of 90 in/lbs.
Verify handle assemblies are now installed in the correct position.
Correct
Position
Left
Handle
Assembly
Right
Handle
Assembly
