INSTALLATION OF CAR’S UPPER ANCHORAGE POINT
FOR CARS FITTED WITH A CHILD RESTRAINT UPPER ANCHORAGE POINT
Locate the upper anchorage point behind the rear seating position. (Consult the car owners handbook for the
location of the upper anchorage point).
The upper anchorage point should be directly behind and central to the restraint. Remove thread plug from the
parcel shelf / floor / roof, etc. and install attachment bolt and fitting as shown in Figure 1.
DO NOT OVERTIGHTEN ATTACHMENT BOLT
MAXIMUM TORQUE is 20 Nm

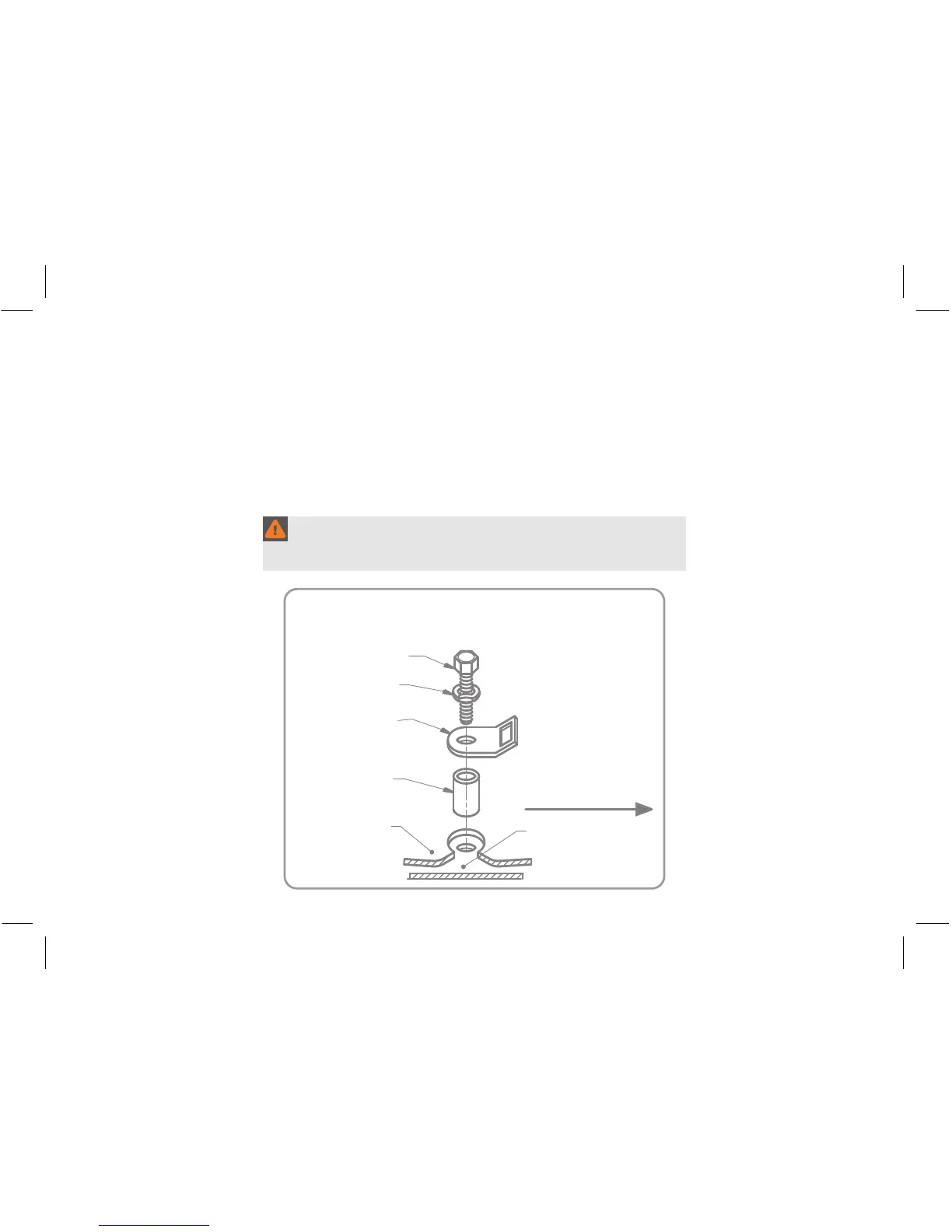

FIGURE 1.
UPPER ANCHORAGE FITTINGS
Anchor fitting
Front of vehicle
Lock washer
Attachment bolt
Vehicle trim
Spacer(s)
(if required)
Vehicle metal
structure

CYBEX Cloud Q Specifications

General

Certification	ECE R-44/04, Supplement 7
Mounting type	ISOFIX
Product color	Gold
Car seat group	0+ (0 - 13 kg; 0 - 15 months)
Adjustable backrest	Yes
Belt fastening type	5-point

Weight and Dimensions

Depth	665 mm
Width	440 mm
Weight	5400 g
Height (max)	570 mm
Height (min)	403 mm
