CYBEX Cloud Q Manual

34
INSTALLATION OF CAR’S UPPER ANCHORAGE POINT (Continued)
FOR CARS NOT FITTED WITH A CHILD RESTRAINT UPPER ANCHORAGE POINT

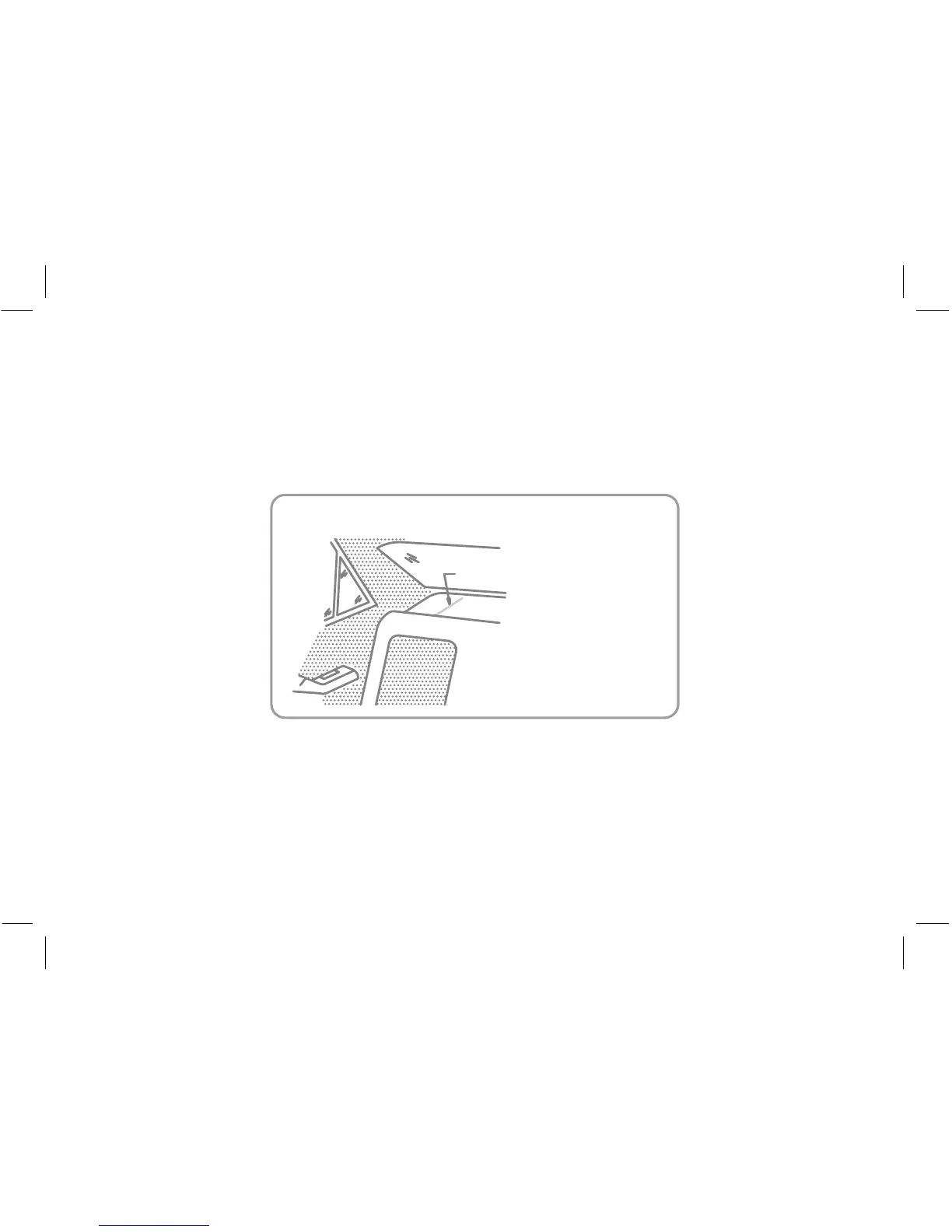

FIGURE 2. CENTER LINE OF SEATING POSITION
Centre-line of seating position
For Sedans only - Drill 9mm diameter hole in the parcel shelf on the centre line of the seating position as
shown in Figure 2. Install the anchor bolt as shown in Figure 3 (next page). It is recommended that this
installation be carried out by a child restraint fitting station or licenced motor mechanic.
For vehicles other than Sedans - In Australia, consult your nearest child restraint fitting station or traffic
authority for vehicle inspection to find the correct position for the placement of the upper anchorage point,
and for the correct attachment bolt length and use of spacers. In New Zealand, consult the agent for the
vehicle. Note to Queensland purchasers: The installation of anchorage points must be approved by
authorised officers appointed by Queensland Transport. Authorised officers can be sourced from all
Queensland Transport Customer Service and Queensland Ambulance Service Centres.

CYBEX Cloud Q Specifications

General

Certification	ECE R-44/04, Supplement 7
Mounting type	ISOFIX
Product color	Gold
Car seat group	0+ (0 - 13 kg; 0 - 15 months)
Adjustable backrest	Yes
Belt fastening type	5-point

Weight and Dimensions

Depth	665 mm
Width	440 mm
Weight	5400 g
Height (max)	570 mm
Height (min)	403 mm
