INSTALLATION OF CAR’S UPPER ANCHORAGE POINT (Continued)

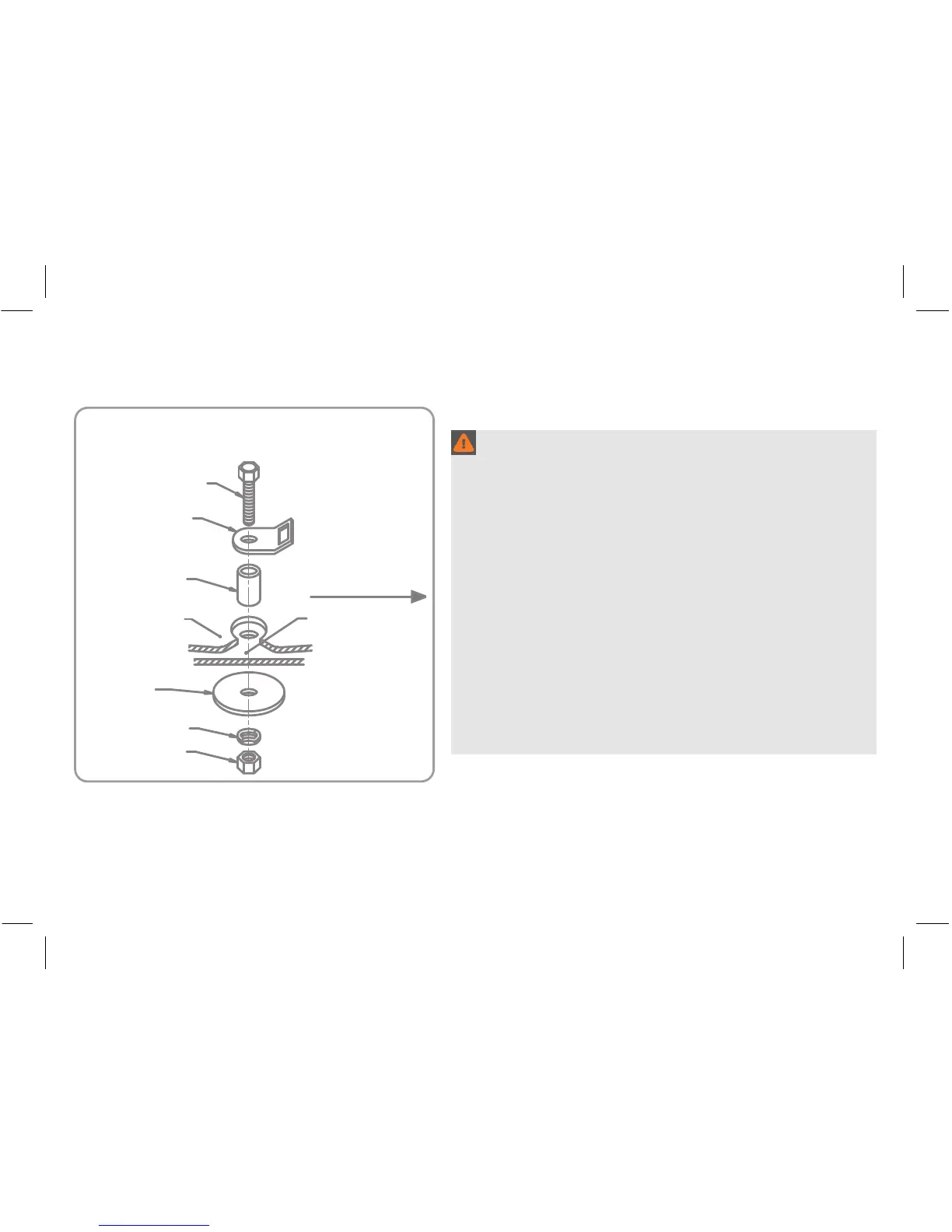

FIGURE 3. UPPER ANCHORAGE FITTINGS
FOR SEDANS ONLY
Nut
Spacer(s)
(if required)
Vehicle trim
Reinforcing
washer
Anchor fitting
Lock washer
Attachment bolt
Front of vehicle
Vehicle metal
structure
WARNING: CHILD RESTRAINTS MUST NOT
BE ATTACHED TO UNSOUND METAL OR
TO WOOD, OR SYNTHETIC STRUCTURES.
WHEN DRILLING THE 9 mm HOLE DO NOT
DRILL THROUGH FUEL LINES, FUEL TANKS,
ELECTRICAL WIRING, OR RADIO SPEAKERS.
WEBBING STRAPS MUST BE PROTECTED
FROM SHARP CORNERS AND EDGES.
THE ANCHOR FITTING MUST BE USED ONLY
AS DESCRIBED ABOVE. IT MUST NOT BE
HOOKED ONTO ANY OTHER OBJECT.

CYBEX Cloud Q Specifications

General

Certification	ECE R-44/04, Supplement 7
Mounting type	ISOFIX
Product color	Gold
Car seat group	0+ (0 - 13 kg; 0 - 15 months)
Adjustable backrest	Yes
Belt fastening type	5-point

Weight and Dimensions

Depth	665 mm
Width	440 mm
Weight	5400 g
Height (max)	570 mm
Height (min)	403 mm
