Cybex Free Weight Owner’s Manual
Service
Page 7-18

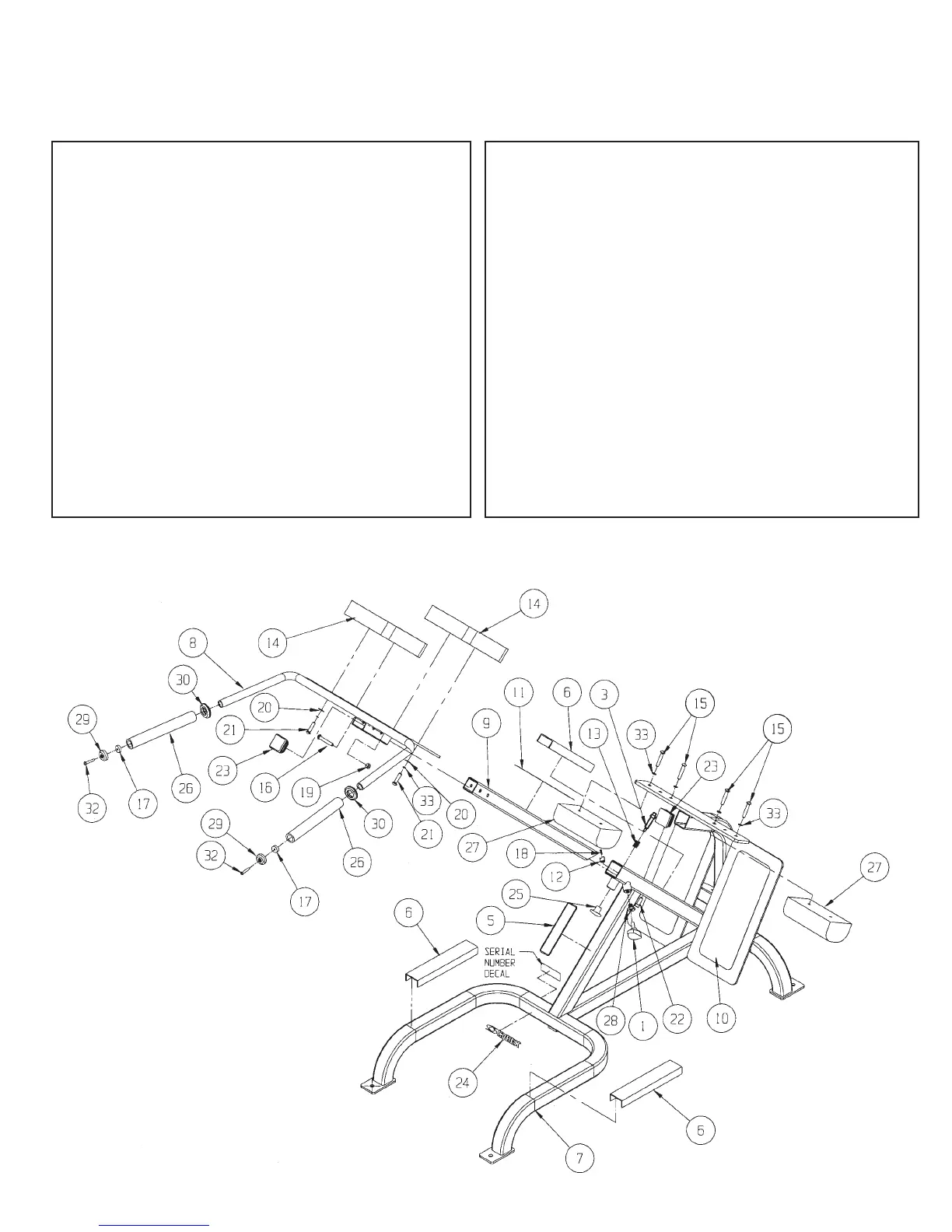

5411 - 45 Degree Back Extension
1 1 PP460010 Plastic Knob
2 1 4000-328 Footglide Removal Instr.
(not shown)
3 1 4000M218 Detent Pin
4 Removed 7-03
5 1 5220-364 Warning Decal
6 3 5410M012 Machined Bumper
7 1 5411-200 Frame
8 1 5411-201 Handle Bar
9 1 5411-202 Adjusting Tube
10 2 5411-309 Non-Slip
11 1 5411-312 Adjusting Tube Decal
12 1 AA033904 V-Pusher
13 1 BS070201 Com Spring .56 x .66 x 1.50 L
14 2 01214 Cushion with Wear Cover
15 4 HC700420 BHSCS .375-16 x 1.25
16 2 HC700430 BHSCS .375-16 x 2.50
17 2 HF449063 Connector Insert .75 x .25-20
ITEM QTY PART NO. DESCRIPTION
18 1 HM532812 SHCS .138/6-32 x .50 GR8
19 2 HN704901 Nylon Locknut .375-16
20 4 HS347600 Washer SAE .375
21 4 JC700422 BHSCS .375-16 x 1.50
22 1 JC702814 SHCS .375-16 x .625
23 2 PP090210 Plastic Insert 2.00 Sq x 10-14 G
24 1 3900-445 Cybex Decal 1.00 Horiz. Black
24 Removed 7-03
24 1 3900-446 Cybex Decal 1.00 Horiz. Silver
25 1 PP460200 Plastic Knob .312-18
26 20.5” PR400202 Grip 1.38 OD x .94
27 2 01215 Cushion with Wear Cover
28 1 4705-332 Threaded Insert
29 2 11090-374 End Cap
30 2 11090-376 Handle Grip Ring
31 1 51198 Strength Warranty Sheet (not shown)
32 2 JC620422 BHSCS .250-20 x 1.50
33 8 JS347400 Internal Tooth Lockwasher
ITEM QTY PART NO. DESCRIPTION
5411 - 45 Degree Back Extension
To Next Page
