Cybex Free Weight Owner’s Manual
Service
Page 7-32

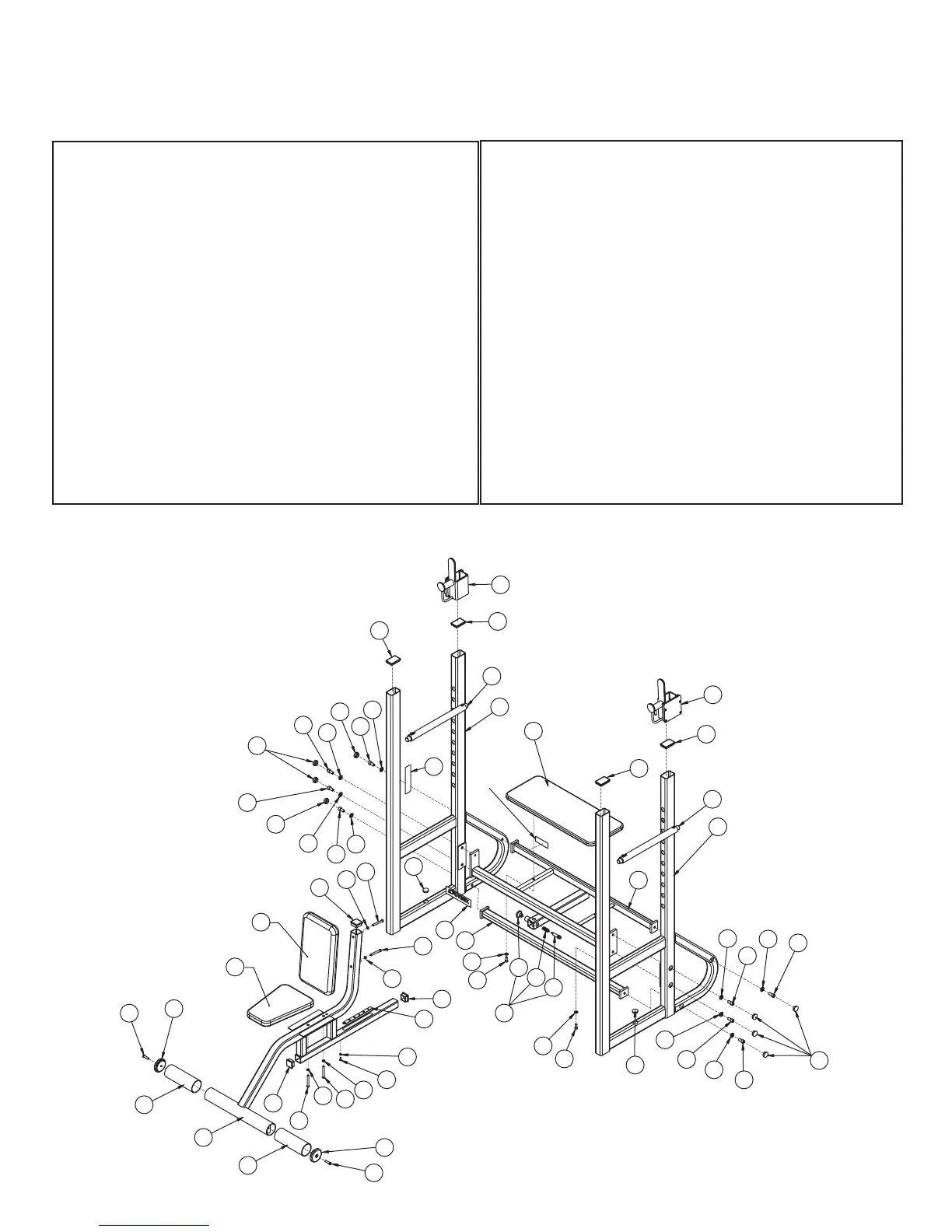

5471 - Military Press Station
1 1 4000M218 Detent Pin
2 1 3900-445 Cybex Decal 1.00 Horiz. Black
2 1 3900-446 Cybex Decal 1.00 Horiz. Silver
3 1 5420-002 Bar Rack Assembly Right Hand
4 2 5420-028 Adjusting Bar Subassembly
5 1 5471-200 Platform
6 1 5470-201 Right Side
7 1 5470-202 Left Side
8 1 5470-203 Cross Tube
9 1 5470S024 Platform Subassembly
10 1 5471-201 Seat
11 1 BS070201 Com Spring .56 x .66 x 1.50 L
12 2 HC702816 SHCS .375-16 x .875
13 1 HS108000 Nylon Washer .190 x .438 x .128 T
14 2 HS347600 Washer SAE .375
15 8 HS387700 Washer SAE .50
16 1 HT102214 Phil, Hxhd, Wshr, Type 23, 10-24
ITEM QTY PART NO. DESCRIPTION
17 8 JC782817 SHCS .50-13 x 1.00
18 10 PP080202 Plastic Insert 1.19 Dia. x 11 G
19 2 PP090200 Plastic Insert 1.75 Sq x 11 G
20 1 PP090210 Plastic Insert 2.00 Sq x 10-14 G
21 4 PP090206 Plastic Insert
22 1 PP460200 Plastic Knob .312-18
23 1 4121K117 Detent Pin Kit
24 4 JC700434 BHSCS .375-16 x 3.00
25 1 5500-300 Adjusting Decal
26 1 4106S055-0 Cushion
27 1 5520S008-0 Cushion
28 1 5420-003 Bar Rack Assembly Left Hand
29 1 5220-364 Warning Decal
30 2 11090-398 End Cap
31 2 11090-400 Grip
32 2 JC700422 BHSCS .375-16 X 1.50
33 4 JS347400 Internal Tooth Lockwasher
ITEM QTY PART NO. DESCRIPTION
10
24
19
25
31
31
30
32
27
26
32
30
24
33
33
16
13
33
24
19
3
21
28
21
4
7
9
SERIAL
NUMBER
DECAL
29
4
6
5
18
20
33
24
18
2
21
15
17
18
17
15
17
18
18
15
17
15
15
15
17
17
15
15
17
17
18
12
14
8
14
12
11
1
22
23
21
5471 - Military Press Station
