Cybex Free Weight Owner’s Manual
Service
Page 7-30

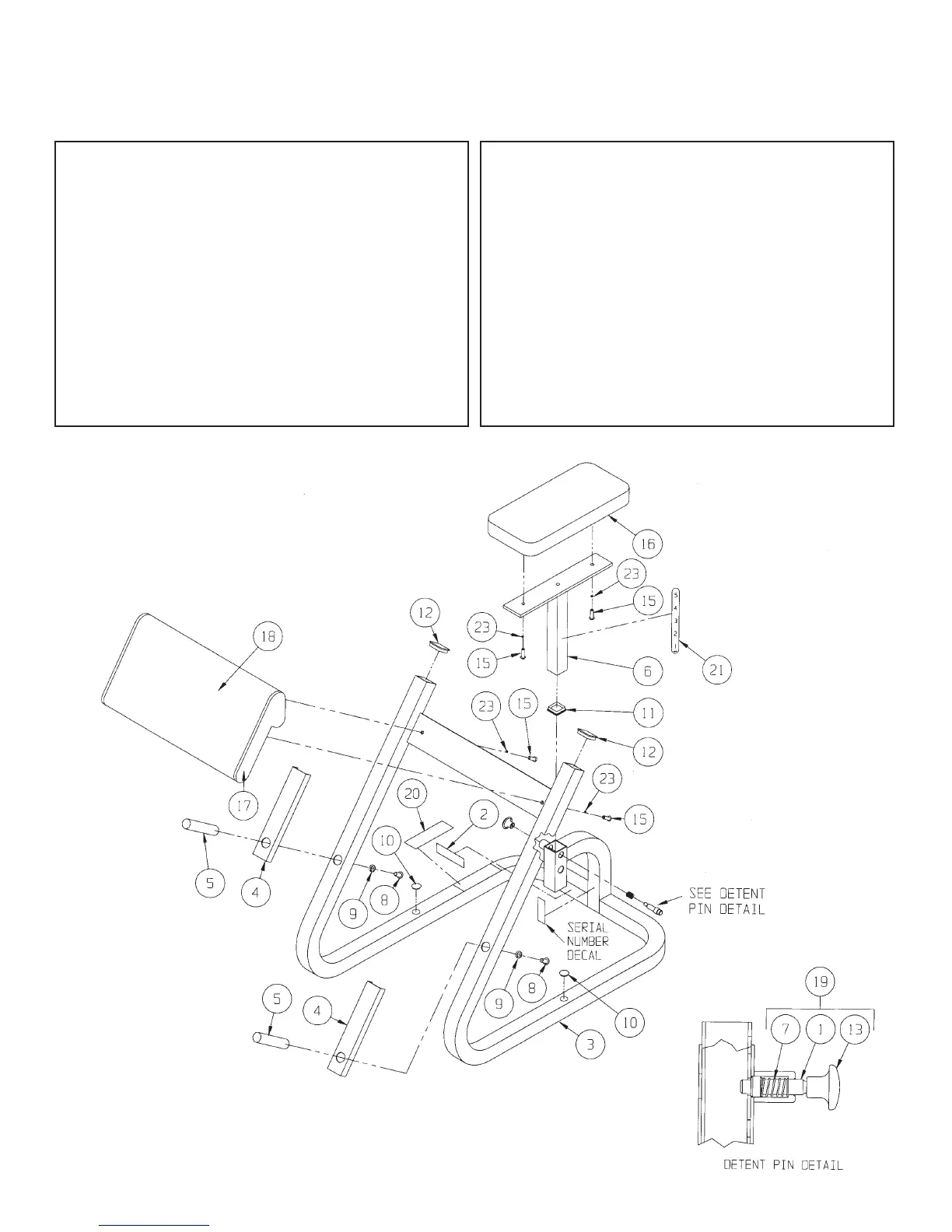

5460 - Scott Curl Station
1 1 4000M218 Detent Pin
1 1 4000M218 Detent Pin
2 1 3900-445 Cybex Decal 1.00 Horiz. Black
2 Removed 7-03
2 1 3900-446 Cybex Decal 1.00 Horiz. Silver
3 1 5460W002 Frame
4 2 5460M009 Machined Bumper
5 2 5460P010 Barbell Holder
6 1 5460-200 Cushion Mount
7 1 BS070201 Com Spring .56 x .66 x 1.50 L
8 2 JC780417 BHSCS .50-13 x 1.00
9 2 JS388300 Split Lockwasher .50
10 2 PP080202 Plastic Insert 1.19 Dia. x 11 G
11 1 PP090200 Plastic Insert 1.75 Sq x 11 G
ITEM QTY PART NO. DESCRIPTION
12 2 PP090210 Plastic Insert 2.00 Sq x 10-14 G
13 1 PP460200 Plastic Knob .312-18
14 Removed
15 4 JC700420 BHSCS .375-16 x 1.25
16 1 4800-024 Cushion
17 1 01216 Cushion with Wear Cover
18 1 5460S013-0 Wear Cover
19 1 4121K117 Detent Pin Kit
20 1 5220-364 Warning Decal
21 1 5460-302 Adjusting Tube Decal
22 1 51198 Strength Warranty Sheet
(not shown)
23 4 JS347400 Internal Tooth Lockwasher
ITEM QTY PART NO. DESCRIPTION
