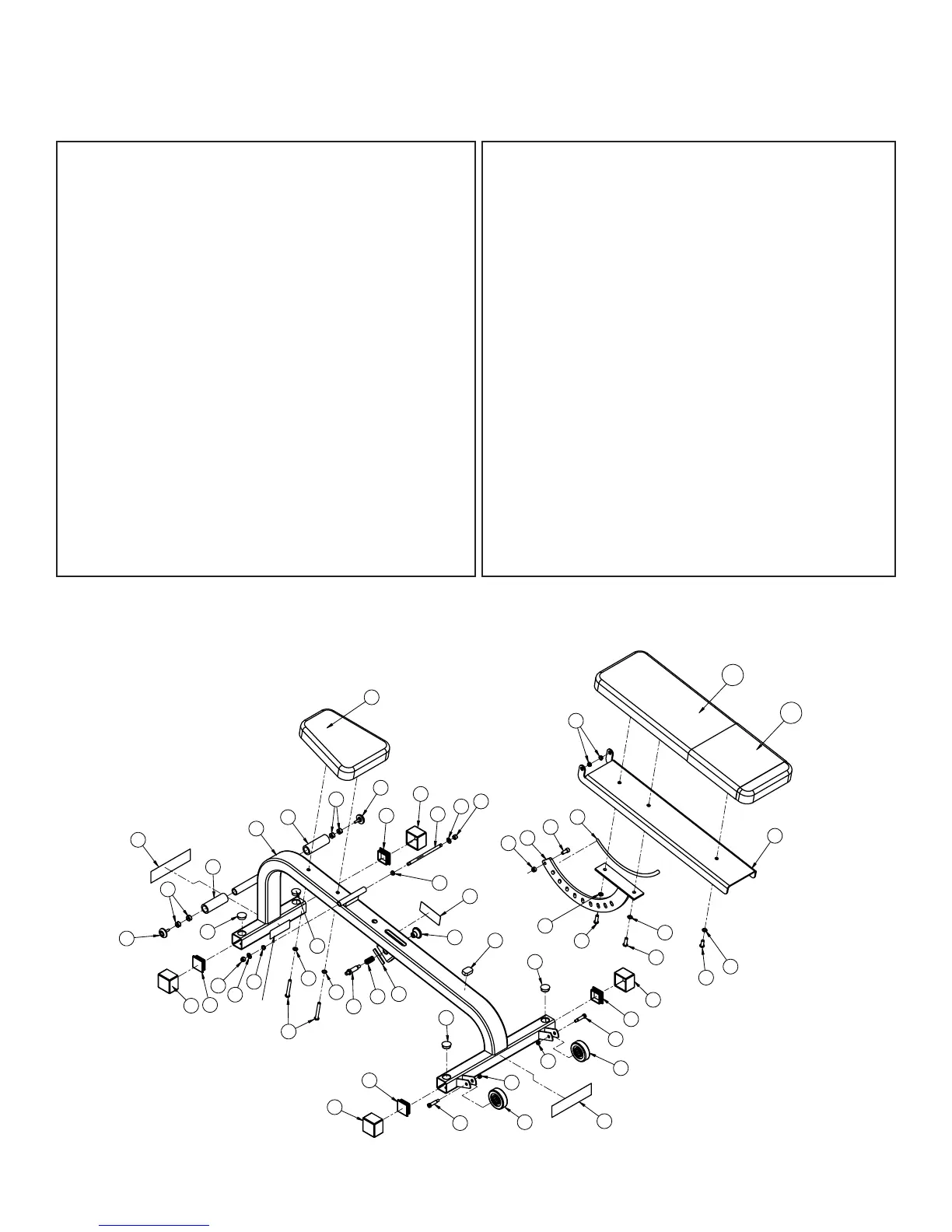

5437 - Adjustable Bench
1 1 11040-440 Cybex Knob
2 2 3900-445 Cybex Decal 1.00 Horiz. Black
2 2 3900-446 Cybex Decal 1.00 Horiz. Silver
2 Removed 7-03
3 2 4605-550 Plug .250-20
4 1 5437-200 Frame
5 1 5437-201 Cushion Tube
6 1 5437-305 Bumper
7 1 5437-308 Cushion Plate
8 1 5437-317 Pivot Shaft
9 1 8500-028 Caution Decal
10 4 8510-344 Rubber Cap
11 1 8510-366 Detent Pin
12 Removed (4/02)
13 1 BS070201 Spring .56 x .66 1.50 L
14 Serial Number Decal
15 4 FB050211 Brg. Flg. .38 x .50 .25 L
16 1 HC702816 SHCS .375-16 x .875
17 4 HF449063 Insert 3/4 x 1/4-20
18 2 HN664900 Self Locking Hex Nut .312-18
Black Zinc
ITEM QTY PART NO. DESCRIPTION
19 3 HN704901 Nylon Locknut .375-16
20 2 JC700420 BHSCS .375-16 x 1.25
21 2 JC700434 BHSCS .375-16 x 3.00
22 2 JD343320 S Bolt .375 x 1.50 .312-18
23 1 PU060201 Bumper
24 2 4605-509 Grip
25 2 WW130000 Wheel 3 inch Dia.
26A 1 4800-009 Back Cushion
26B 1 4800-092 Wear Cover
27 1 4800-019 Seat Cushion
28 1 5437-319 Adjustment Decal
29 1 HC700417 BHSCS .375-16 x 1.00
30 4 PP090201 Plastic Insert
31 2 HS347600 Washer
32 4 PP080210 Plastic Insert
33 1 51198 Strength Warranty Sheet
(not shown)
34 5 JS347400 Internal Tooth Lockwasher
ITEM QTY PART NO. DESCRIPTION
7
16
28
15
21
SERIAL
NUMBER
DECAL
11
34
6
13
15
24
4
5
10
9
8
2
29
31
19
25
30
19
34
34
20
32
10
27
3
22
18
18
23
15
3
17
2
17
24
25
22
30
10
32
20
34
26A
26B
30
19
30
10
31
34
1
32
32
