5. Power Switch: Switches the power amplifier section of the unit On (up)
and Off (down). The preamplifier section is powered as soon as the unit is
connected to the mains supply This feature helps stabilize the operating
temperature of the preamplifier, and optimize the sound quality on switch-
on.
6. Red LE.D.: When the power switch is up (i.e. the amplifier is on) the red
L.F_.D. will light up to indicate fully operational status.
NOTE: It is important that the unit is unplugged from the mains supply if it
is unattended for any length of time (Vacations, etc.).

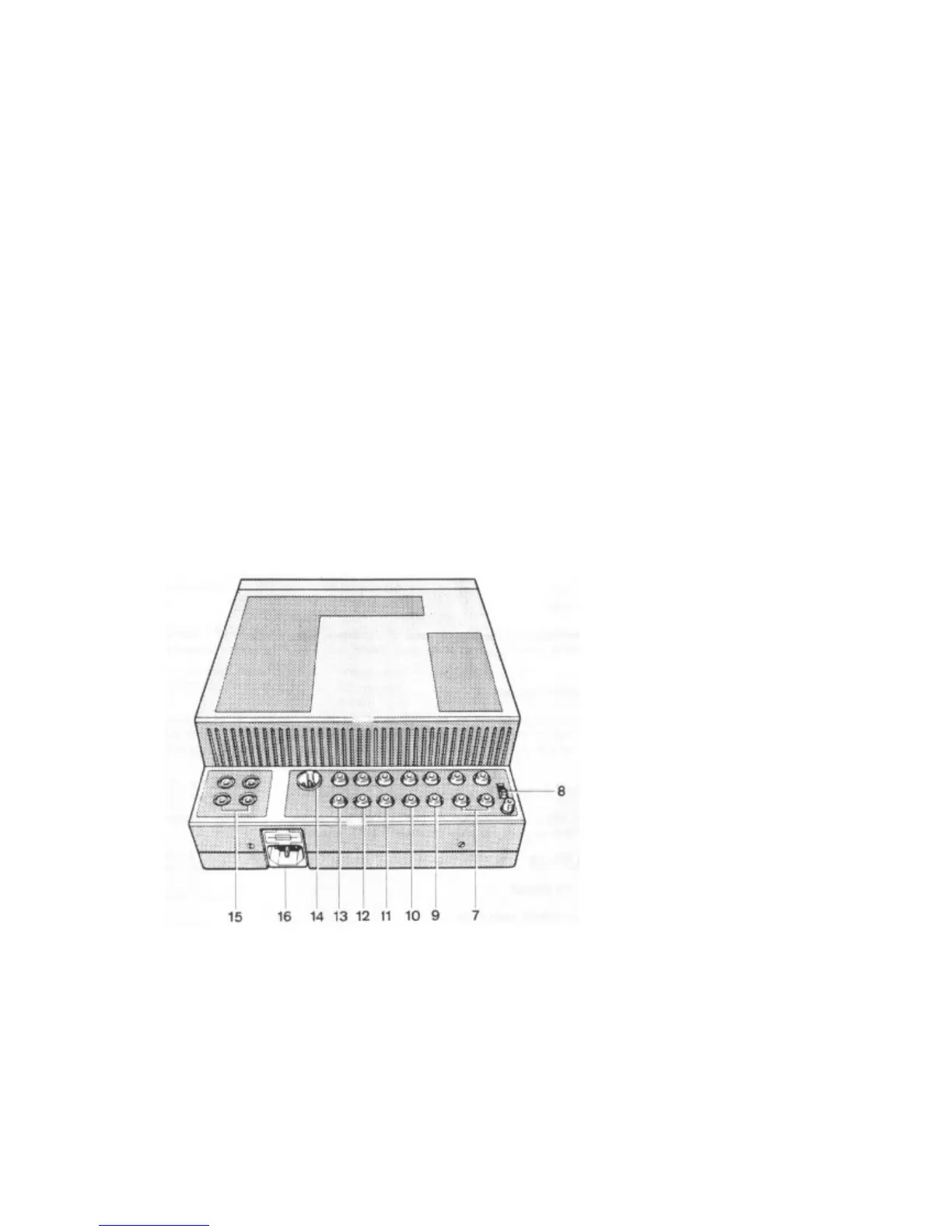

REAR PANEL
All inputs plus the tape output are colour ceded as follows: RED for the
right channel and WHITE for left channel,
7. Phono Input: Two separate record player inputs are provided. One set of
inputs are dedicated to Moving Coil cartridges, while the other set is for
Moving Magnet cartridges.
8. MM/MC Switch: Selects between MM (Moving Magnet) and MC (Moving
Coil) pick-up cartridge inputs.
