Refer to the wiring diagram of your particular Cyrus amplifier for
connection details.
For best results, the loudspeaker cables used should be of high purity
copper and as short as possible. We strongly recommend our own Mission
or Cyrus loudspeaker cables.
The phono ground terminal (GND), on the rear panel, is provided for
connecting to the appropriate ground wire from your tonearm/turntable.
This will minimise the possibility of hum being induced in the phono
circuitry.
All the RCA phono sockets are colour-coded WHITE for the left and RED
for the right channel.
In the case of the Loudspeaker output terminals, RED is for positive and
BLACK is for negative.

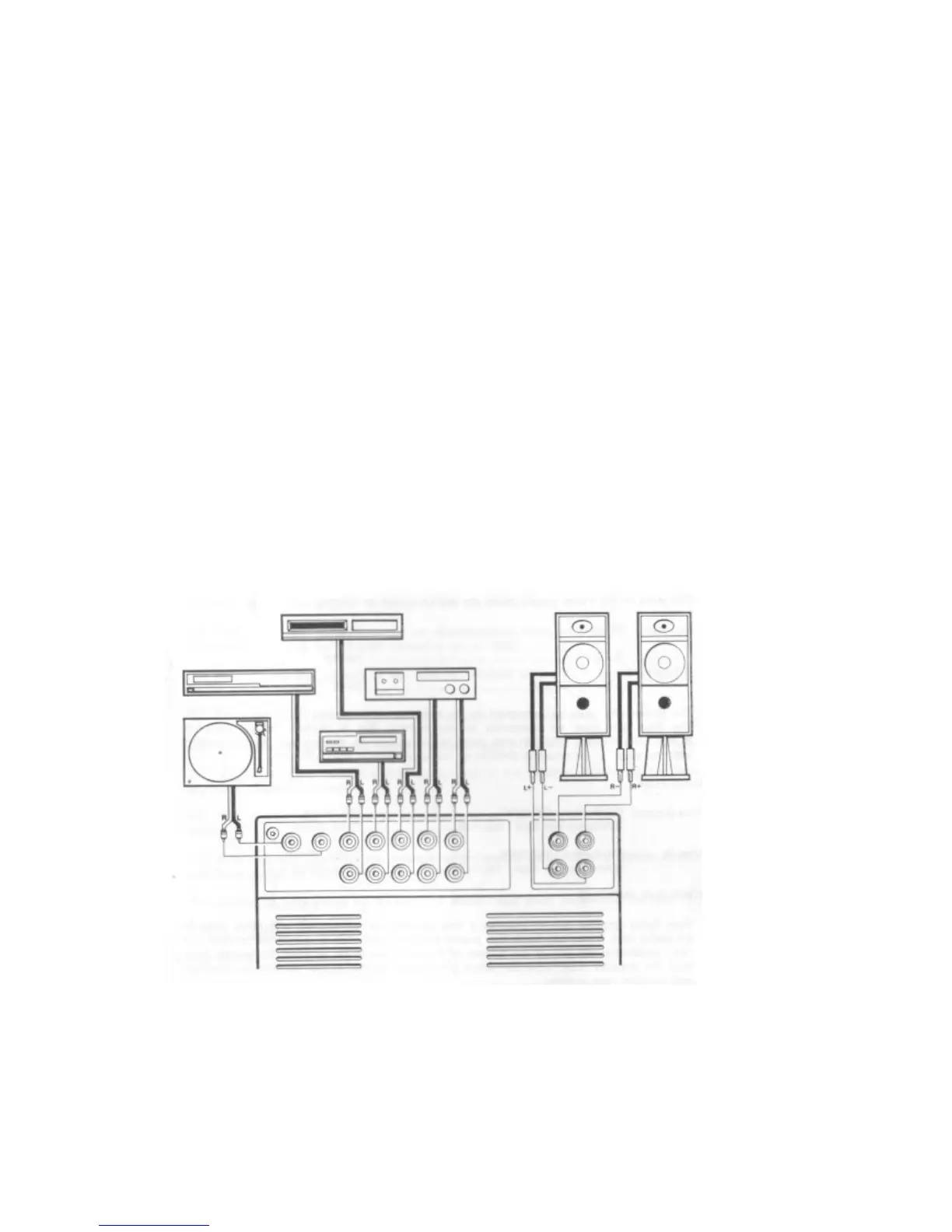

Cyrus One Installation Diagram
