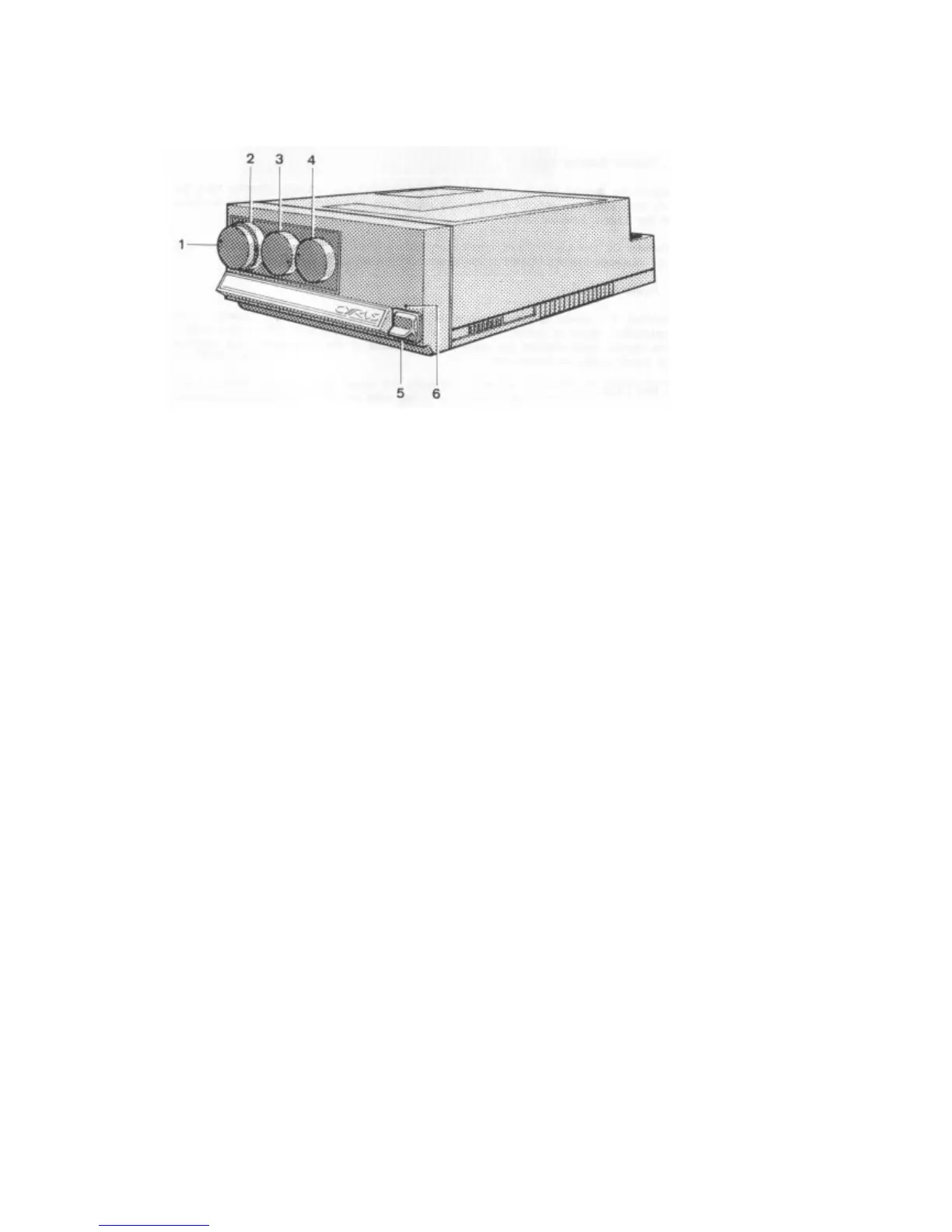

1. Volume Control: Adjusts the power amplifier output level to the
Loudspeakers from zero to the maximum level.
2. Balance Control: Adjustment of the Balance Control knob swings the
output level to the left or right Loudspeaker by a maximum of 5 dB.
3. "Listen" Selector Switch: Selects the desired source for listening.
Starting from the fully clockwise position, the sources which may be
selected are as follows:
• Phono: Record Player; Moving Coil or Moving Magnet Cartridge.
• Mute: No source selected. May also be used to erase recorded tape.
• CD: Compact Disc Digital Audio Player.
• Tuner: FM/AM Hi-Fi Tuner.
• Video: Hi-Fi Video Recorder, a second Tape Deck (playback only).
• Tape: Tape Recorder used for record and playback (Including R-
DAT).
4. "Record" Selector Switch: Selects the desired source for recording via
the "Tape-out" socket. Starting from the fully anti-clockwise position, the
sources which may be selected are identical to those on the "Listen"
Selector Switch.
Warning: Do not select 'Tape" position on both selector switches
simultaneously. This may cause feedback problems in the tape deck, if it is
in the record mode.
