Warning: Do not select 'Tape" position on both selector switches
simultaneously. This may cause feedback problems in the tape deck, if it is
in the record mode.
5. Power Switch: Switches the power amplifier section of the unit On (up)
and Off (down). The preamplifier section is powered as soon as the unit is
connected to the mains supply. This feature helps stabilize the operating
temperature of the preamplifier, and optimize the sound quality on switch-
on.
6. Red LE.D.: When the power switch is up (i.e the amplifier is on)"the red
LED. will light up to indicate fully operational status.
NOTE: It is important that the unit is unplugged from the mains supply if it
is unattended for any length of time. (Vacations, etc.)

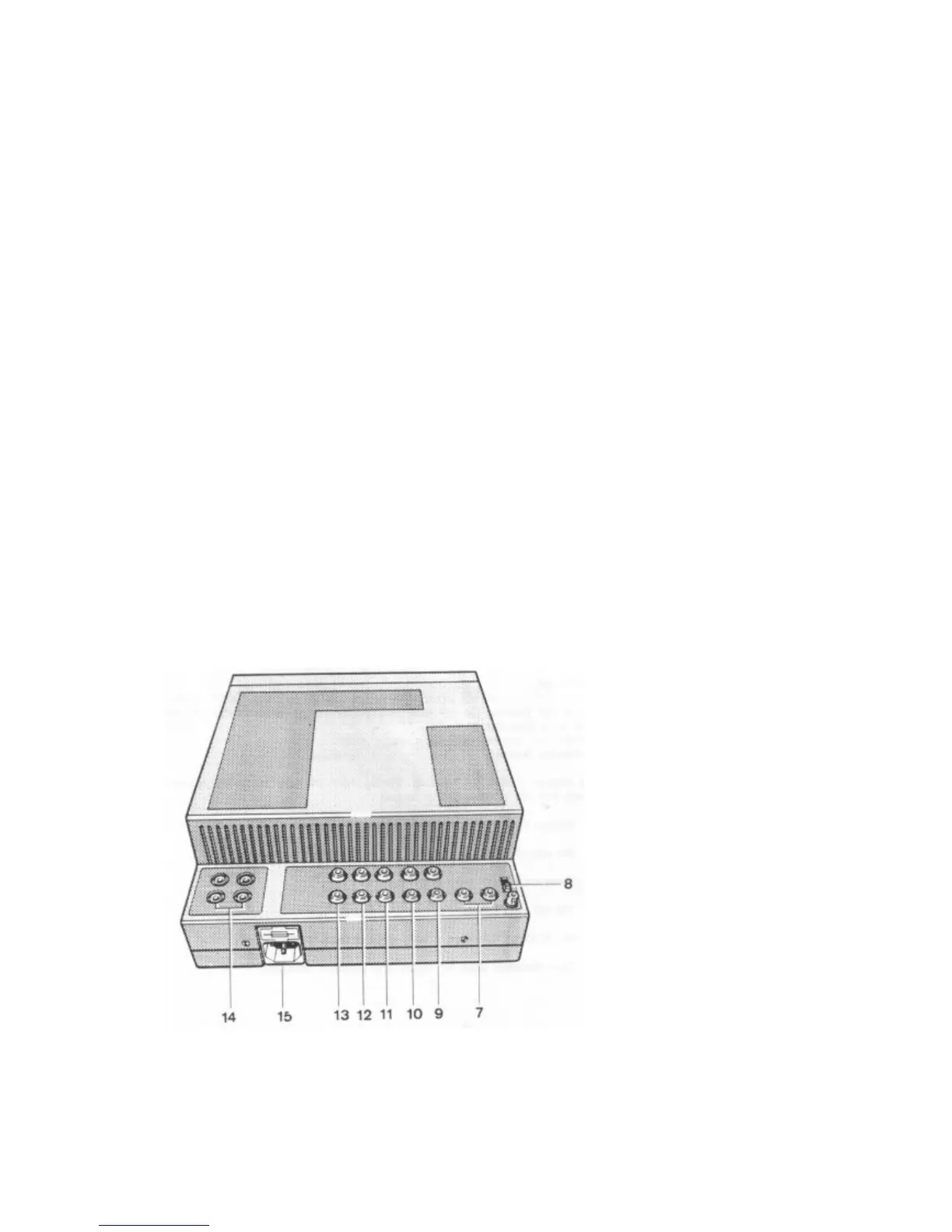

REAR PANEL
All inputs plus the tape output are colour coded as follows: RED for the
right channel and WHITE for left channel.
7. Phono Input: Dedicated Input to accept the signal from a Record player.
