EN / CZone® Control X User & Installation Manual
22
7 CZone Switch Input Resistor Module (CZone MUX)
Support for multiplex switch inputs means multiple mechanical switches can be connected to a single input channel.
When combined with CZONE sequential button types you can achieve ultimate control through minimal inputs.
The Switch Input Resister Module allows up to 4 switches to be connected to a single input channel. You can connect
any combination of momentary and latching switches, and unlike other multiplex switching modules, multiple switches
can be pressed at the same time.
• GND for the CZone MUX must return to the same module the Resistor Module is connected to.
• The total wire resistance (signal wire and the GND wire) must be kept under ~10 ohms.
Description
Part number
CZONE Switch Input Resistor Module
80-911-0234-0
Mating Connector Part Numbers Available In Section 9, Ordering Information
Pin No.
Function
Pin No.
Function
1.
Signal Input
4.
Switch Input 3
2.
Switch Input 1
5.
Switch Input 4
3.
Switch Input 2
6.
GND
Notes:
RESET
OFF
NEXT
ON

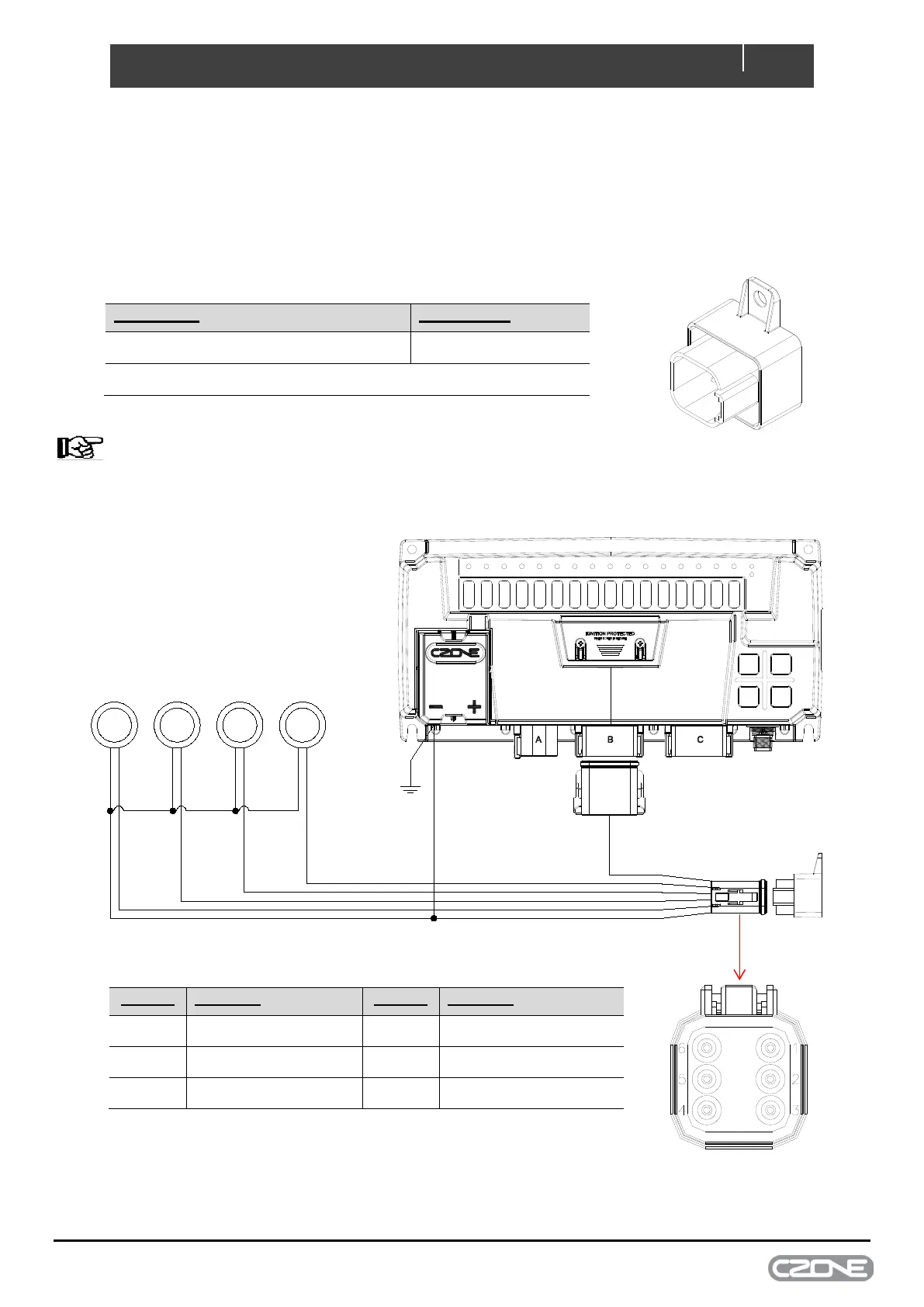

Figure 15. CZONE Multiplex Switch Input Wiring
Deutsch C-DT06-6S Pinout
1
2
3
6
5
4
Plug Rear View
Push Button Switches
