EN / CZone® Control X User & Installation Manual
LED INDICATORS

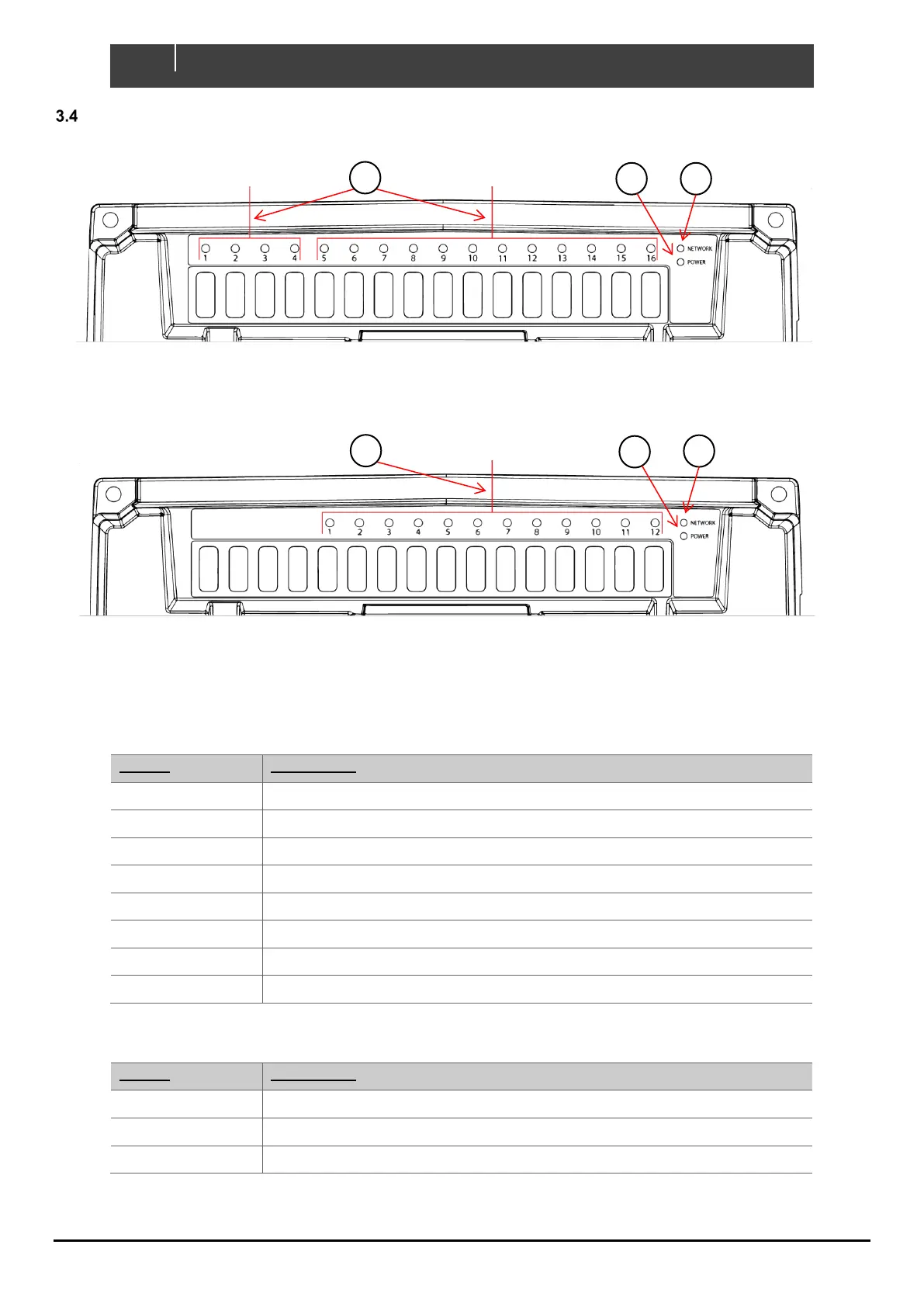

Figure 2. LED Indicators
1. Circuit Status LED’s
Colour
Description
Off
Channel Off
Green Solid On
Channel On
1 Red Flash
Module Not Configured
2 Red Flash
Configuration Conflict
3 Red Flash
DIP Switch Conflict
5 Red Flash
No Modules Detected
7 Red Flash
Over Current
9 Red Flash
Missing Commander
2. Power LED
Colour
Description
Off
Power Disconnected
Green
Power Available (>12V for 12V System, >20V for 24V System)
Red
Low Volts (<12V for 12V System, <20V for 24V System)
A Connector
B Connector
B Connector
Control X Plus
Control X
3
2
3
2
1
1
