CZone Control X - Control X Overview; Figure 1. Product Overview

EN / CZone® Control X User & Installation Manual
8
CONTROL X OVERVIEW
Component
1.
Circuit Status Indication (Will vary between Control X and Control X PLUS specs)
2.
Circuit Label
3.
Main Supply Terminal Panel
4.
Dipswitch Cover
5.
Connector A - DTP06-4S
6.
Connector B - DT06-12SA
7.
Connector C - DT06-12SB
8.
NMEA2000 Micro C Connector
9.
Capacitive Touch Panel
10.
Module Power Indicator
11.
Network Power/Traffic Indicator
3
4
5
6
7
8
1
2
9
10
11

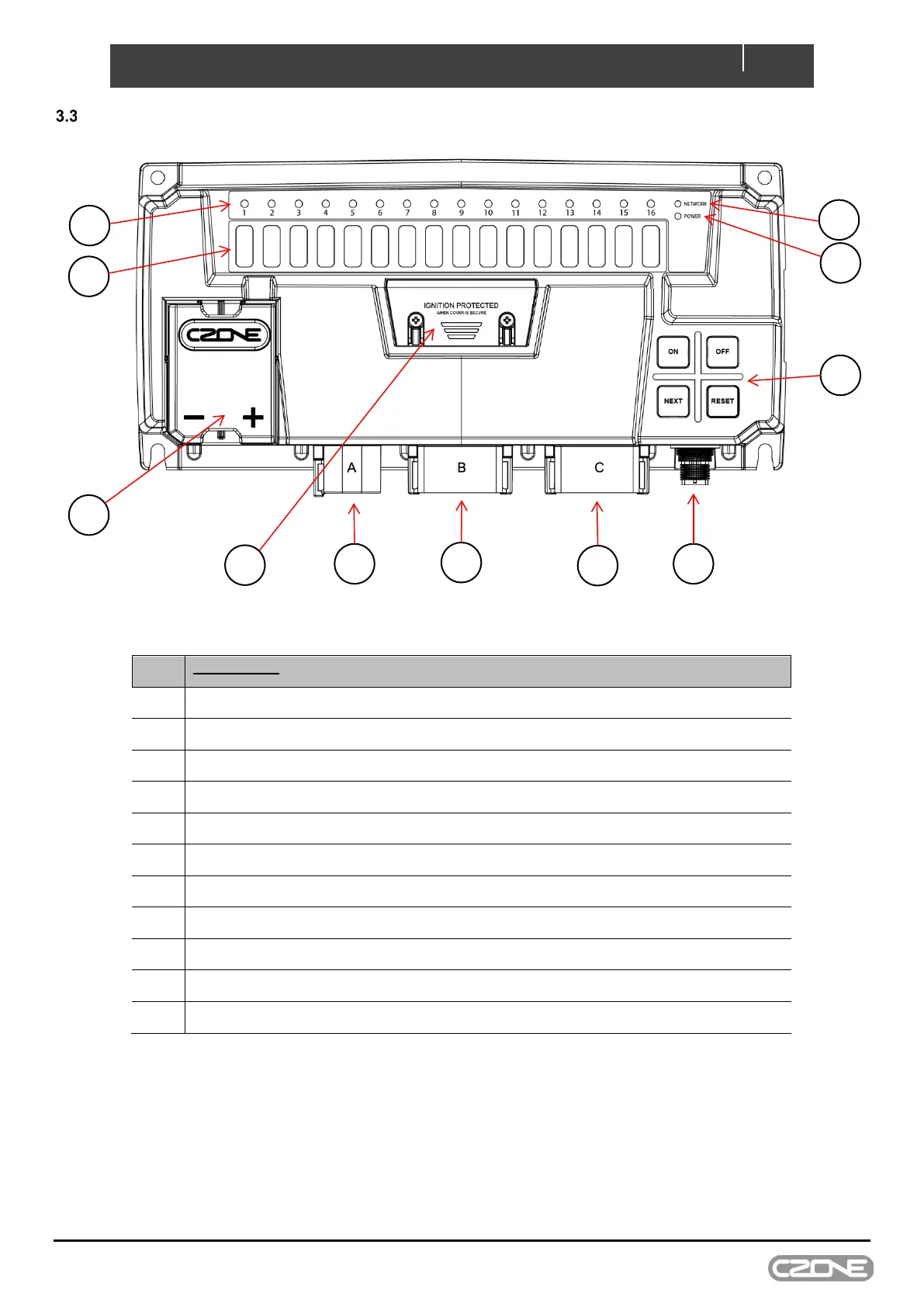

Figure 1. Product Overview
