D-Link AC2600 User Manual

45D-Link DAP-1860 User Manual
Section 3 - Conguration

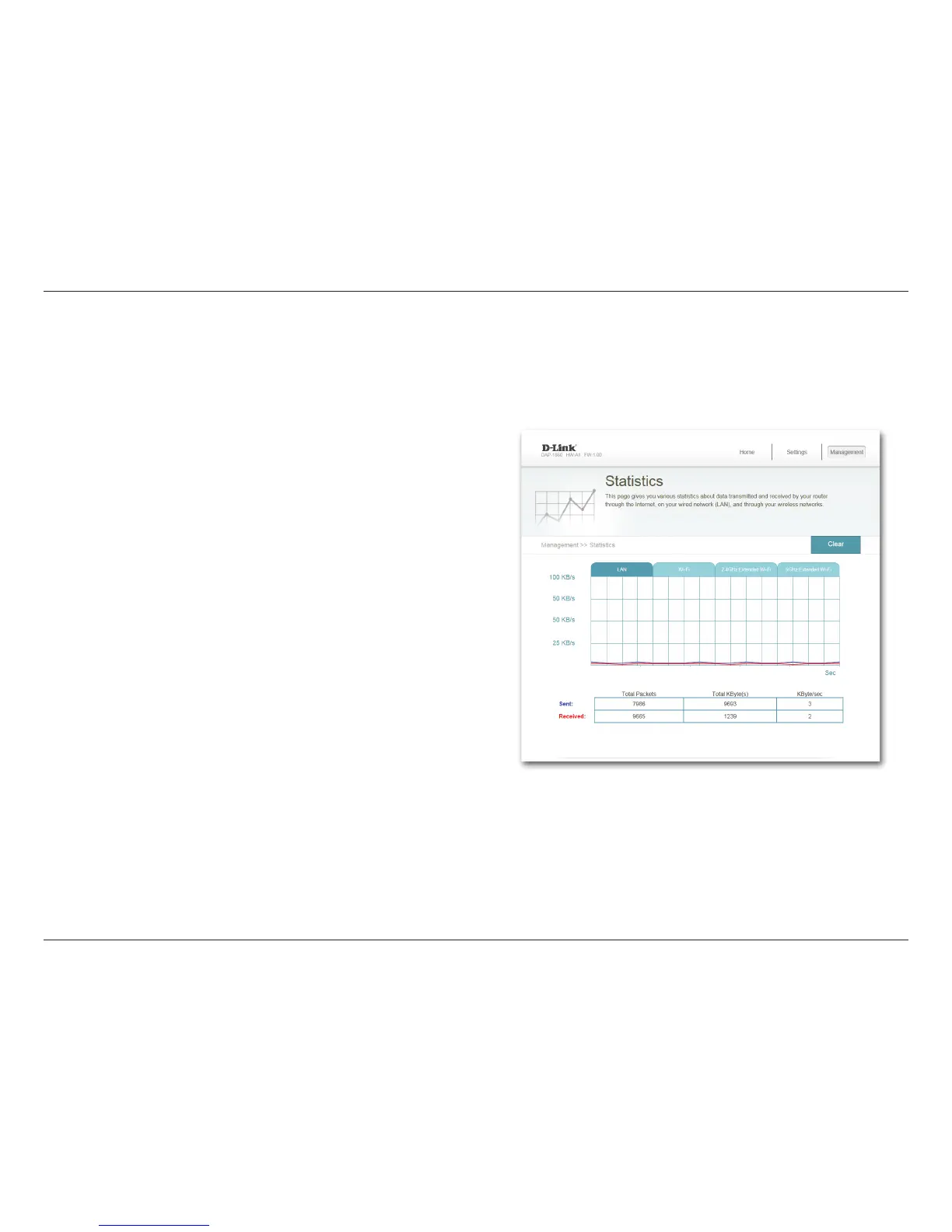

This page displays details about your wireless and network connections. To access this page, click the Management drop- down
menu at the top of the page, and select Statistics. Click Clear to reset the statistics.
Statistics
The Blue line indicates the upload speeds and the red line indicates the
download speeds.
The table displays the following in real-time:
• Total Packets
• Total Byte(s)
• Total Kbit(s)
• Kbits/sec
Statistics Tabs
Click on the each tab to see trac information about each of the DAP-1860’s
interfaces.

D-Link AC2600 Specifications

General

Wireless Standard	IEEE 802.11ac
Ethernet Ports	1 x Gigabit Ethernet
MU-MIMO	Yes
Product Type	Wi-Fi Range Extender
Beamforming Technology	Yes
Frequency Bands	2.4 GHz, 5 GHz
Antenna Type	External antennas
Security	WPA/WPA2
Data Transfer Rate	AC2600 (800 Mbps on 2.4 GHz + 1733 Mbps on 5 GHz)
Maximum Speed	1733 Mbps (5 GHz) + 800 Mbps (2.4 GHz)
