D-Link AC2600 User Manual

50D-Link DAP-1860 User Manual
Section 4 - Connecting a Wireless Client

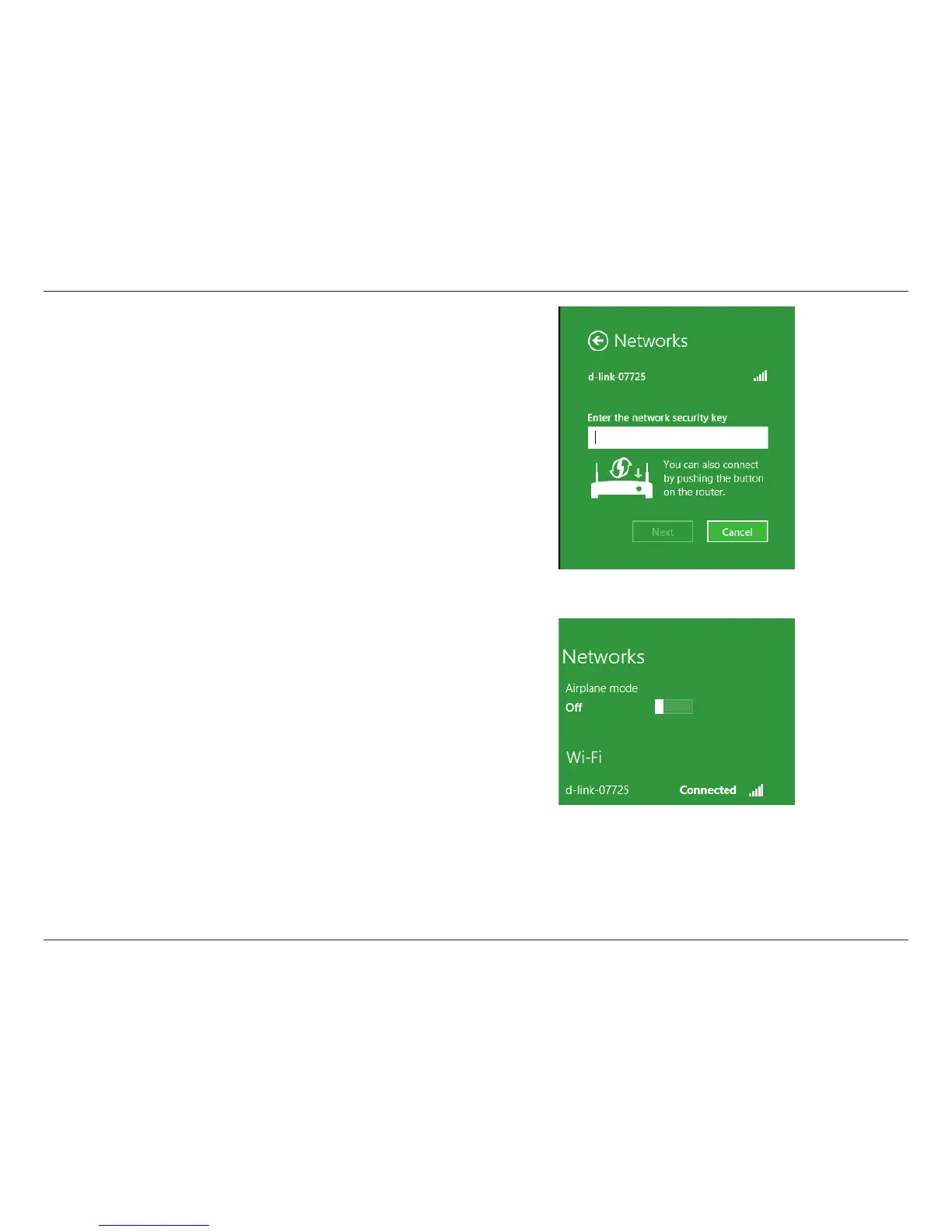

You will then be prompted to enter the network security key (Wi-Fi
password) for the wireless network. Enter the password into the box and
click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router,
you can also press the WPS button on your router at this point to enable
the WPS function.
When you have established a successful connection with a wireless
network, the word Connected will appear next to the name of the
network to which you are connected.

D-Link AC2600 Specifications

General

Wireless Standard	IEEE 802.11ac
Ethernet Ports	1 x Gigabit Ethernet
MU-MIMO	Yes
Product Type	Wi-Fi Range Extender
Beamforming Technology	Yes
Frequency Bands	2.4 GHz, 5 GHz
Antenna Type	External antennas
Security	WPA/WPA2
Data Transfer Rate	AC2600 (800 Mbps on 2.4 GHz + 1733 Mbps on 5 GHz)
Maximum Speed	1733 Mbps (5 GHz) + 800 Mbps (2.4 GHz)
