Section 2: Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-2310L
and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access
your camera from the www.mydlink.com website to manage and monitor your DCS-2310L.

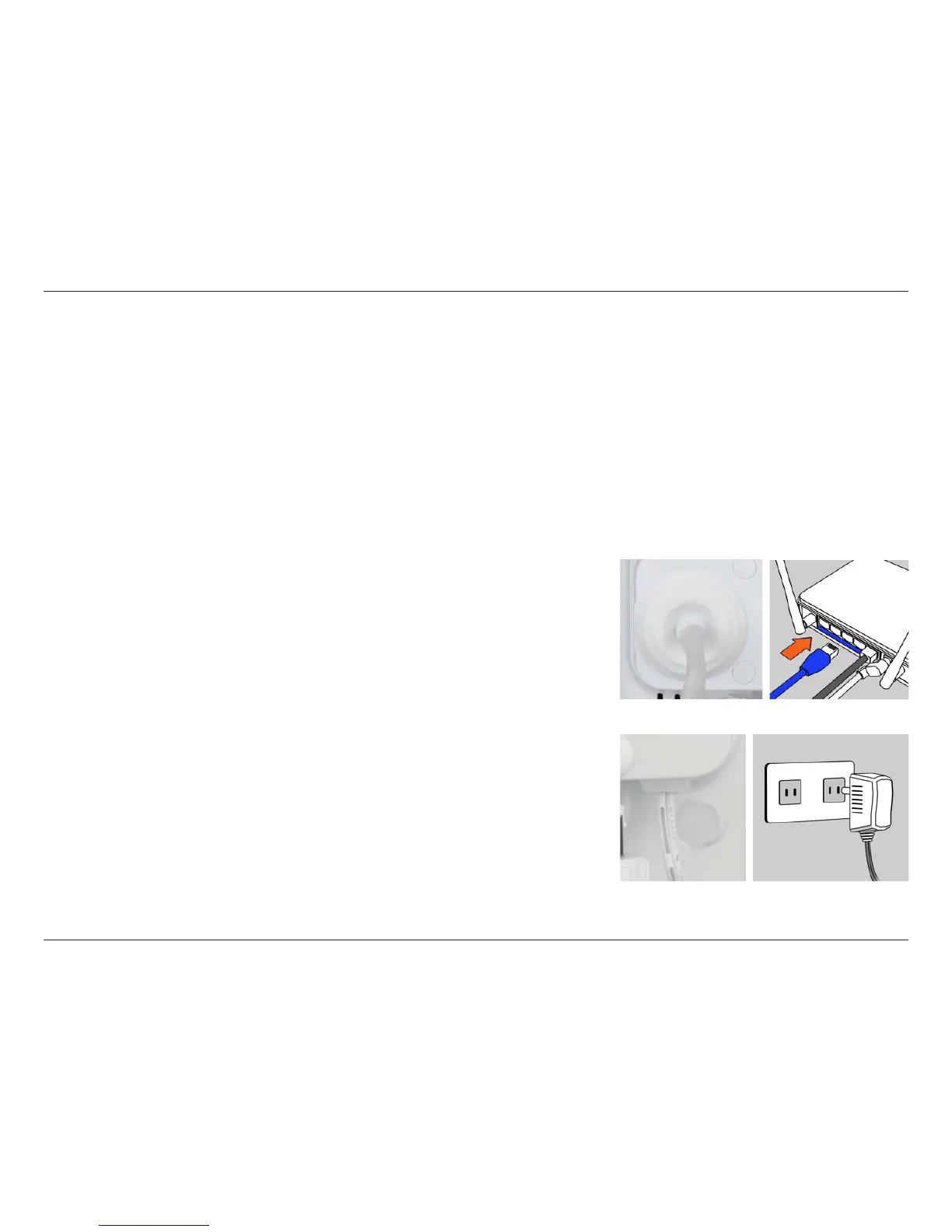

Connect the Ethernet Cable
Using the pre-attached Ethernet cable connect the free end to your network.
Note: To avoid damage to the weatherproof aspects of the camera, users are
advised not to remove the rear cable connection covering. To use a longer
ethernet cable or power cord install a coupling adaptor, or power extension strip.
Attach the External Power Supply
Attach the external power supply to your wall outlet or power strip. Please skip
this step if your camera is connected using PoE (Power over Ethernet).
Note: If you choose to take advantage of the Power over Ethernet feature you may
unplug the power cable. However, to avoid water ingress ensure the provided
rubber weatherproof plug is used to ll the gap. See "Removing the Power Cable"
on page 12 for further instructions.
Installation
Zero Conguration Setup

D-Link DCS-2310L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	3.45 mm
Video motion detection	Yes
Password protection type	Supervisor, User
Built-in HDD	No
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, LVD, FCC, C-Tick
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Box
Product color	Black, White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP65
Audio system	2-way
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, Samba, PPPoE, UPnP, RTP/RTSP/RTCP, QoS, CoS, IGMP
Power requirements	5V DC
Compatible operating systems	Windows 7 Windows Vista Windows XP MacOS X 10.5+
F-number (relative aperture)	2
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Minimum RAM	128 MB
Minimum processor	1.3GHz
AC input voltage	100-240 V
DC output current	1.2 A
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Interface	RJ-45
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	93 mm
Width	66 mm
Height	138.9 mm
Weight	235 g
