65D-Link DCS-2310L User Manual
Section 4: Conguration

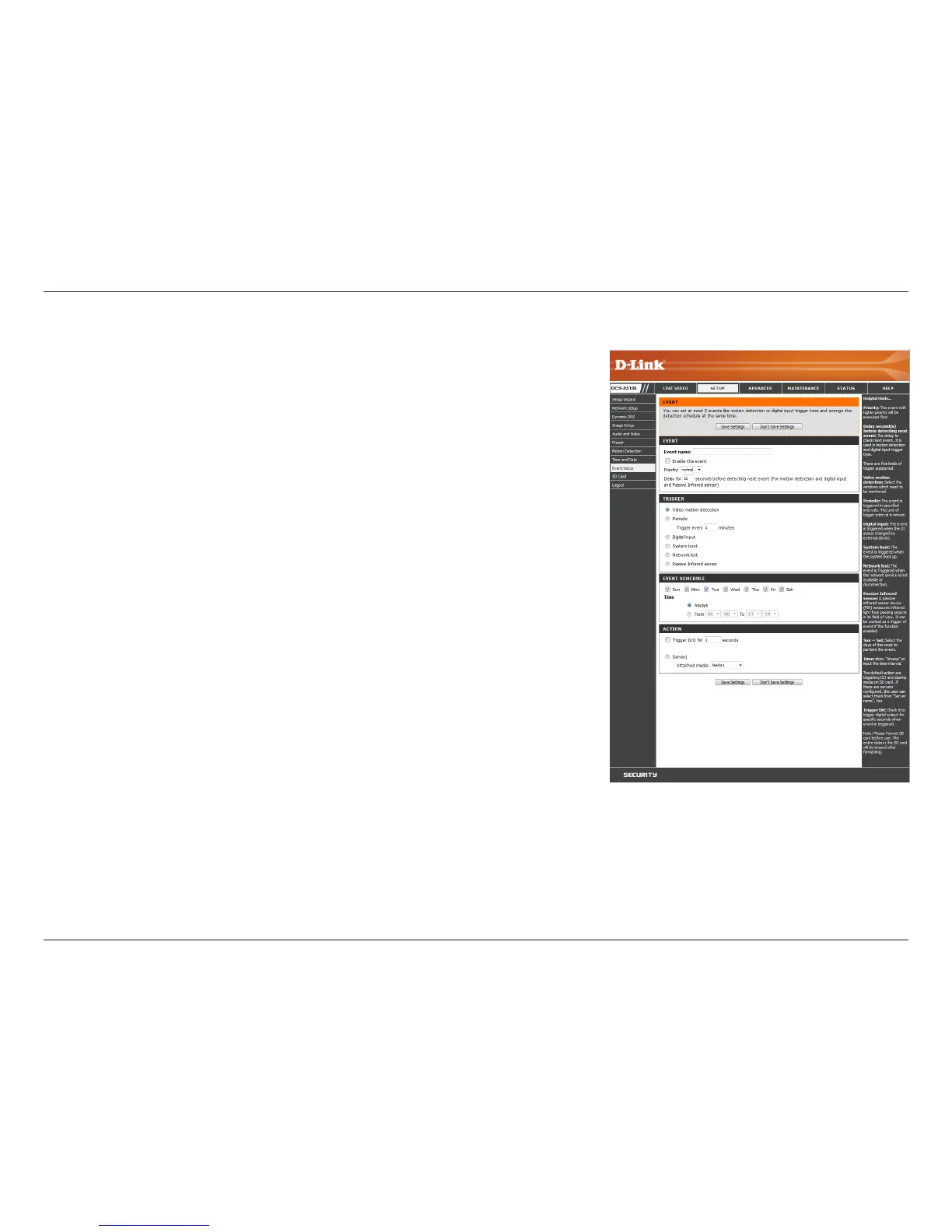

Add Event
Create and schedule up to 2 events with their own settings here. After making any changes,
click the Save Settings button to save your changes.
Event name:
Enable this event:
Priority:
Delay:
Trigger:
Video Motion Detection:
Periodic:
System Boot:
Network Lost:
Passive Infrared Sensor:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher
priority will be executed rst.
Select the delay time before checking the next event. It
is being used for both events of motion detection and
digital input trigger.
Specify the input type that triggers the event.
Motion is detected during live video monitoring. Select
the windows that need to be monitored.
The event is triggered in specied intervals. The trigger
interval unit is in minutes.
Triggers an event when the system boots up.
Triggers an event when the network connection is lost.
Triggers an event when the PIR sensor is activated by
moving infrared objects even in dark environment.

Other manuals for D-Link DCS-2310L

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DCS-2310L and is the answer not in the manual?

D-Link DCS-2310L Specifications

General IconGeneral
Maximum resolution1280 x 800 pixels
Supported video modes720p
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination0 lx
Sensor typeCMOS
Optical sensor size1/4 \
Optical zoom- x
Fixed focal length3.45 mm
Video motion detectionYes
Password protection typeSupervisor, User
Built-in HDDNo
Compatible memory cardsmicroSD (TransFlash), microSDHC
LED typeIR
Night vision distance5 m
TypeIP security camera
CertificationCE, LVD, FCC, C-Tick
Placement supportedOutdoor
Connectivity technologyWired
Form factorBox
Product colorBlack, White
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP65
Audio system2-way
Cabling technology10/100Base-T(X)
Supported network protocolsIPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, Samba, PPPoE, UPnP, RTP/RTSP/RTCP, QoS, CoS, IGMP
Power requirements5V DC
Compatible operating systemsWindows 7 Windows Vista Windows XP MacOS X 10.5+
F-number (relative aperture)2
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3af
Minimum RAM128 MB
Minimum processor1.3GHz
AC input voltage100-240 V
DC output current1.2 A
Power source typePoE
AC input frequency50 - 60 Hz
Power consumption (typical)5.3 W
InterfaceRJ-45
Cables includedLAN (RJ-45)
Sustainability certificatesRoHS
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-25 - 50 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)20 - 80 %
Weight and Dimensions IconWeight and Dimensions
Depth93 mm
Width66 mm
Height138.9 mm
Weight235 g
