Section 4: Conguration
Image Setup

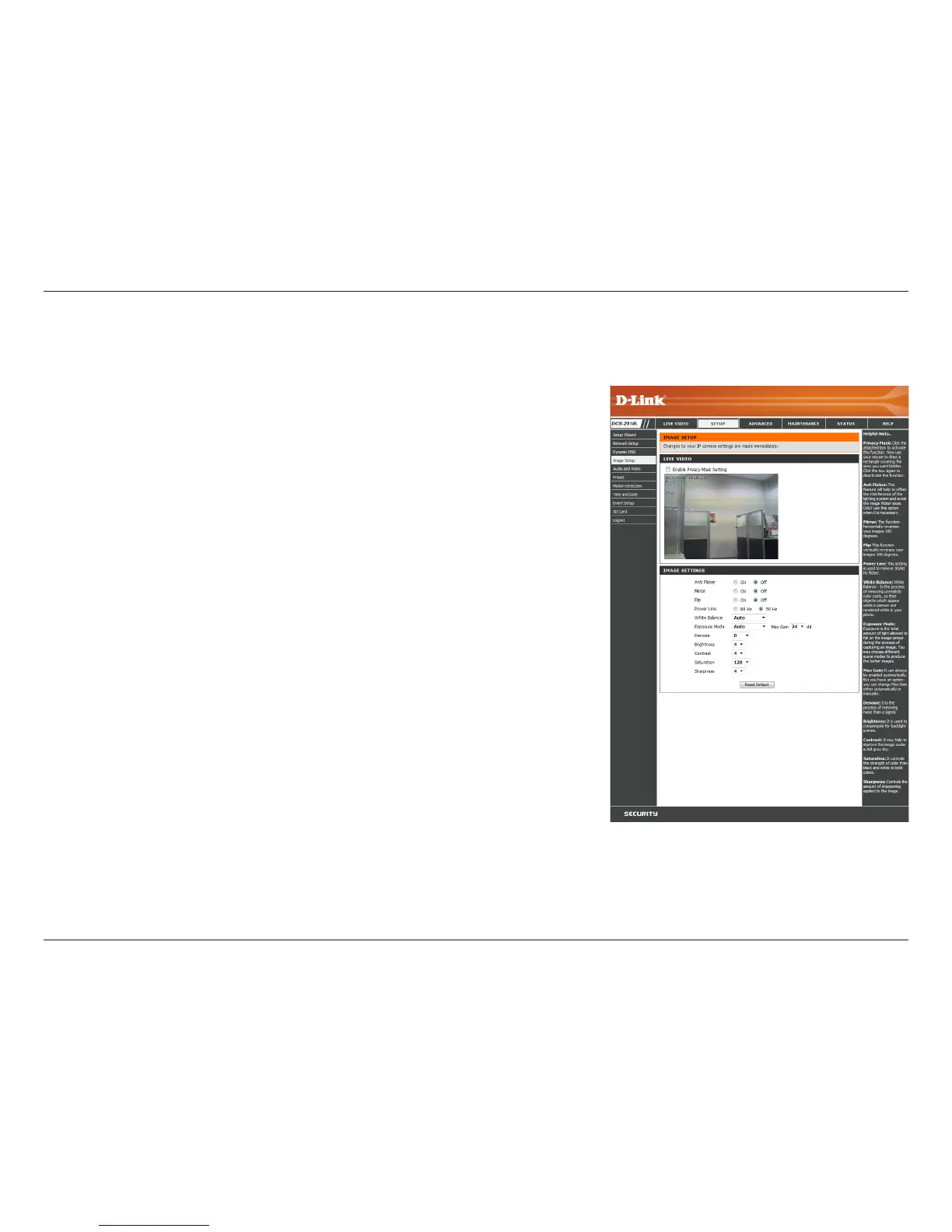

In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
White Balance:
The Privacy Mask setting allows you to specify up to 3
rectangular areas on the camera's image to be blocked/
excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right-clicking on the
camera image brings up the following menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on,
you may want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid
interference or distortion.
Use the drop-down box to change white balance settings
to help balance colors for dierent environments. You
can choose from Auto, Outdoor, Indoor, Fluorescent,
and Push Hold.

D-Link DCS-2310L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	3.45 mm
Video motion detection	Yes
Password protection type	Supervisor, User
Built-in HDD	No
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, LVD, FCC, C-Tick
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Box
Product color	Black, White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP65
Audio system	2-way
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, Samba, PPPoE, UPnP, RTP/RTSP/RTCP, QoS, CoS, IGMP
Power requirements	5V DC
Compatible operating systems	Windows 7 Windows Vista Windows XP MacOS X 10.5+
F-number (relative aperture)	2
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Minimum RAM	128 MB
Minimum processor	1.3GHz
AC input voltage	100-240 V
DC output current	1.2 A
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Interface	RJ-45
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	93 mm
Width	66 mm
Height	138.9 mm
Weight	235 g
