D-Link DCS-2310L User Manual

40D-Link DCS-2310L User Manual
Section 4: Conguration

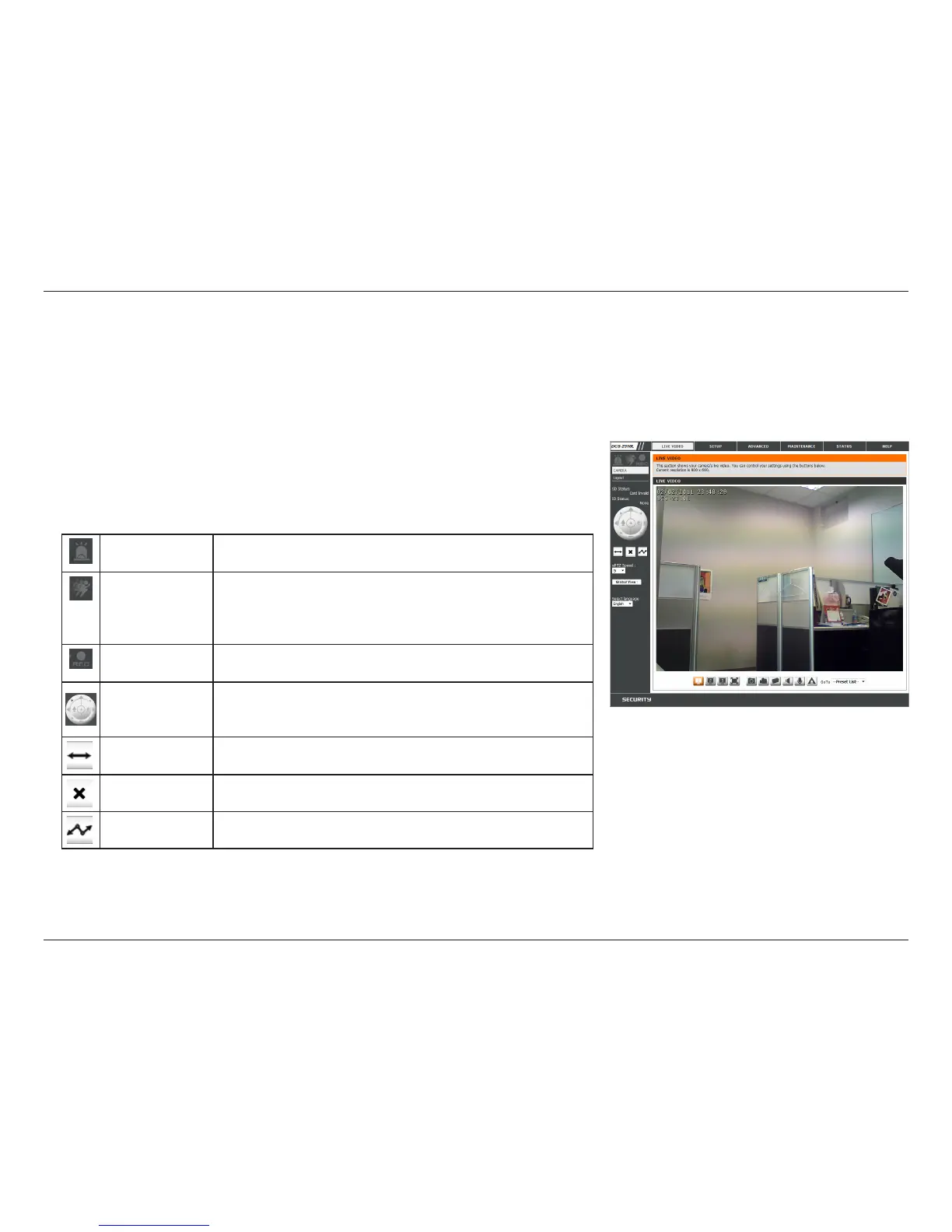

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input
Indicator
This indicator will change color when a digital input signal is
detected.
Motion Trigger
Indicator
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Control Pad
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if one
has been dened.
Auto Pan Starts the automatic panning function. The ROI will pan from
back and forth within the FOV
Stop Stops the camera ePTZ motion
Preset Path Starts the camera's motion along the predened path
You may select a value between 0 and 64. 0 is the slowest and 64 is the
fastest.
ePTZ Speed:
This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has been
connected.
SD Status:
IO Status:

D-Link DCS-2310L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	3.45 mm
Video motion detection	Yes
Password protection type	Supervisor, User
Built-in HDD	No
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, LVD, FCC, C-Tick
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Box
Product color	Black, White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP65
Audio system	2-way
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, Samba, PPPoE, UPnP, RTP/RTSP/RTCP, QoS, CoS, IGMP
Power requirements	5V DC
Compatible operating systems	Windows 7 Windows Vista Windows XP MacOS X 10.5+
F-number (relative aperture)	2
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Minimum RAM	128 MB
Minimum processor	1.3GHz
AC input voltage	100-240 V
DC output current	1.2 A
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Interface	RJ-45
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	93 mm
Width	66 mm
Height	138.9 mm
Weight	235 g
