9D-Link DCS-2310L User Manual
Section 1: Product Overview

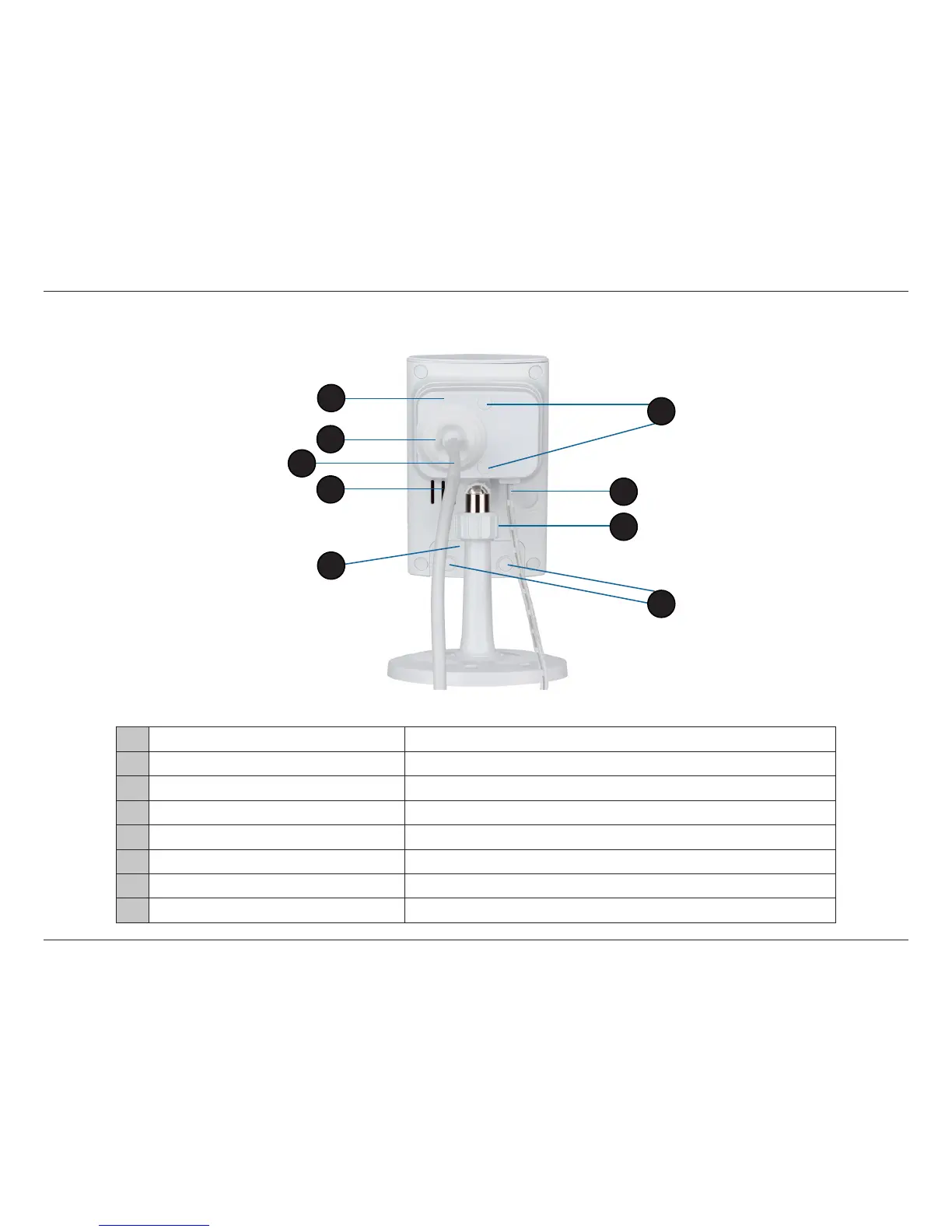

Rear: External
1 Weatherproof Cover Weatherproof protective panel.
2 Protective Cable Cover Weatherproof cable connection cover.
3 Ethernet Cable RJ45 Ethernet cable to connect to your network.
4 Power Cable Connected to the included DC 5 V power adapter.
5 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position.
6 Speaker Audio output.
7 Weatherproof Cover Weatherproof cover for the MicroSD Card slot and reset button.
8 Weatherproof Screw Covering Weatherproof protective covering for enclosure screws.
1
3
4
5
2
7
6
8
8
