D-Link DCS-2310L User Manual

50D-Link DCS-2310L User Manual

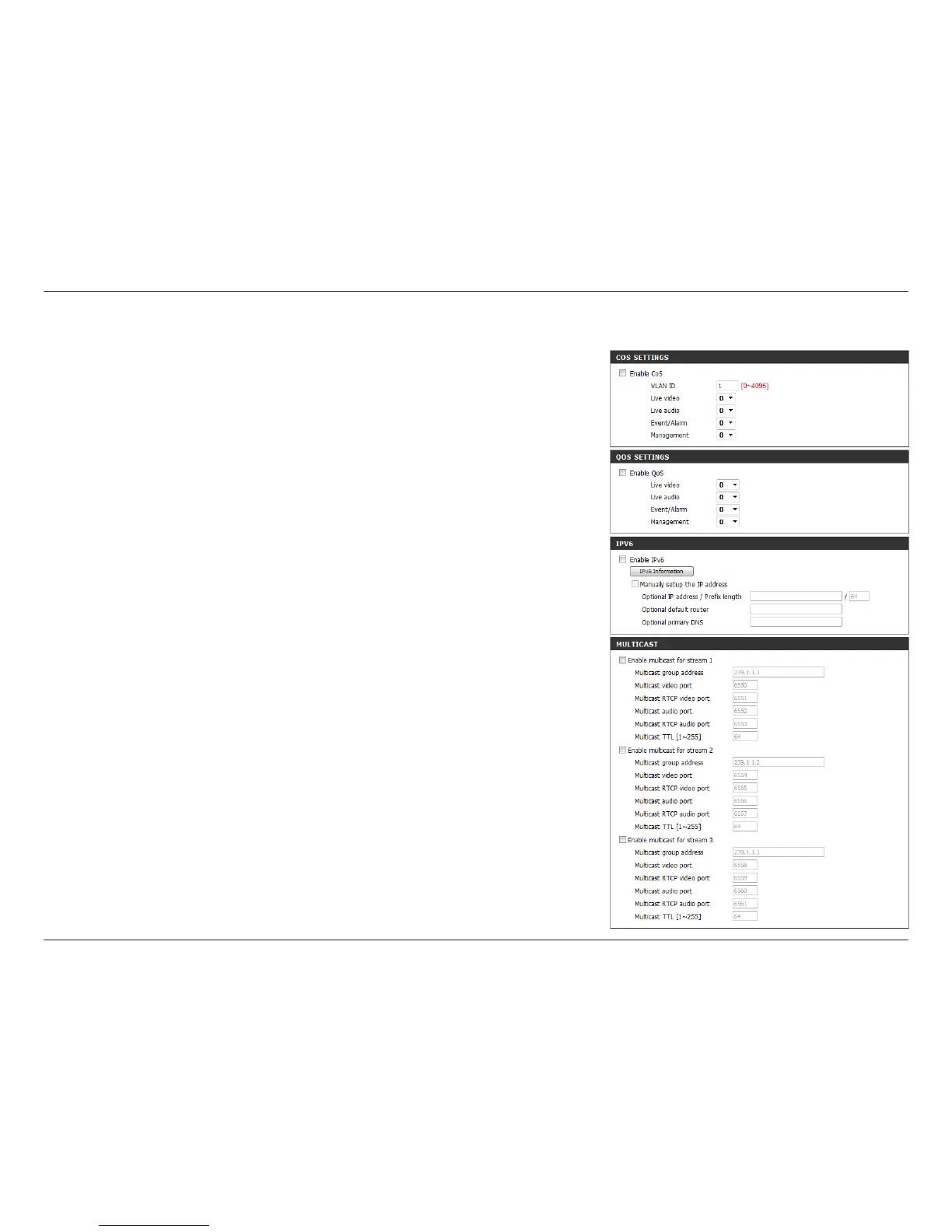

Section 4: Conguration
Enable CoS:
Enable QoS:
Enable IPV6:
Enable Multicast for stream
Enabling the Class of Service setting implements a
best-eort policy without making any bandwidth
reservations.
Enabling QoS allows you to specify a trac priority
policy to ensure a consistent Quality of Service during
busy periods. If the Network Camera is connected to a
router that itself implements QoS, the router's settings
will override the QoS settings of the camera.
Enable the IPV6 setting to use the IPV6 protocol.
Enabling the option allows you to manually set up
the address, specify an optional IP address, specify an
optional router and an optional primary DNS.
The DCS-2310L allows you to multicast each of the
available streams via group address and specify the TTL
value for each stream. Enter the port and TTL settings
you wish to use if you do not want to use the defaults.

D-Link DCS-2310L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	176 x 144, 320 x 240, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	3.45 mm
Video motion detection	Yes
Password protection type	Supervisor, User
Built-in HDD	No
Compatible memory cards	microSD (TransFlash), microSDHC
LED type	IR
Night vision distance	5 m
Type	IP security camera
Certification	CE, LVD, FCC, C-Tick
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Box
Product color	Black, White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP65
Audio system	2-way
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP/HTTPS, Samba, PPPoE, UPnP, RTP/RTSP/RTCP, QoS, CoS, IGMP
Power requirements	5V DC
Compatible operating systems	Windows 7 Windows Vista Windows XP MacOS X 10.5+
F-number (relative aperture)	2
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Minimum RAM	128 MB
Minimum processor	1.3GHz
AC input voltage	100-240 V
DC output current	1.2 A
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Interface	RJ-45
Cables included	LAN (RJ-45)
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	93 mm
Width	66 mm
Height	138.9 mm
Weight	235 g
