Section 3: Conguration

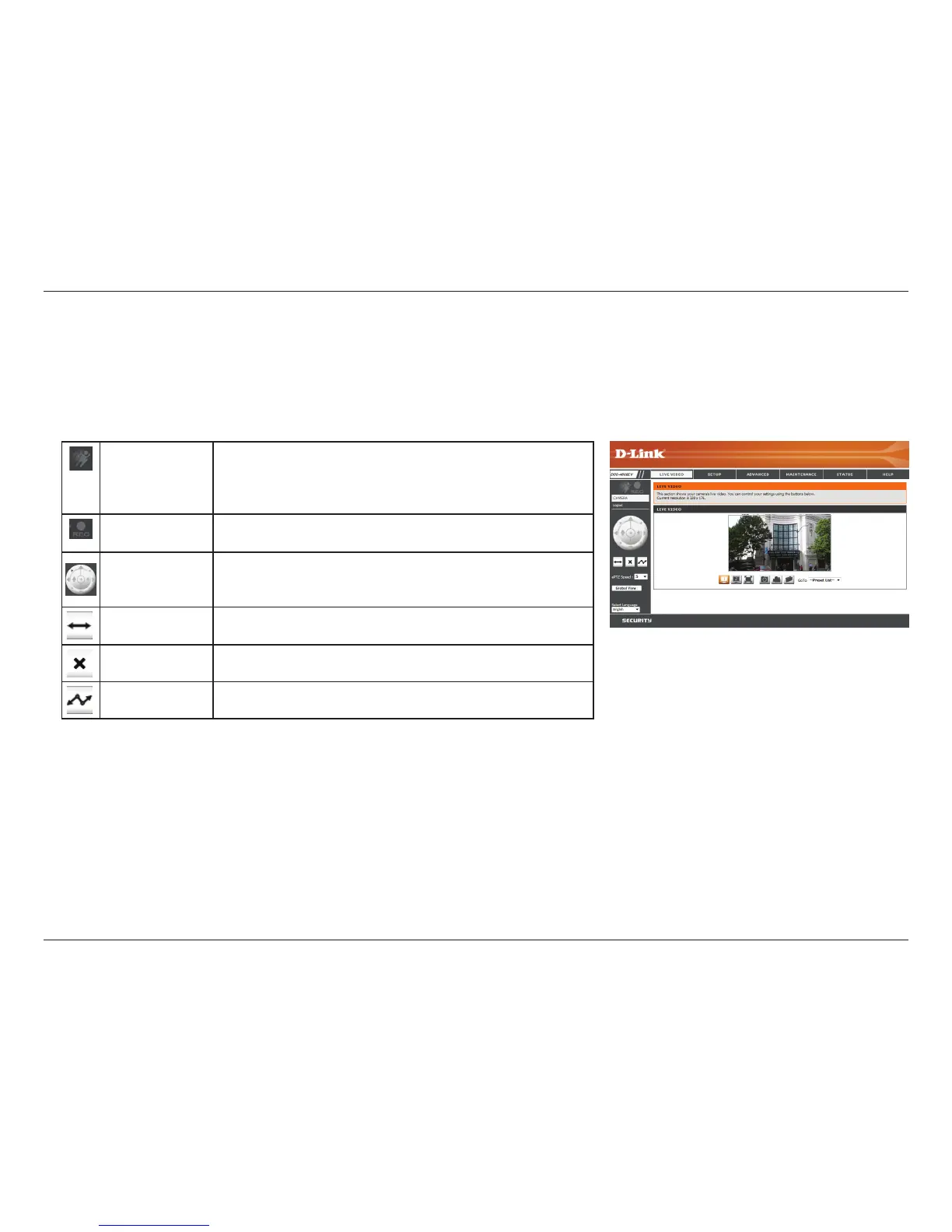

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Motion Trigger
Indicator
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Control Pad
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if one
has been dened.
Auto Pan Starts the automatic panning function. The ROI will pan from
back and forth within the FOV.
Stop Stops the camera ePTZ motion.
Preset Path Starts the camera's motion along the predened path.

D-Link DCS-4602EV Specifications

General

Type	IP security camera
PTZ control	No
Certification	CE (Class A) CE LVD FCC (Class A) C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1400 x 1080, 1920 x 1080 (HD 1080)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	1.8
Fixed focal length	2.8 mm
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Compliance industry standards	PoE IEEE 802.3af
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
DC output current	1.5 A
DC output voltage	+12V
Power source type	PoE
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1385 mm
Pallet height (sea)	1885 mm
Pallet gross weight (air)	397400 g
Pallet gross weight (sea)	538000 g
Quantity per pallet (air)	400 pc(s)
Quantity per pallet (sea)	560 pc(s)
Shipping (inner) case width	297 mm
Shipping (inner) case height	250 mm
Shipping (inner) case length	502 mm
Shipping (inner) case weight	9250 g
Shipping (inner) case net weight	8750 g
Number of cartons per pallet (air)	40 pc(s)
Number of cartons per pallet (sea)	56 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Width	110.9 mm
Height	78.7 mm
Weight	525 g
Diameter	110 mm
Package depth	208 mm
Package width	137 mm
Package height	95 mm
Package weight	870 g
