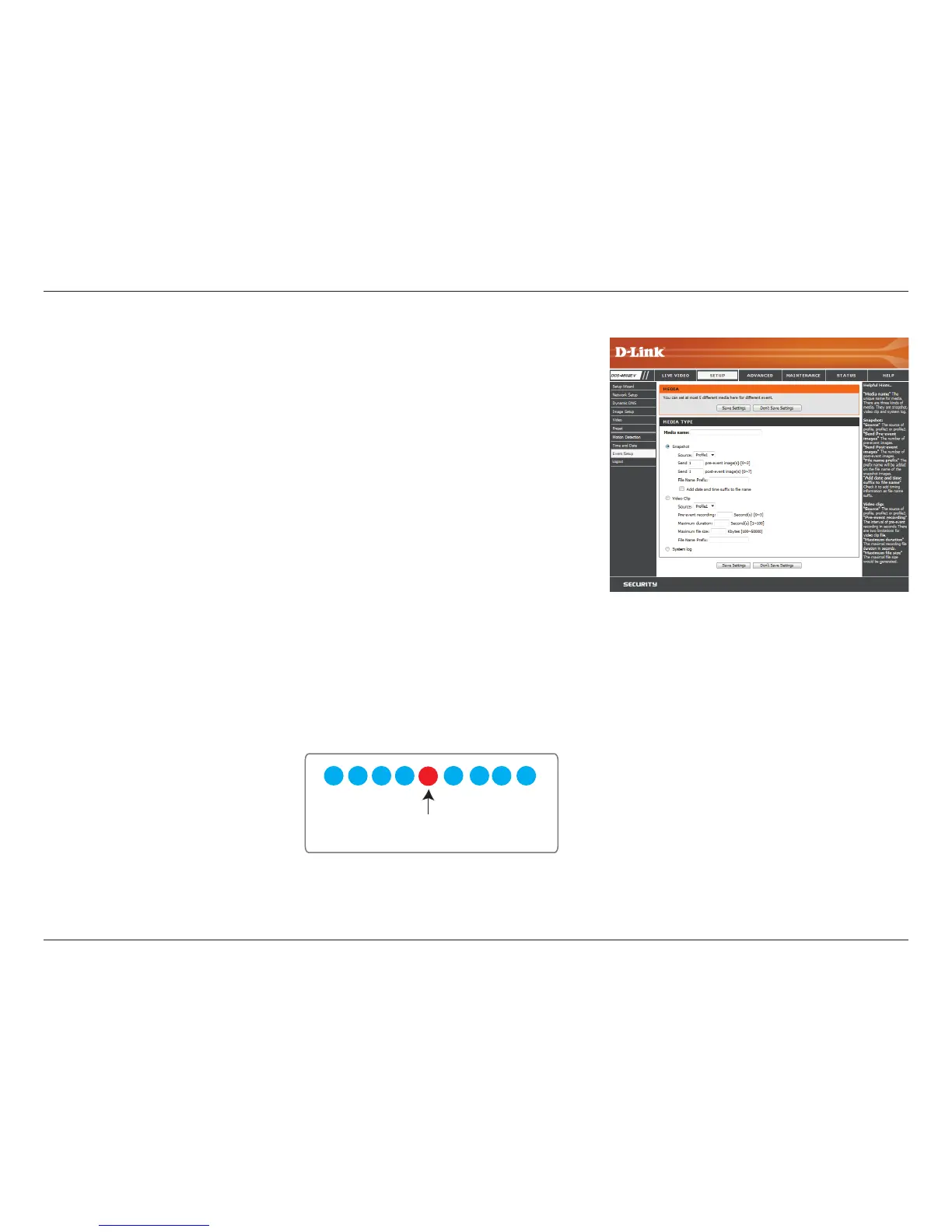

Section 3: Conguration
Add Media
Media Name:
Snapshot:
Source:
Send pre-event image(s) [0~3]:
Send post-event image(s) [0~7]:
Enter a unique name for media type you want to create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source. Refer to
"Video" on page 33 for more information on video proles.
Set the number of pre-event images to take. Pre-event
images are images taken before the main event snapshot
is taken.
Set the number of post-event images to take. Post-event
images are images taken after the main event snapshot
is taken. You can set up to 7 post-event images to be
taken.
For example:
If both the Send pre-event images and Send
post-event images are set to four, a total of 9
images are generated after a trigger is activated.
There are three types of media: Snapshot, Video Clip, and System Log. After making any
changes, click the Save Settings button to save your changes.
1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.
The moment the
trigger is activated.

D-Link DCS-4602EV Specifications

General

Type	IP security camera
PTZ control	No
Certification	CE (Class A) CE LVD FCC (Class A) C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1400 x 1080, 1920 x 1080 (HD 1080)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	1.8
Fixed focal length	2.8 mm
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Compliance industry standards	PoE IEEE 802.3af
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
DC output current	1.5 A
DC output voltage	+12V
Power source type	PoE
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1385 mm
Pallet height (sea)	1885 mm
Pallet gross weight (air)	397400 g
Pallet gross weight (sea)	538000 g
Quantity per pallet (air)	400 pc(s)
Quantity per pallet (sea)	560 pc(s)
Shipping (inner) case width	297 mm
Shipping (inner) case height	250 mm
Shipping (inner) case length	502 mm
Shipping (inner) case weight	9250 g
Shipping (inner) case net weight	8750 g
Number of cartons per pallet (air)	40 pc(s)
Number of cartons per pallet (sea)	56 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Width	110.9 mm
Height	78.7 mm
Weight	525 g
Diameter	110 mm
Package depth	208 mm
Package width	137 mm
Package height	95 mm
Package weight	870 g
