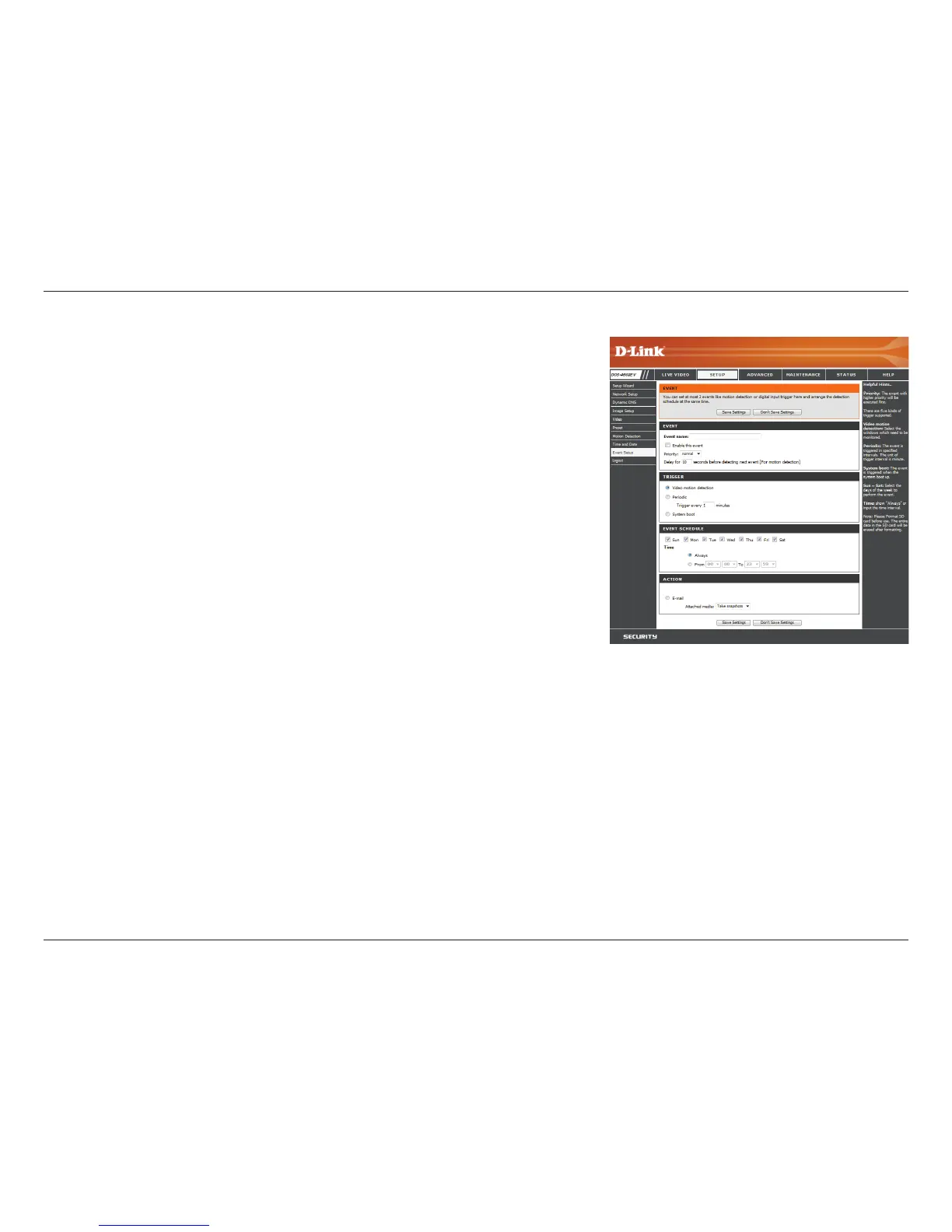

43D-Link DCS-4602EV User Manual
Section 3: Conguration
Add Event
Create and schedule up to 3 events with their own settings here. After making any changes,
click the Save Settings button to save your changes.
Event name:
Enable this event:
Priority:
Delay:
Trigger:
Video Motion Detection:
Periodic:
System Boot:
Time:
Action:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher
priority will be executed rst.
Select the delay time before checking the next event. It
is being used for both events of motion detection and
digital input trigger.
Specify the input type that triggers the event.
Motion is detected during live video monitoring. Select
the windows that need to be monitored.
The event is triggered in specied intervals. The trigger
interval unit is in minutes.
Triggers an event when the system boots up.
Select Always or enter the time interval to monitor for
the specied kind of event.
If you have created Server and Media entries, you will
see them appear here. Select which Server you want to
send to and which Media you want the camera to send.
