Section 3: Conguration
Image Setup

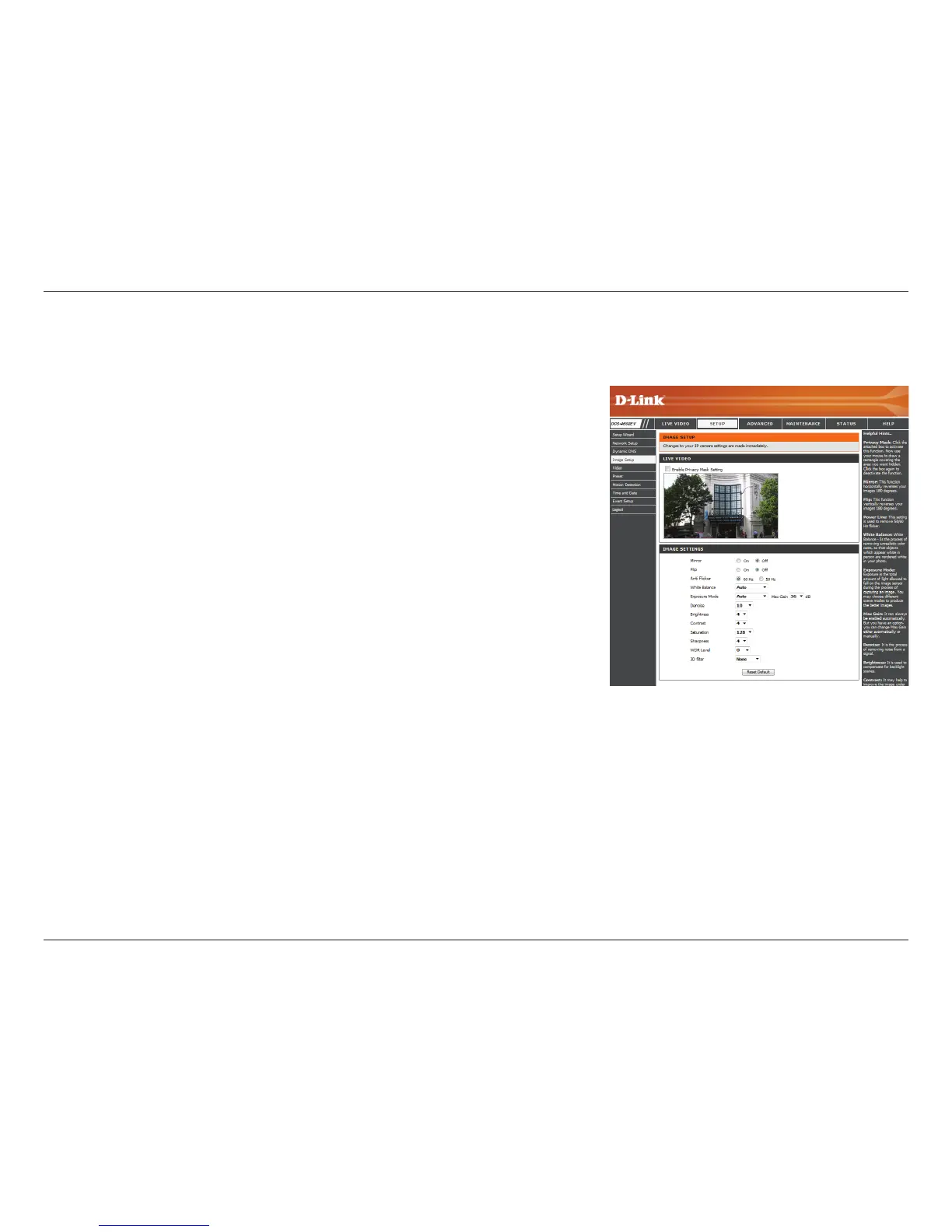

In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy Mask:
Mirror:
Flip:
Anti Flicker:
White Balance:
The Privacy Mask setting allows you to specify up to 3
rectangular areas on the camera's image to be blocked/
excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking on the
camera image brings up the following menu options:
 Disable All: Disables all mask areas
 Enable All: Enables all mask areas
 Reset All: Clears all mask areas.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on,
you may want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid
interference or distortion.
Use the drop-down box to change white balance settings
to help balance colors for dierent environments. You
can choose from Auto, Outdoor, Indoor, Fluorescent,
and Push Hold.

D-Link DCS-4602EV Specifications

General

Type	IP security camera
PTZ control	No
Certification	CE (Class A) CE LVD FCC (Class A) C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1400 x 1080, 1920 x 1080 (HD 1080)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	1.8
Fixed focal length	2.8 mm
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Compliance industry standards	PoE IEEE 802.3af
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
DC output current	1.5 A
DC output voltage	+12V
Power source type	PoE
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1385 mm
Pallet height (sea)	1885 mm
Pallet gross weight (air)	397400 g
Pallet gross weight (sea)	538000 g
Quantity per pallet (air)	400 pc(s)
Quantity per pallet (sea)	560 pc(s)
Shipping (inner) case width	297 mm
Shipping (inner) case height	250 mm
Shipping (inner) case length	502 mm
Shipping (inner) case weight	9250 g
Shipping (inner) case net weight	8750 g
Number of cartons per pallet (air)	40 pc(s)
Number of cartons per pallet (sea)	56 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Width	110.9 mm
Height	78.7 mm
Weight	525 g
Diameter	110 mm
Package depth	208 mm
Package width	137 mm
Package height	95 mm
Package weight	870 g
