D-Link DCS-933L User Manual

33D-Link DCS-933L User Manual 33
Section 3 - Conguration

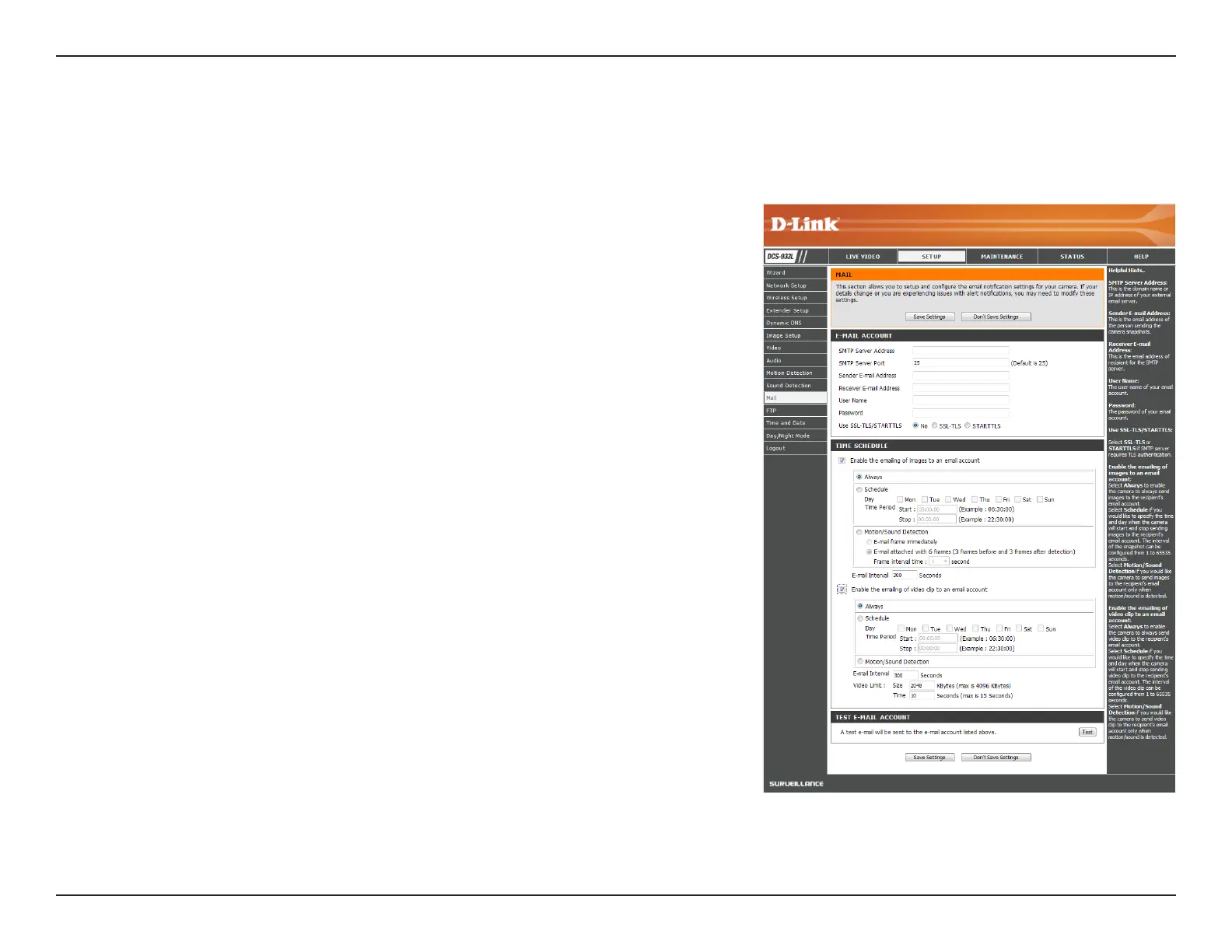

Mail
SMTP Server
Address:
Sender e-mail
Address:
Receiver e-mail
Address:
User Name:
Password:
This is the domain name or IP address of your external e-mail server.
This is the e-mail address listed as the sender for your notication e-mails.
This is the e-mail address that your notication e-mails will be sent to.
If the SMTP server uses authentication, enter your user name.
If the SMTP server uses authentication, enter your password.
This section allows you to congure your camera to send snapshots and video clips to an e-mail address. If you are not sure
what settings to use, check with your e-mail service provider.
Forexample,ifyouwanttouseGmailwithSSL-TLSfore-mailnotications,
you can follow the setup procedure as below:
Step 1-Enter“smtp.gmail.com”inSMTPServerAddress.
Step 2 - Change the SMTP server port number from 25 to 465.
Step 3-Enteryourgmaile-mailaddressinSenderE-mailAddress.
Step 4-Enterthedestinatione-mailaddressinReceiverE-mailAddress.
Step 5-EntertheusernamerequiredtoaccesstheSMTPserver.
Step 6-EnterthepasswordrequiredtoaccesstheSMTPserver.
Step 7 - Select SSL-TLS and then click Save Settings.
Step 8 - Click the Test button to send a test e-mail will be sent to the e-mail
account listed above.
Note: You can also use STARTTLS, which will use SMTP server port number
587.
Note: If you want to use a Yahoo SMTP server, the SMTP server address will be dierent between each registered region, and only SMTP
port 465 is supported for SSL-TLS.

D-Link DCS-933L Specifications

General

Total megapixels	0.3 MP
Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	160 x 112, 320 x 240
Camera shutter type	Electronic
Camera shutter speed	1/15 - 1/15000 s
Minimum illumination	0 lx
Field of view (FOV) angle	54.9 °
Sensor type	CMOS
Optical sensor size	1/5 \
Digital zoom	4 x
Optical zoom	0 x
Zoom capability	Yes
Fixed focal length	3.15 mm
Built-in HDD	No
LED type	IR
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk
Product color	White
Housing material	Plastic
Bundled software	D-ViewCam
Browser supported	Internet Explorer 7
Dimensions (WxDxH)	80 x 80 x 115 mm
F-number (relative aperture)	2.8
Minimum system requirements	- Microsoft Windows 7 / Vista / XP - Internet Explorer 7 or higher - standard TCP/IP
Interface	WLAN
RS-422 ports	0
Ethernet LAN (RJ-45) ports	1
Audio system	1-way
Audio formats supported	PCM
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP server, PPPoE, UPnP port forwarding, LLTD
DC output voltage	+5V
Power consumption (typical)	4 W
Storage temperature (T-T)	-20 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	2095 mm
Pallet gross weight (air)	317600 g
Quantity per pallet (air)	600 pc(s)
Shipping (inner) case width	173 mm
Shipping (inner) case height	196 mm
Shipping (inner) case length	509 mm
Shipping (inner) case weight	2500 g
Shipping (inner) case net weight	1050 g
Number of cartons per pallet (air)	120 pc(s)
Harmonized System (HS) code	85258900
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Width	80 mm
Height	115 mm
Weight	96.2 g
Package depth	160 mm
Package width	152 mm
Package height	95 mm
Package weight	290 g
