20
Setup Menu
When the main page appears, find the Setup menu in the left side of the
screen (Figure 16). Click on the setup item that you want to configure. There
are fifteen options: Port Settings, VLAN Settings, Trunk Setting, Mirror
Setting, QoS Setting, Spanning Tree Setting, SNMP Setting, Jumbo Frame
Setting, Device Status, Statistic, System Settings, Trap Setting, Password
Setting, Backup Setting and Reset Setting as shown in the Main Menu screen.

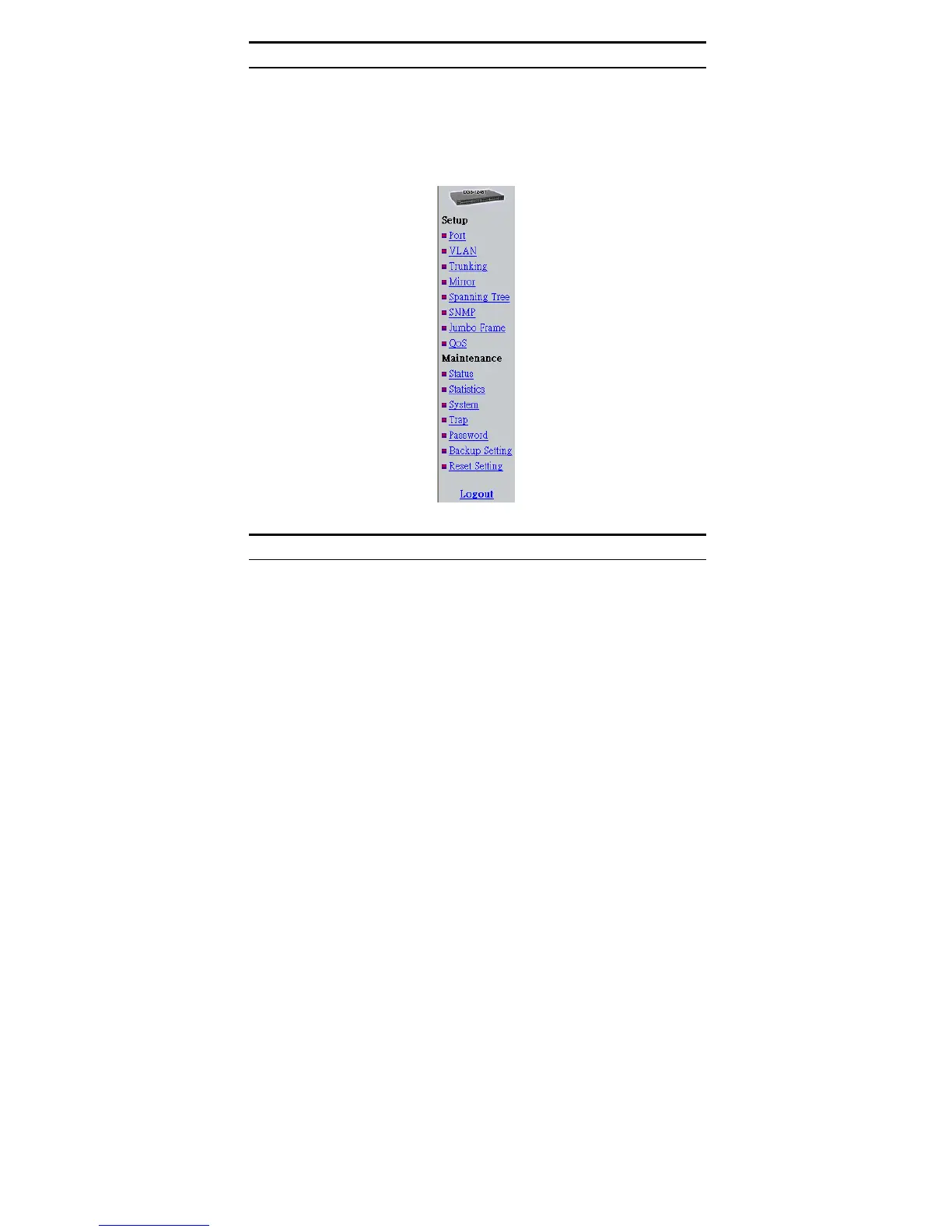

Figure 16. Setup menu
Configuring Setup Setting
Find that there are eight items, including Port Settings, VLAN Settings,
Trunk Settings, Mirror Settings, QoS Setting, Spanning Tree Setting, SNMP
Setting and Jumbo Frame Setting in Setup menu.
