To change the port setting, click on the ID parameter to enter the selected port
to configure its Speed/Disable and Flow control.

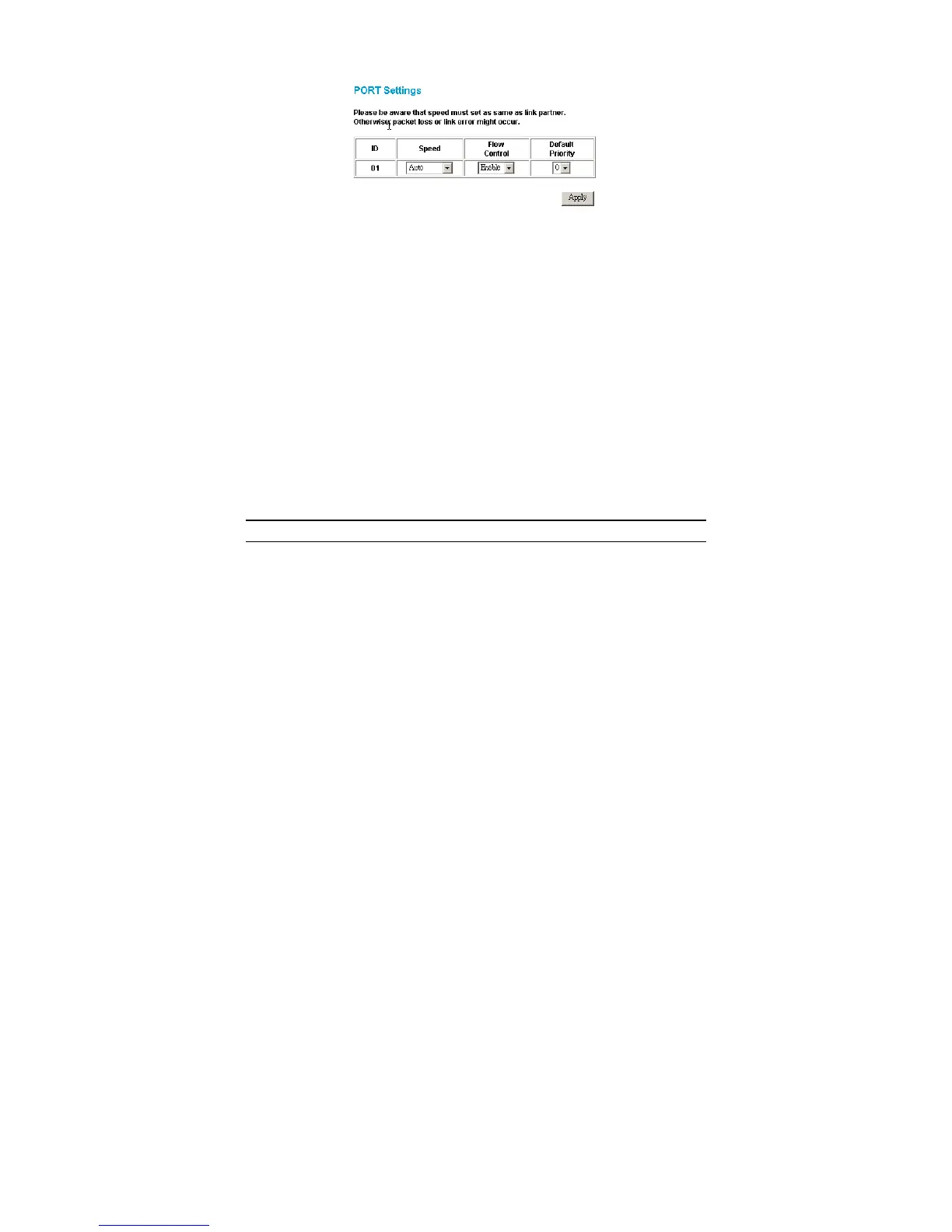

Figure 18. Port Setting
Speed/Disable:
This setting has six modes—100M Full, 100M Half, 10M Full, 10M Half,
Auto and Disable—for speed or port disable selections.
Flow Control:
This setting determines whether or not the Switch will be handling flow
control. Set Flow Control to Enable for avoiding data transfer overflow. If it
is set to Disable, there is either no flow control or other hardware/software
management.
When the port is set to forced mode, the flow control will automatically be set
to Disable.
Default Priority:
The Default Priority is specific the 802.1P QoS priority level to related port,
all of the received data packet will follow the Default Priority level
forwarding data packet to other port.
VLAN Settings (Virtual Local Area Network)
A VLAN is a collection of switch ports that make up a single broadcast
domain. You can configure a VLAN for a single switch, or for multiple
switches. When you create a VLAN, you can control traffic flow and ease the
administration of moves, adds, and changes on the network, by eliminating
the need to change physical cabling.
On VLAN settings, there are two main settings, VID Table Setting, Port
VLAN Setting, and Port Egress Setting.
